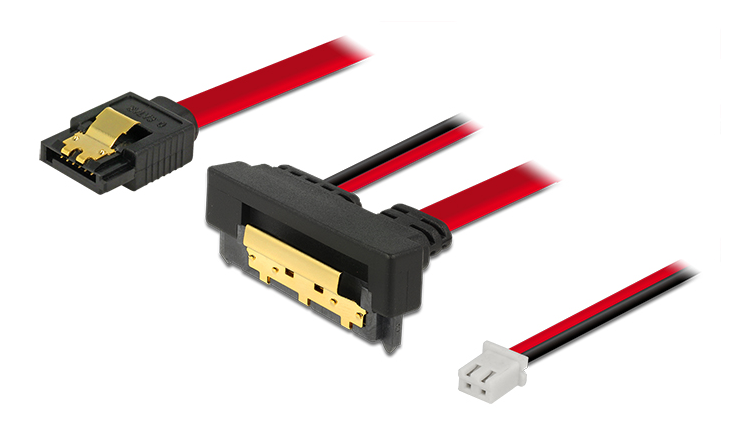

SATA cable + 2-pin power female, red

DeLOCK SATA cable, SATA 7-pin + 2-pin power female - SATA 22-pin downwards angled, 0.3m, red

This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA 7 pin port and a free 2 pin power interface of the motherboard, as available e.g. on the Banana Pi. The metal clips on the SATA receptacles ensure that the cable reliably clicks into place.

Specification
• Connectors:
  1 x SATA 6 Gb/s 7 pin receptacle + 1 x 2 pin power female >
  1 x SATA 6 Gb/s 22 pin receptacle downwards angled
• Pitch: 2.50 mm
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Voltage: 5 V
• Cable gauge:
  26 AWG data line
  20 AWG power line
• Applicable e.g. with Banana Pi
• Length incl. connectors: ca. 30 cm

System requirements
• A free SATA 7 pin interface
• One free 2 pin power plug

Package content
• SATA cable
