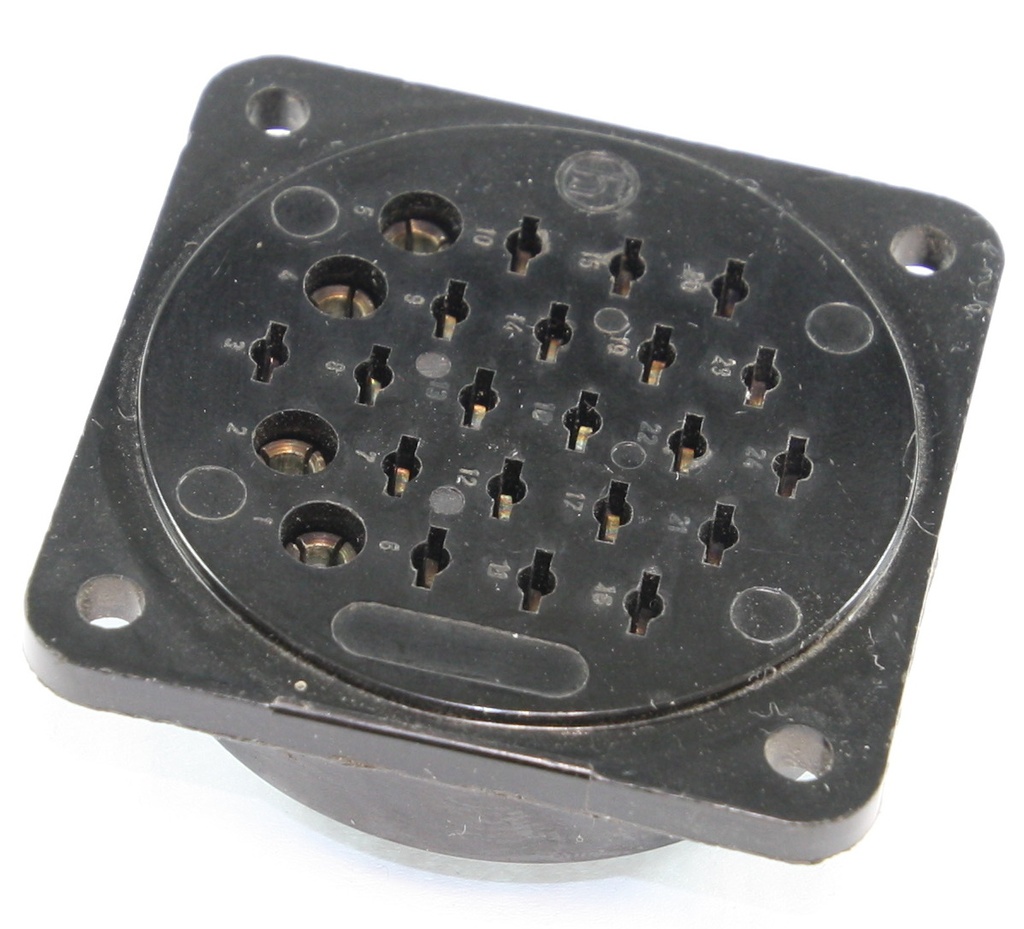

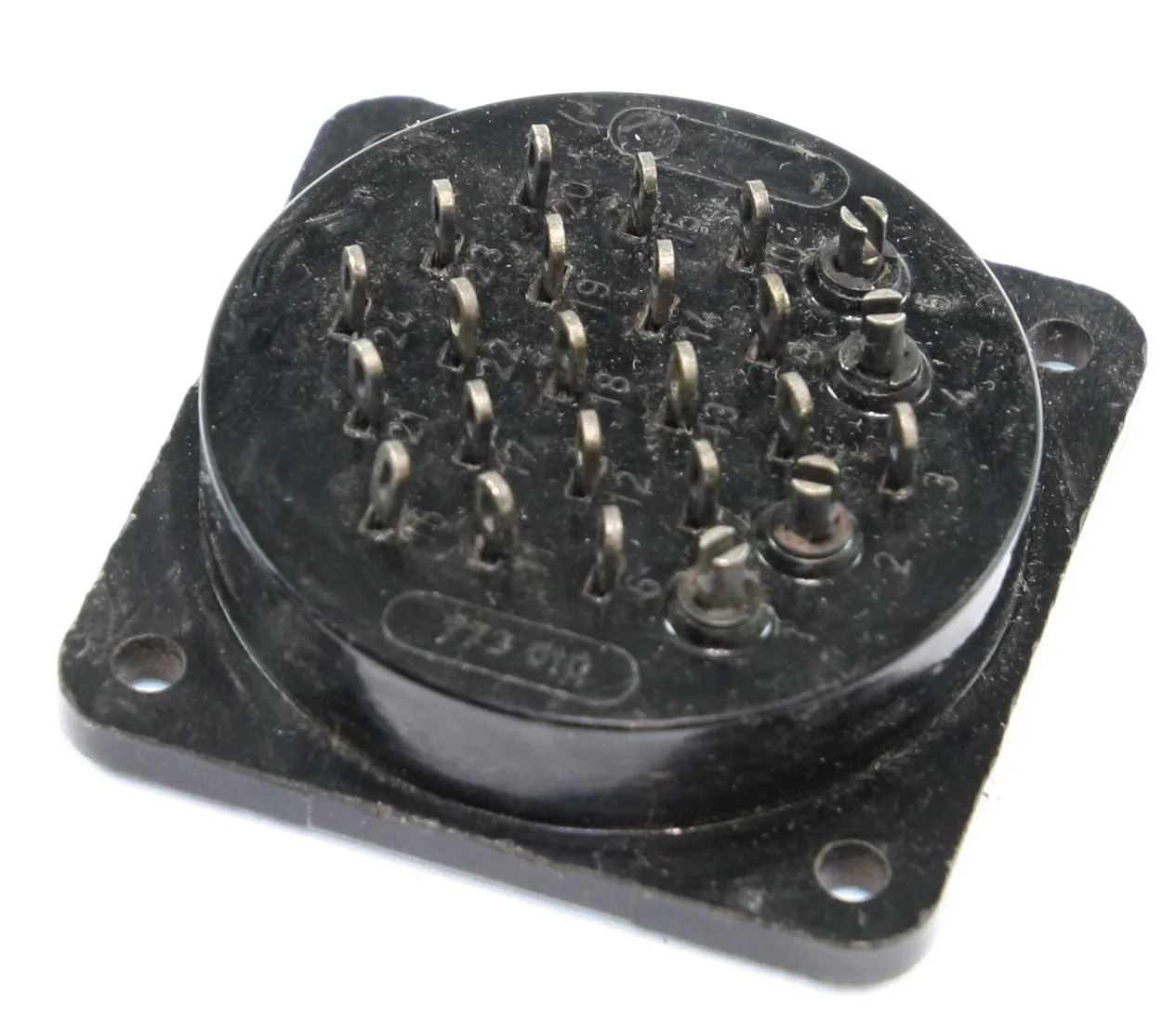

Hirschmann 24-polet stik SORT female chassis

1. 1. connector with small dimensions and a large number of contacts, 6-pole to 24-pole.

1. For connections in telecommunications, emergency call systems, paging and intercom equipment
2. Connections in control and measurement systems, house installations and laboratory equipment

Basic data

1. 1. Operating voltage: 60 V AC / 75 V DC

1. 1. Operating current:

1. 1. 10 A AC / DC 3mm contacts

1. 1. 4 A AC / DC 2 mm contacts

1. 1. 1 A AC / DC GSK types

1. 1. Outer lead diameter: 9,5 mm - 14 mm

1. 1. Protection class: IP 30

1. 1. Type of connection: solder
