Encoder 24 pulse Bushing
Varenummer:
144-313
Varekode:
EC12E2420803
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C3625

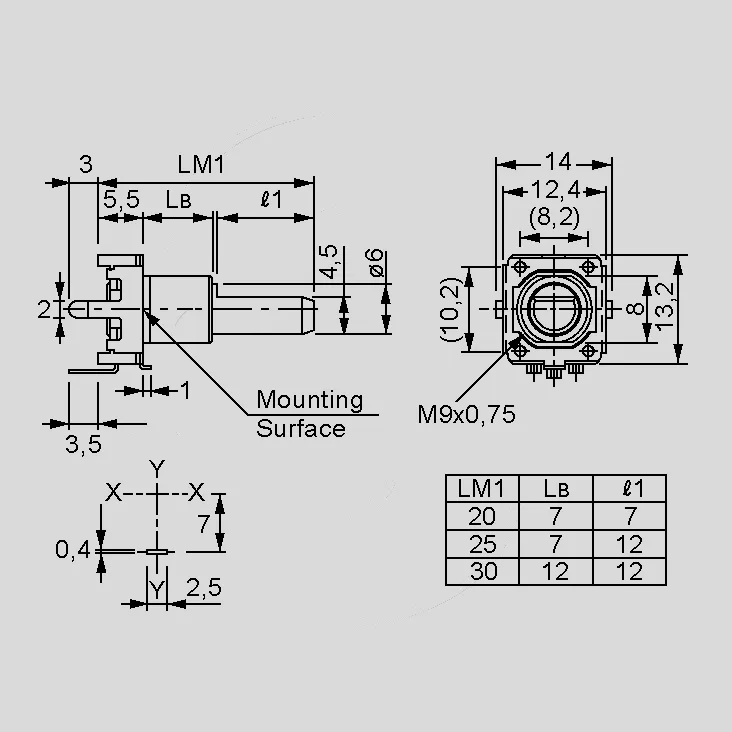

ALPS Incremental Encoder
Series: EC12
Vertical Mounting Form
optionally with Switch
Shaft: Plastic, Ø6mm
Housing: Ø12,4mm
|
Features |
| • Compact design • Number of pulse: 12,15 or 24 • Mechanical angles 360° • Optionally with push-on switch |
 |
|
Technical Specifications |
|
|
| Rating Voltage: | 5V DC |
| Input Current | |
| EC12E: | 0,5mA |
| EC12D: | 1mA |
| Insulation Resistance (Min.) | |
| EC12E: | 10MW / 50V DC |
| EC12D: | 100MW / 250V DC |
| Dielectric Strength (1Min) | |
| EC12E: | 50V AC |
| EC12D: | 300V AC |
| Operating Torque | |
| EC12E_: | 3±2Nm*m |
| EC12D_: | 10±3Nm*m |
| Rotation Angle: | 360° |
| Lifetime: | 30x103 Operations |
| Switch Specifications | |
| Contact | SPST-NO |
| EC12D_: | 1mA / 5V DC |
| Temperature Range | |
| EC12E: | -10°C...+70°C |
| EC12D: | -40°C...+85°C |
|
|
|
Selection Table |
| Part Nr. | Design | Number | Number | Travel |
| EC12_ | of Detent | of Pulse | of Switch | |
| [mm] | ||||
| E1220405 | plain collar | 12 | 12 | - |
| E24204A9 | plain collar | 24 | 24 | - |
| E1220813 | with bushing | 12 | 12 | - |
| E2420801 | with bushing | 24 | 24 | - |
| D1564402 | push-on switch | 30 | 15 | 0,5 |
|
||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Articles in bold print in stock, other articles available on request, delivery time approx. 16 weeks. |
|
| Manufacturer |
 |
| http://www.alps.com |
|
