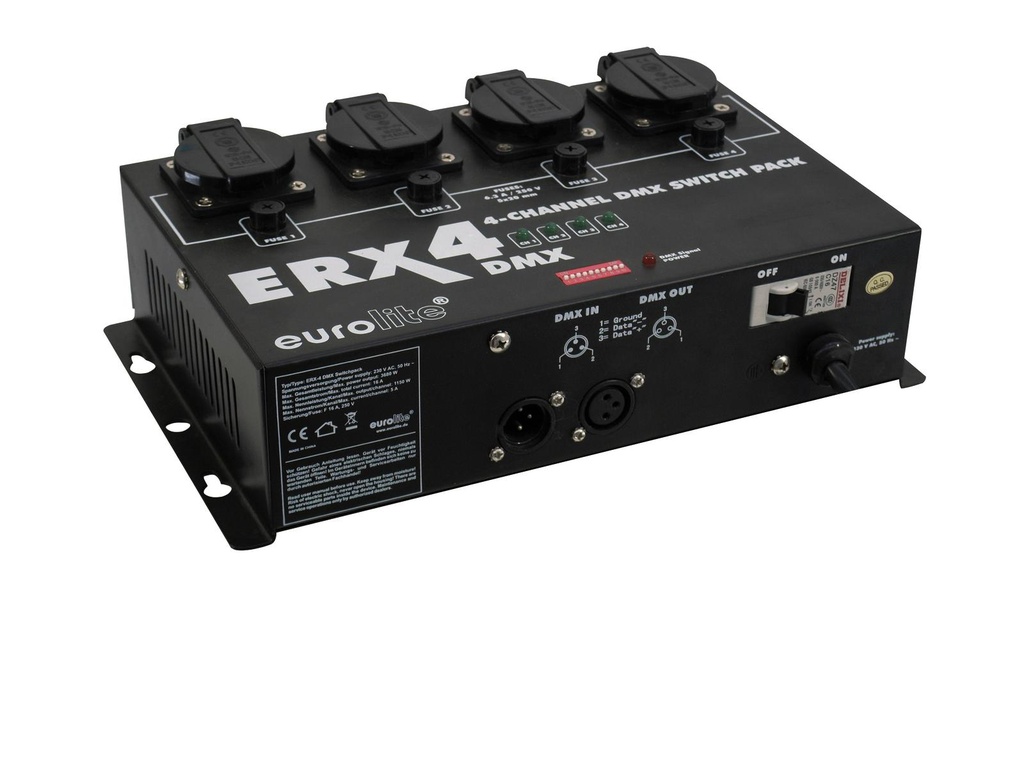

Eurolite ERX-4 DMX Switch Pack
Varenummer:
143-622
Varekode:
ST70064210
Vægt:
2880 g
Lagerstatus:
Ikke på lager
- Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- DMX512 input and output
- DMX starting address adjustable via DIP switches
- For truss installation and wall installation
- Control: Stand-alone; DMX
| Power supply: | 230 V AC, 50 Hz |
| Max. power output: | 3680 W |
| Max. total current: | 16 A |
| Number of channels: | 4 |
| Load/channel: | 1150 W |
| Max. current/channel: | 5 A |
| Output sockets: | 4 safety power outlets |
| DMX output: | 3-pin XLR mounting plug |
| DMX input: | 3-pin XLR mounting jack |
| Dimensions: | 300 x 190 x 85 mm |
| Weight: | 2,8 kg |
| Max. power output: | 3680 W |
| Color: | Black |
| Height: | 8,5 cm |
| Depth: | 19 cm |
| Width: | 30 cm |
| DMX channels: | 4 |
Datablad
Stregkode:
4026397521788
Intern reference:
143622
Varekode:
ST70064210
