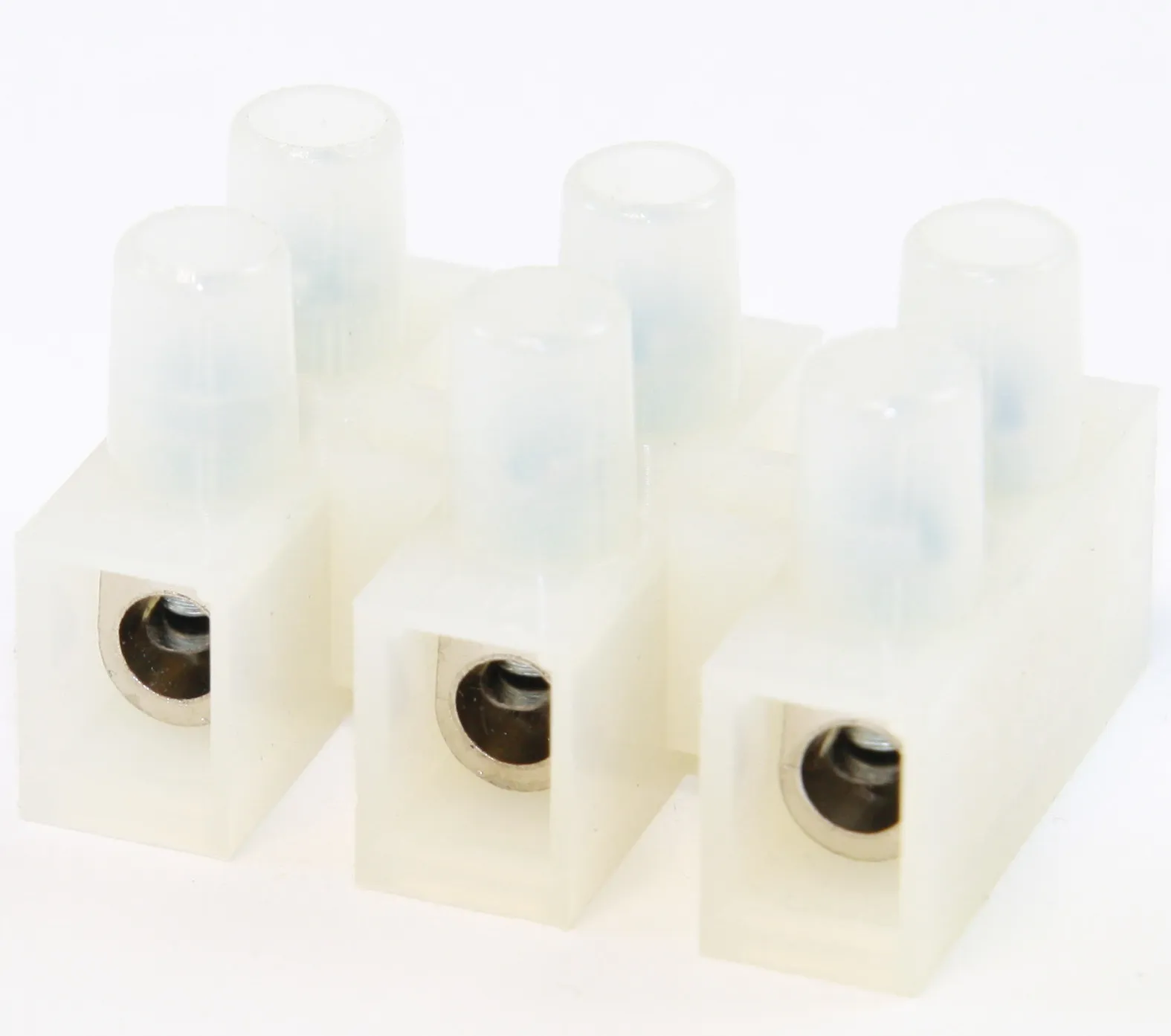

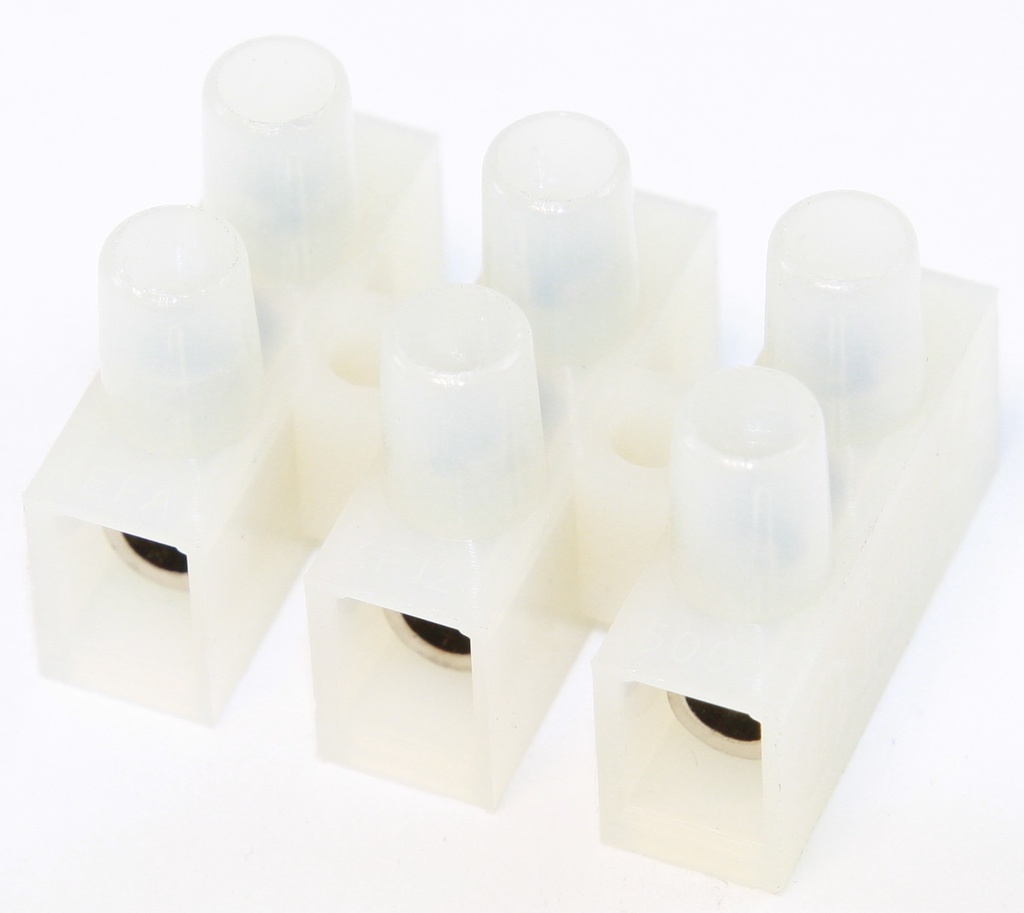

Klemrække 3-pol 6 mm2 KLAR
Varenummer:
143-494
Varekode:
KF12H-3
Vægt:
20 g
Lagerstatus:
Lager: 34 stk.
| Certification |
|
 |
| Electrical performance | ||
| Reference standard |
UL
|
IEC
|
| Rated voltage |
600V
|
500V
|
| Rated current |
30A
|
41A
|
| Wire diameter |
14-10AWG
|
6.0mm2
|
| Rated impulse voltage |
2.5KV
|
|
| Mechanical properties | ||
| Ambient temperature |
-40℃~+105℃
|
|
| Strip length |
6.0-7.0mm
|
|
| Maximum locking torque |
0.5Nm(4.0Lb-in)
|
|
| Size | ||
| Spacing |
12mm(.472")
|
|
| The number of poles |
3P (32x24x19mm.)
|
|
|
|
||
| Material and Plating
|
||
| Plastic parts |
PA66，UL94V-0
|
|
| Welding needle |
|
|
| Screw |
M3.5 Steel Galvanized
|
|
| Square box |
Brass Nickel plating
|
|
| Contact material |
|
|
| Reed |
Stainless steel
|
|
Stregkode:
143494
Intern reference:
143494
Varekode:
KF12H-3
