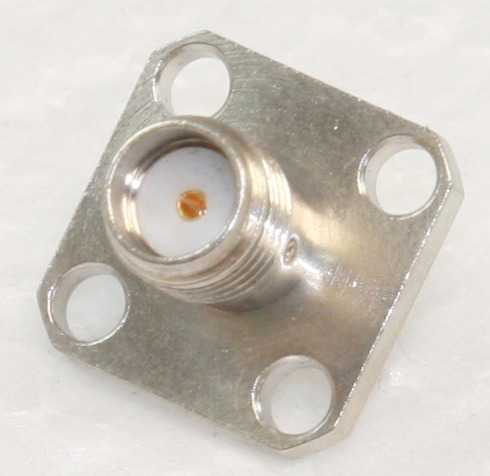

SMA-Female 4-Hole Flange - Panel Mount Coaxial Connector (Brugte)

Varenummer:

142-262

Varekode:

SMA-KFDS-BRUGT

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 24,00

Denne kombination eksistere ikke.

Køb

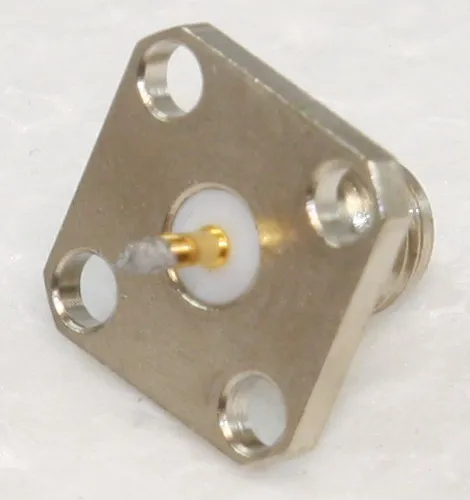

De er brugte men som nye Se billede

SMA-Female 4-Hole Flange - Panel Mount Coaxial Connector

Specification

Temp. : -65~+165°C (PE Cable -40~+85°C)

Vibration : MIL-STD-202,Method 213

Impedance : 50Ω Sølv

Frequency : DC~12.4GHz(Semi-rigid cable 0~18GHz)

Working Voltage : 335V max (effective)

Withstand Voltage : 1000V rms (Minimum sea level)

Contact Resistance

Center Contact ≤ 3 mΩ

Outer Contact ≤ 2 mΩ

Insulation Resistance ≥ 5000MΩ

Insertion Loss ≤0.15 dB/6GHz

VSWR

Straight soft cable≤1.10+0.002f

Semi-rigid cable≤1.05+0.001f

Curved flexible cable≤1.20+0.003f

Durability≥500 Times(cycles)

Package Included

1 x Connector

Stregkode: 142262
Intern reference: 142262
Varekode: SMA-KFDS-BRUGT
