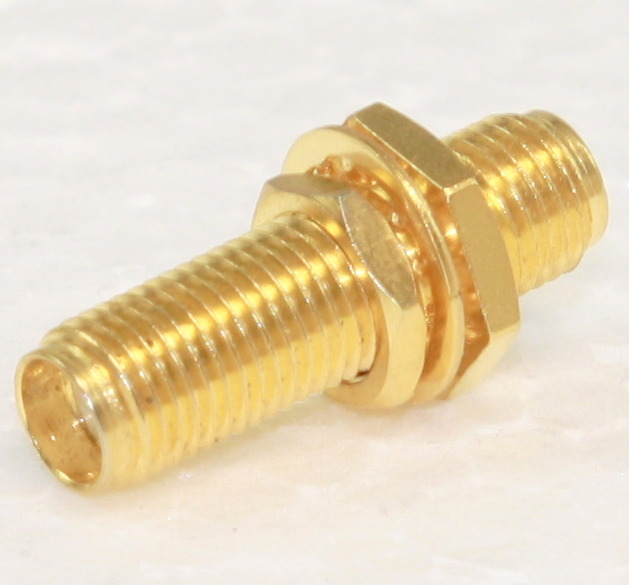

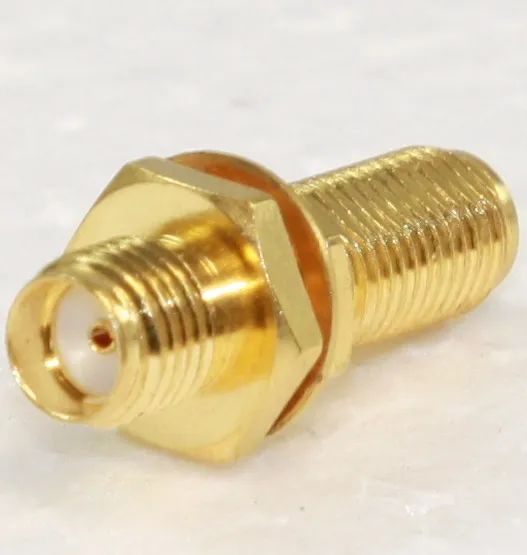

SMA Female to SMA Female Bulkhead Adapter
Varenummer:
142-260
Varekode:
SMAF-SMAF-BLKHD
Vægt:
10 g
Lagerstatus:
Ikke på lager
Electrical Specifications
Resistance: 50Ω
Frequency Range: DC-12.4GHz
Working Voltage: 335V RMS
Withstand Voltage: 1000V RMS
Insertion Loss:
VSWR:
Mechanical/Environmental Specifications
Durability: >500 cycles
Body Material: Brass
Plating Material: Gold
Pin/Socket Contact: Brass/Beryllium-Copper
Pin/Socket Plating: Gold/Gold
Insulator: PTFE
Operating Temperature: -55° to 155° C
CECC 22110
MIL-C-39012
IEC-60169-15
RoHS Compliant (Pb Free)
Stregkode:
142260
Intern reference:
142260
Varekode:
SMAF-SMAF-BLKHD
