Drejeomskifter, 3x4 Solder Lug CK-1041 Kortsluttende
Varenummer:
140-868
Varekode:
DS3-B2
Vægt:
20 g
Lagerstatus:
Ikke på lager

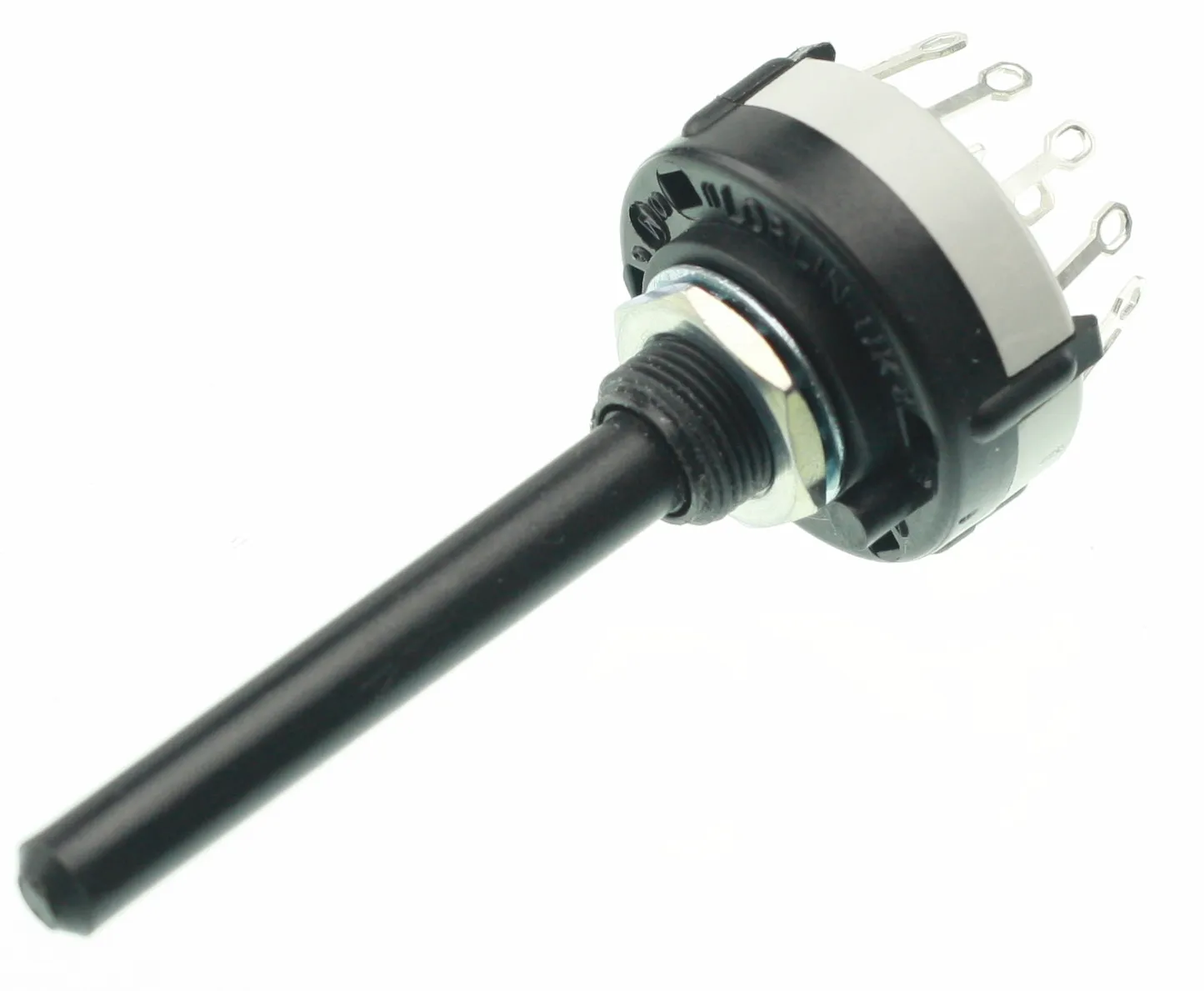

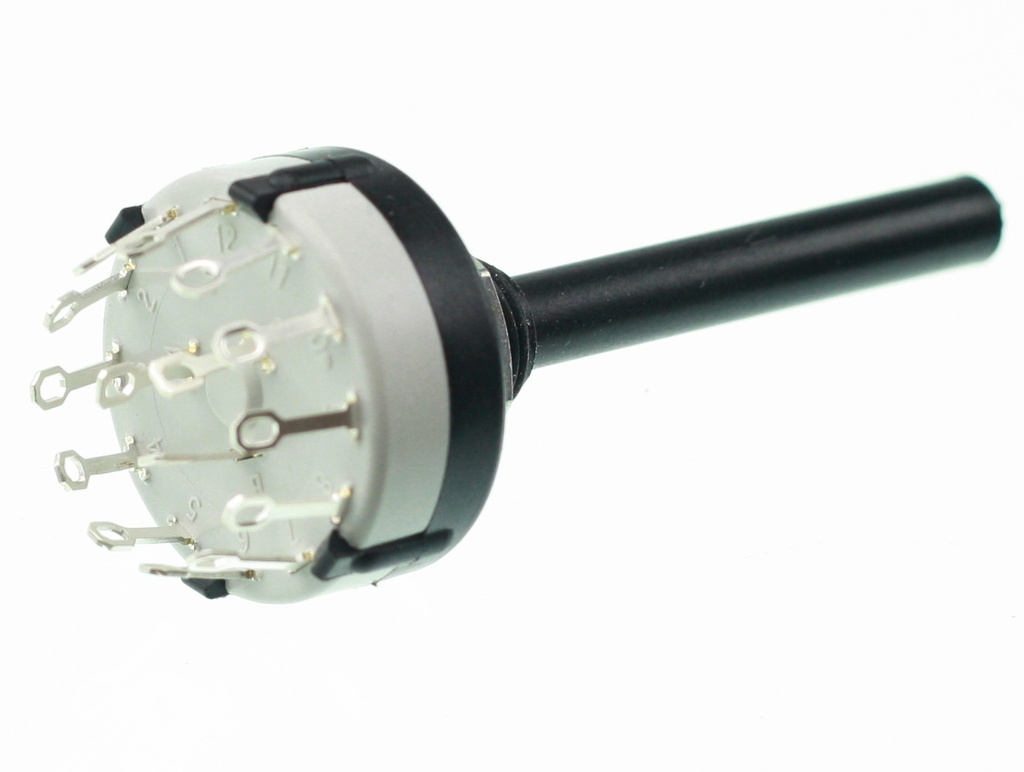

Drejeomskifter, 3 x 4, CK-1041 Kortsluttende
Rotary Switch
The CK1041 is a 3-pole 4-position high quality shorting Rotary Switch for low power applications. Although capable of handling mains voltage, it is not designed as a mains isolating switch. It is available in PCB terminal with silver-plated finish.
Gruppe:
E2411
LORLIN Rotary Switches
Series: CK
With 6mm Plastic Axis
Switching Type: MBB
Terminals: Solder Lugs, PC Solder Pins
| Features |
| • Standard-One-Level rotary switch with maximum 12 operating positions • shorting version • The number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher • DS_: with solder lugs, DS_PC: with solder pin (PC-contact) |
 |
| Technical Specifications |
|
|||||||||||||||||||||
| Operating Voltage: | 250V AC/DC | Test Voltage: | 1500V | Switching Current 250V AC/DC: | 0,15A | Contact Resistance: | 20mW | Insulation Resistance, 500V DC: | >999MW | Contacts: | Brass | Surface: | Silver-plated | Insulation Shell: | Polyamide 6.6, Glass-filled | Operating Life: | >10,000 Cycles | Division: | 30° | ||
|
|||||||||||||||||||||
| Dimensions |
|
|||||||||||
| Holes: | For M 10 +0,1mm | Shaft Diameter (A): | 6mm | Shaft Length (B): | 50mm | Smoothing (D): | Without | Mounting Bushing: | M 10x0,75 | ||
|
|||||||||||
| Selection Table |
| Part Nr. | Pole | Positions | Connection | DS1 | 1 | 12 | Solder Lug | DS2 | 2 | 6 | Solder Lug | DS3 | 3 | 4 | Solder Lug | DS4 | 4 | 3 | Solder Lug | DS1PC | 1 | 12 | Solder Pin (PC) | DS2PC | 2 | 6 | Solder Pin (PC) | DS3PC | 3 | 4 | Solder Pin (PC) | DS4PC | 4 | 3 | Solder Pin (PC) | ||||
|
|||||||||||||||||||||||||||||||||||||||
| Note |
| Please see product group E2413 for shortening rotary switches. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Lorlin http://www.lorlin.co.uk |
|
