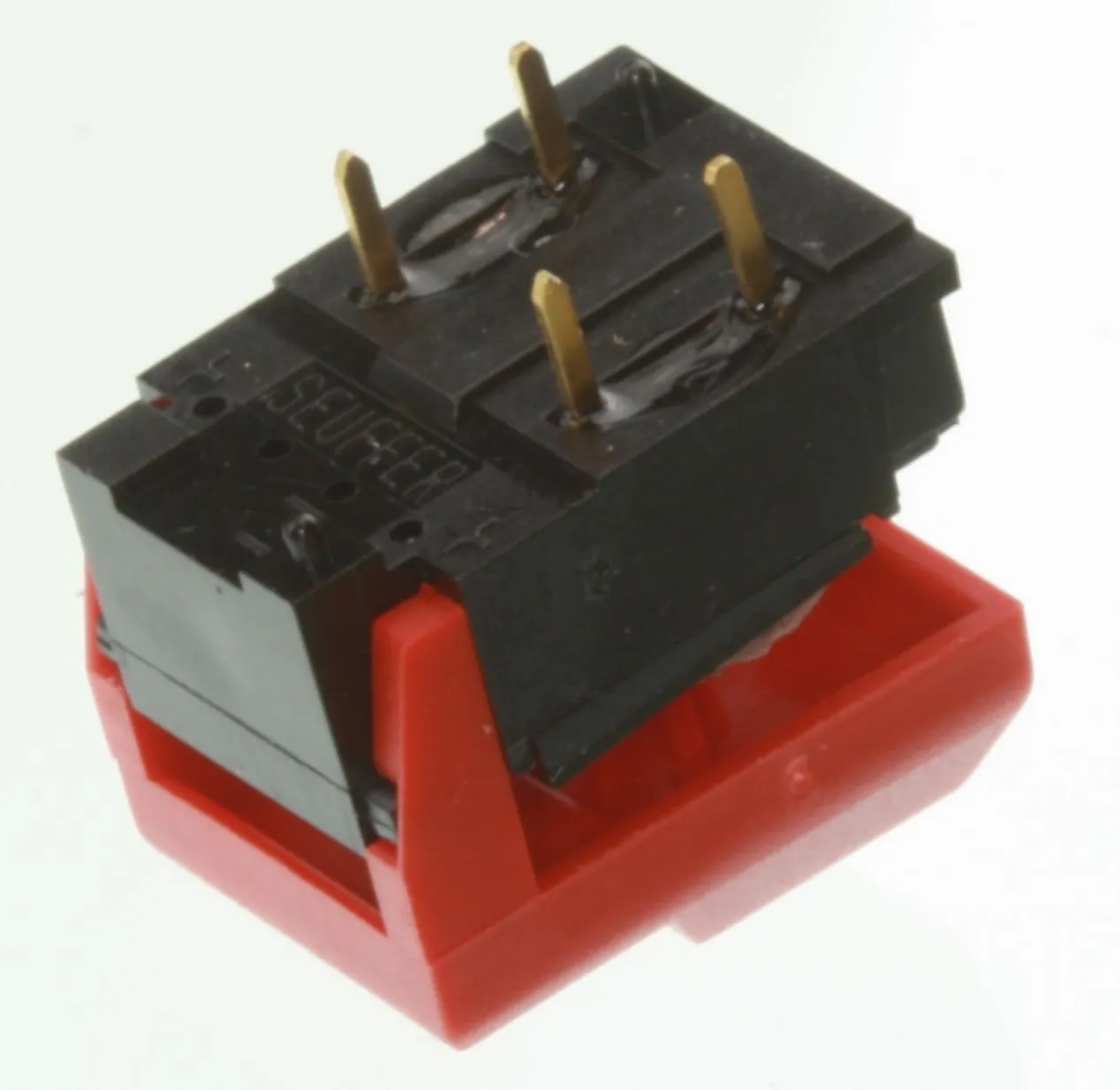

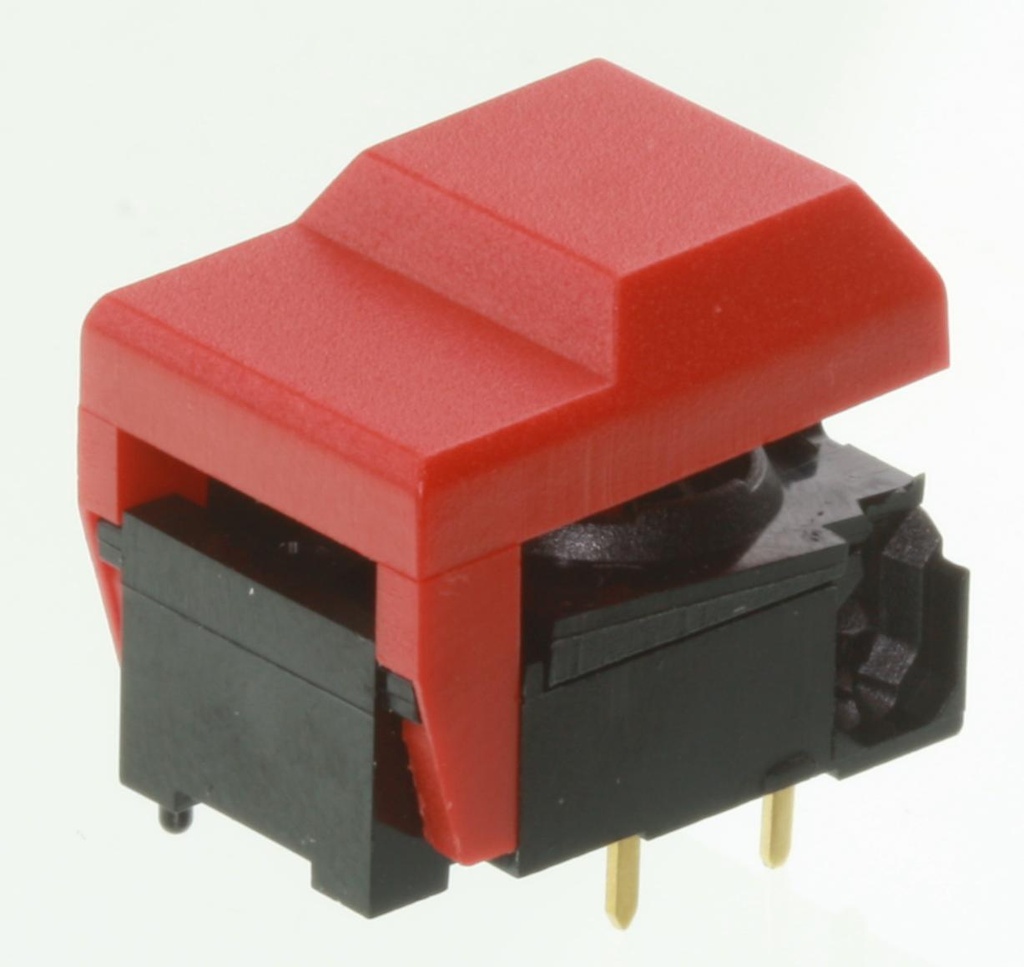

Dataswitch Rød
Varenummer:
139-311
Varekode:
650-2-AURO
Vægt:
0 g
Lagerstatus:
Ikke på lager
Features
| • Momentary switch with black body and coloured button in red or black • Housing and button already installed • Versatile application for direct installation onto a PCB • Positive tactile feedback |
 |
| Technical Specifications |
|
|
| Contacts | Cu Zn gal./Ag/Au |
| Switching Current, Max.: | 12mA |
| Switching Voltage, Max.: | 24V AC |
| Switching Capacity, Max.: | 240mW |
| Contact Resistance: | 20mOhm |
| Insulation Resistance. Min.: | 1010Ohm |
| Capacitance Contact/Contact: | 1pF |
| Bounce Time, Max.: | 2ms |
| Operating Force, Max.: | 2N |
| Operating Path | |
| Operating Stroke: | 2mm |
| Exceeding Stroke: | 1mm |
| Operating Life/Cycles: | 5x106 |
|
|
Datablad
Stregkode:
139311
Intern reference:
139311
Varekode:
650-2-AURO
