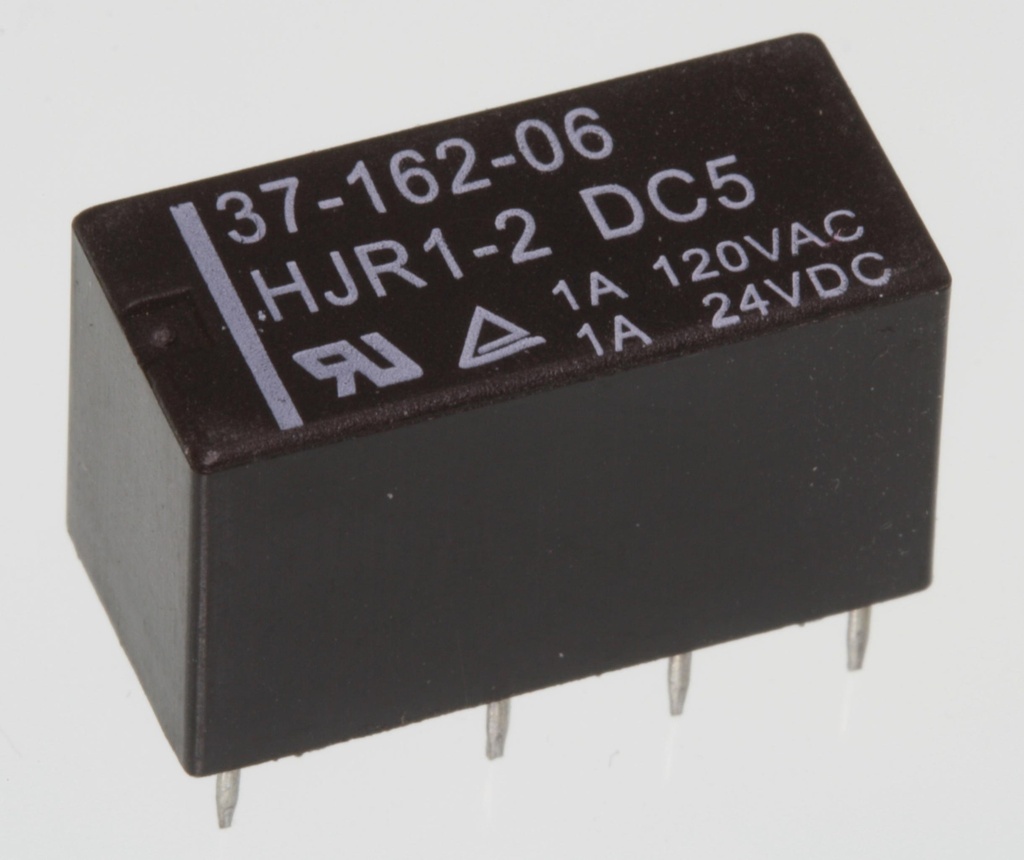

PrintRelæ 5VDC/200mW/125R/2xSkifte
Varenummer:
139-031
Varekode:
HJR1-2C L-5VDC
Vægt:
10 g
Lagerstatus:
Lager: 28 stk.
Features
| • Wash tight construction RTIII (IP67) • Low height • PCB mounting or insertable in a 16-pole DIP/DIL socket |
 |
| Technical Specifications |
|
|
| Contact: | DPDT |
| Contact Material: | AgNiAu |
| Rated Current: | 2A |
| Max. Switching Current: | 2A |
| Max. Switching Voltage: | 240V AC / 60V DC |
| Max. Switching Power: | 120VA / 60W |
| Operate/Release Time: | 8/4ms |
| Testing Voltage | |
| Coil/Contact: | 1000V AC |
| Contact/Contact: | 500V AC |
| Lifetime | |
| Mechanical: | 1x107 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -30...+85°C |
| Weight Approx.: | 5g |
|
|
| Coil Data |
| Part Nr. | UN | Umax. | UAb (min.) | PN | RN |
| [V DC] | [V] | [V] | [mW] | [Ohm] | |
| HJR1-2C-L-5 | 5 | 3,75 | 0,5 | 200 | 125 |
| HJR1-2C-L-12 | 12 | 9,0 | 1,2 | 200 | 720 |
| HJR1-2C-L-24 | 24 | 18,0 | 2,4 | 200 | 2880 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAb = Minimum Release Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C | |||||
|
|||||
| Approvals |
  |
|
Datablad
Stregkode:
139031
Intern reference:
139031
Varekode:
HJR1-2C L-5VDC
