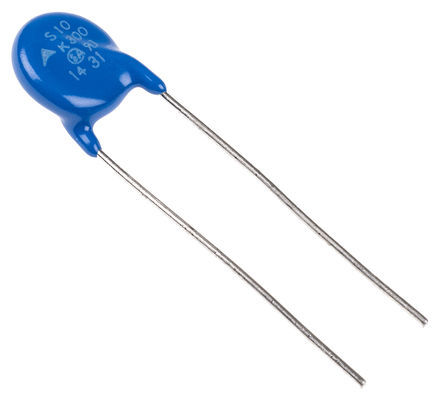

Varistor 320V 420V 2500A B72210S0321K101
Varenummer:
138-311
Varekode:
SIOV-S10K320
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C4211
EPCOS Metal Oxide Varistors
Series: SIOV
(S05, S07, S10, S14)
Style: Bulk
Pitch: 5/7,5mm
|
Features |
| • Round varistor element, wired • Epoxy resin coating, flame retardant to UL94V-0 • No derating up to 85°C ambient temperature |
 |
|
Technical Specifications |
|
|||||||||||
| Storage Temperature: | -40...+125°C | Temperature Range: | -40...+85°C | Test Voltage: | "font-family: Symbol;">³2500Vrms | Insulation
Resistance: |
>10M"font-family: Symbol;">W | Response Time: | "font-family: Symbol;">25ns | ||
| "20"> |
|||||||||||
|
Part Nr. |
URMS |
Udc |
UV |
"font-family: Symbol;">DUV |
US |
|
[V AC] |
[V DC] |
[V] |
[%] |
[V] |
SIOV-S_K25 | 25 | 31 | 39 | ±10 | 77 | SIOV-S_K30 | 30 | 38 | 47 | ±10 | 93 | SIOV-S_K60 | 60 | 85 | 100 | ±10 | 165 | SIOV-S07K130 | 130 | 170 | 205 | ±10 | 340 | SIOV-S_K230 | 230 | 300 | 360 | ±10 | 595 | SIOV-S_K250 | 250 | 320 | 390 | ±10 | 650 | SIOV-S_K275 | 275 | 350 | 430 | ±10 | 710 | SIOV-S_K300 | 300 | 385 | 470 | ±10 | 775 | ||||||
| URMS
= AC Operating, Max., Udc = DC Operating Voltage, Max., UV = Varistor Voltage (1mA), "font-family: Symbol;">DUV = Tolerance of Varistor Voltage, US = Max. Clamping Voltage |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| "20"> |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Part Nr. |
IMax. |
EMax. |
PMax. |
Ctyp. |
|
[A] |
[J] |
[W] |
[pf] |
SIOV-S05K25 | 100 | 0,7 | 0,01 | 850 | SIOV-S07K25 | 250 | 1,6 | 0,02 | 1400 | SIOV-S10K25 | 500 | 3,7 | 0,05 | 3200 | SIOV-S05K30 | 100 | 0,9 | 0,01 | 720 | SIOV-S07K30 | 250 | 2,0 | 0,02 | 1200 | SIVO-S10K30 | 500 | 4,4 | 0,05 | 2750 | SIOV-S05K60 | 400 | 2,2 | 0,1 | 250 | SIOV-S07K60 | 1200 | 4,8 | 0,25 | 480 | SIOV-S10K60 | 2500 | 10,0 | 0,4 | 870 | SIOV-S07K130 | 1200 | 9,5 | 0,25 | 200 | SIOV-S05K230 | 400 | 7,2 | 0,1 | 60 | SIOV-S07K230 | 1200 | 17,0 | 0,25 | 115 | SIOV-S10K230 | 2500 | 36,0 | 0,4 | 230 | SIOV-S14K230 | 4500 | 60,0 | 0,6 | 380 | SIOV-S05K250 | 400 | 8,5 | 0,1 | 55 | SIOV-S07K250 | 1200 | 19 | 0,25 | 105 | SIOV-S10K250 | 2500 | 38 | 0,4 | 215 | SIOV-S14K250 | 4500 | 65 | 0,6 | 350 | SIOV-S05K275 | 400 | 8,6 | 0,1 | 50 | SIOV-S07K275 | 1200 | 21 | 0,25 | 95 | SIOV-S10K275 | 2500 | 43 | 0,4 | 195 | SIOV-S14K275 | 4500 | 71 | 0,8 | 320 | SIOV-S05K300 | 400 | 9,6 | 0,1 | 45 | SIOV-S07K300 | 1200 | 23,0 | 0,25 | 90 | SIOV-S10K300 | 2500 | 47 | 0,4 | 180 | SIOV-S14K300 | 4500 | 76 | 0,6 | 300 | |||||
|
IMax. = Peak Current (8/20µs), Max., EMax. = Energy Absorption, Continuously Rated, Max., PMax. = Max. Dissipation Power, Ctyp. = Typical Capacitance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| "20"> |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

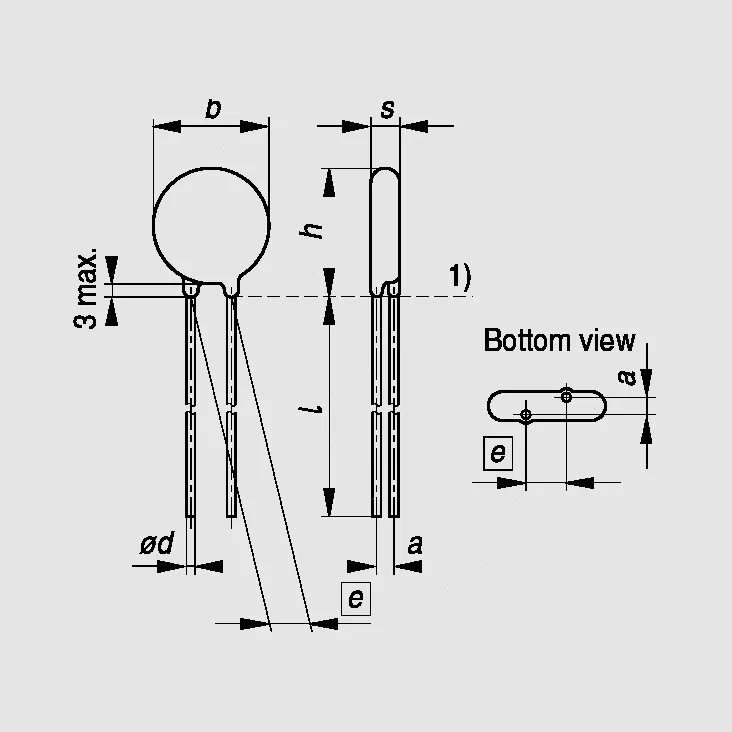

Dimensions |
|
Part Nr. |
e±1 |
a±1 |
bMax. |
sMax. |
hMax. |
lMin. |
d±0,05 |
|
|
|
|
[mm] |
|
|
|
SIOV-S05K25 | 5,0 | 1,3 | 7,0 | 3,6 | 8,5 | 25,0 | 0,6 | SIOV-S07K25 | 5,0 | 1,3 | 9,0 | 3,7 | 11,0 | 25,0 | 0,6 | SIOV-S10K25 | 7,5 | 1,6 | 12,0 | 4,2 | 14,5 | 25,0 | 0,8 | SIOV-S05K30 | 5,0 | 1,5 | 7,0 | 3,6 | 8,5 | 25,0 | 0,6 | SIOV-S07K30 | 5,0 | 1,5 | 9,0 | 3,7 | 11,0 | 25,0 | 0,6 | SIOV-S10K30 | 7,5 | 1,7 | 12,0 | 4,4 | 14,5 | 25,0 | 0,8 | SIOV-S05K60 | 5,0 | 1,2 | 7,0 | 3,3 | 8,5 | 25,0 | 0,6 | SIOV-S07K60 | 5,0 | 1,2 | 9,0 | 3,3 | 11,0 | 25,0 | 0,6 | SIOV-S10K60 | 7,5 | 1,4 | 12,0 | 4,0 | 14,5 | 25,0 | 0,8 | SIOV-S07K130 | 5,0 | 1,6 | 9,0 | 3,6 | 11,0 | 25,0 | 0,6 | SIOV-S05K230 | 5,0 | 1,8 | 7,0 | 4,0 | 8,5 | 25,0 | 0,6 | SIOV-S07K230 | 5,0 | 1,8 | 9,0 | 4,0 | 11,0 | 25,0 | 0,6 | SIOV-S10K230 | 7,5 | 2,0 | 12,0 | 4,7 | 14,5 | 25,0 | 0,8 | SIOV-S14K230 | 7,5 | 2,0 | 15,5 | 4,7 | 18,5 | 25,0 | 0,8 | SIOV-S05K250 | 5,0 | 1,8 | 7,0 | 4,2 | 8,5 | 25,0 | 0,6 | SIOV-S07K250 | 5,0 | 1,8 | 9,0 | 4,2 | 11,0 | 25,0 | 0,6 | SIOV-S10K250 | 7,5 | 2,0 | 12,0 | 4,8 | 14,5 | 25,0 | 0,8 | SIOV-S14K250 | 7,5 | 20,0 | 15,5 | 4,8 | 18,5 | 25,0 | 0,8 | SIOV-S05K275 | 5,0 | 2,0 | 7,0 | 4,3 | 8,5 | 25,0 | 0,6 | SIOV-S07K275 | 5,0 | 2,0 | 9,0 | 4,4 | 11,0 | 25,0 | 0,8 | SIOV-S10K275 | 7,5 | 2,2 | 12,0 | 5,0 | 14,5 | 25,0 | 0,8 | SIOV-S14K275 | 7,5 | 2,2 | 15,2 | 5,0 | 18,5 | 25,0 | 0,8 | SIOV-S05K300 | 5,0 | 2,1 | 7,0 | 4,5 | 8,5 | 25,0 | 0,6 | SIOV-S07K300 | 5,0 | 2,1 | 9,0 | 4,5 | 11,0 | 25,0 | 0,6 | SIOV-S10K300 | 7,5 | 2,3 | 12,0 | 5,1 | 14,5 | 25,0 | 0,8 | SIOV-S14K300 | 7,5 | 2,3 | 15,5 | 5,2 | 18,5 | 25,0 | 0,8 | ||||||||
| "20"> |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Norms |
| IEC60068-1, IEC60068-2-3, CECC42000 |
|
| Approvals |
 "0"> |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces Form of delivery: Bulk |
|
| Manufacturer |
| Epcos "_blank">http://www.epcos.com |
|
