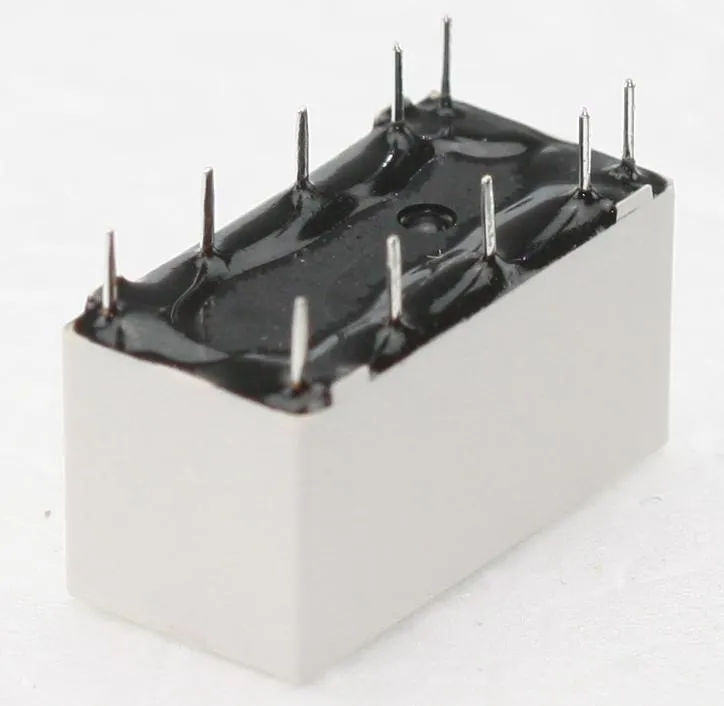

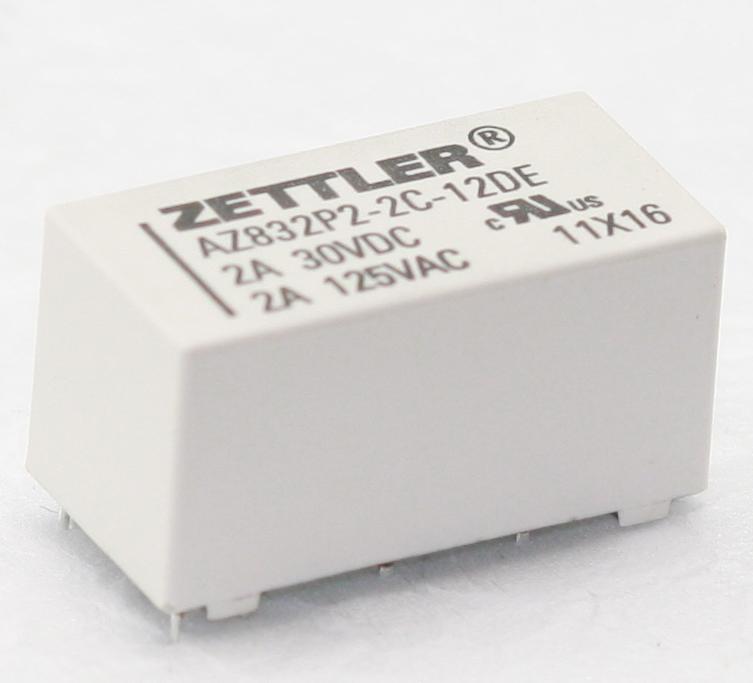

Relay DPST NO 3A 12V NO 720R - 2 spoler

Varenummer:
137-859
Varekode:
AZ832P2-2C-12DE
Vægt:
10 g
Lagerstatus:
Lager: 98 stk.

kr 22,28 22.28 DKK kr 22,28 Inklusiv moms

kr 22,28 Inklusiv moms

Anmod os om en pris

v/10
Kr. 23,21
v/100
Kr. 19,82

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/99669/image_1920?unique=864978b https://elektroniklavpris.odoo.com/web/image/product.template/99669/image_1920?unique=864978b
Features
• Low profile DIP package
• AZ832_: high sensitivity, 96mW pickup
• AZ832P_: high sensitivity, 42mW pickup
• Housing: 20,2x10x10,65mm
• Standard PC 2,54mm grid terminal spacing
• Fits standard 16 pin IC socket
• Epoxy sealed for automatic wave soldering and cleaning
• Meets FCC Part 68.302 1500V lightning surge
• Meets FCC Part 68.304 1000V dielectric
Technical Specifications

Contact: DPDT
Contact Material: Ag, Au-plated against PdAg
Rated Current: 2A
Max. Switching Voltage
AZ8322P_: 250V AC / 220V DC
AZ832_: 250V AC / 250V DC
Max. Switching Power
AZ8322P_: 125VA / 90W
AZ832_: 250VA / 90W
Operate/Release Time
AZ8322P_: 3/3ms
AZ832_: 3/2ms
Testing Voltage (FCC)
Coil/Contact: 1500VRMS
Contact/Contact: 1000VRMS
Open Contacs: 1000VRMS
Lifetime
Mechanical, Min.: 2x107 Operations
Electrical, Min. (2A / 30V AC): 1x105 Operations
Operating Temperature: -40...+85°C
Max. Solder Temperature: 270°C (5s)
Weight Approx.: 5g
Coil Data

Part Nr. UN UMin. UMax. PN RN
  [V DC] [V DC] [V DC] [mW] [Ohm]
AZ832P2-2C-3DE 3 2,25 6,4 200 45
AZ832P2-2C-5DE 5 3,75 10,6 200 125
AZ832P2-2C-12DE 12 9,0 25,5 200 720
AZ832P2-2C-24DE 24 18,0 18,0 300 2040
AZ832-2C-12DE 12 9,6 25,5 282 720
AZ832-2C-24DE 24 19,2 50,9 200 2820
AZ832-2C-12DEA 12 9,6 25,5 200 720
AZ832-2C-24DEA 24 19,2 50,9 200 2820
AZ832-2C-12DSE 12 9,6 29,0 150 960
AZ832-2C-24DSE 24 19,2 57,0 150 2160
UN = Rated Voltage, UMin. = Minimum Operating Voltage, UMax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C
Approvals
  (File No. E43203)
Kontakt os
Datablad

Stregkode: 137859
Intern reference: 137859
Varekode: AZ832P2-2C-12DE
