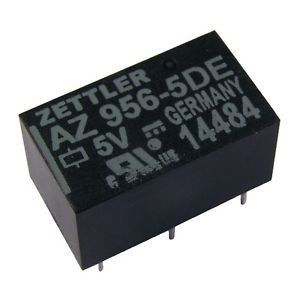

1 x skifte relæ 5VDC 1A 370R
Varenummer:
137-790
Varekode:
AZ956-5DE
Vægt:
0 g
Lagerstatus:
Ikke på lager
Varegruppe: E6115
Features
| • Small size and ultra slim • polarized relay, housing 13x7,62x6,9mm • Low coil power consumption 36mW pickup • Meets FCC Part 68.302 1500V lightning surge • Stable contact resistance for low level signal switching • Epoxy sealed for automatic wave soldering and cleaning |
 |
| Technical Specifications |
|
|
| Contact: | SPDT |
| Contact Material: | PdNi, with AuRh |
| Rated Current: | 1A |
| Max. Switching Voltage: | 125V AC / 150V DC |
| Max. Switching Power: | 60VA / 30W |
| Operate/Release Time | 1/0,4ms |
| Testing Voltage (FCC) | |
| Coil/Contact:(1min.): | 1500VRMS |
| Open Contacs(1min.): | 500VRMS |
| Lifetime | |
| Mechanical, Min.: | 1x109 Operations |
| Electrical, Min. (1A / 24V DC): | 3x106 Operations |
| Operating Temperature: | -40...+70°C |
| Max. Solder Temperature: | 260°C (10s) |
| Weight Approx.: | 1,8g |
|
|
| Coil Data |
| Part Nr. | UN | UMin. | UMax. | PN | RN |
| [V DC] | [V DC] | [V DC] | [mW] | [Ohm] | |
| AZ956-5DE | 5 | 3,75 | 14,5 | 68 | 370 |
| AZ956-12DE | 12 | 9,00 | 35 | 64 | 2250 |
| UN = Rated Voltage, UMin. = Minimum Operating Voltage, UMax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C | |||||
|
|||||
| Approvals |
  (File No. E43203) |
|
| Additional Products |
| Also available on request:Relays with rated voltages from 1,5 to 24V DC |
|
