KP/MMKP Capacitor 1,8nF 2000V 10% P15

Varenummer:
137-719
Varekode:
KP/MMKP1N1,8K2000-15
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 4,26 4.26 DKK kr 4,26 Inklusiv moms

kr 4,26 Inklusiv moms

Anmod os om en pris

v/10
Kr. 4,35
v/100
Kr. 3,29

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/99529/image_1920?unique=d50f5f3 https://elektroniklavpris.odoo.com/web/image/product.template/99529/image_1920?unique=d50f5f3

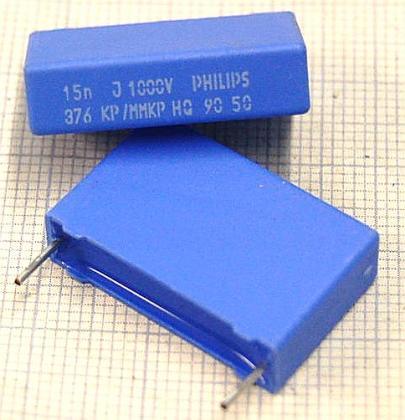

Fabrikat: Philips serie 376

Features
• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature
Typical Applications
For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment
Technical Specifications

Rated Voltages (UN): see Table
Test Voltage (2s): 1,6xUN
Capacitance Tolerances: ±10%
Operating Temperature Range: -55...+100°C
Climatic Test Category IEC: 55/100/56
Insulation Resistance
C�330nF: ³100000 MW
C>330nF: ³30000s
Failure Rate (40°C, 0,5 x UN): 1,0 fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

Part Nr. CN UN Ueff B H L RM
FKP1_ [nF] [V DC] [V AC] [mm] [mm] [mm] [mm]
P100K2000-15 0,1 2000 700 5,0 11,0 18,0 15,0
P150K2000-15 0,15 2000 700 5,0 11,0 18,0 15,0
P220K2000-15 0,22 2000 700 5,0 11,0 18,0 15,0
P330K2000-15 0,33 2000 700 6,0 12,5 18,0 15,0
P470K2000-15 0,47 2000 700 6,0 12,5 18,0 15,0
P680K2000-15 0,68 2000 700 6,0 12,5 18,0 15,0
N1,0K1250-15 1,0 1250 600 5,0 11,0 18,0 15,0
N1,0K1600-15 1,0 1600 650 6,0 12,5 18,0 15,0
N1,0K2000-15 1,0 2000 700 7,0 14,0 18,0 15,0
N1,5K1250-15 1,5 1250 600 5,0 11,0 18,0 15,0
N1,5K1600-15 1,5 1600 650 7,0 14,0 18,0 15,0
N1,5K2000-22 1,5 2000 700 6,0 15,0 26,5 22,5
N2,2K1250-15 2,2 1250 600 5,0 11,0 18,0 15,0
N2,2K1600-15 2,2 1600 650 8,0 15,0 18,0 15,0
N2,2K2000-22 2,5 2000 700 7,0 16,5 26,5 22,5
N3,3K1250-15 3,3 1250 600 6,0 12,5 18,0 15,0
N3,3K1600-22 3,3 1600 650 6,0 15,0 26,5 22,5
N3,3K2000-22 3,3 2000 700 7,0 16,5 26,5 22,5
N4,7K1250-15 4,7 1250 600 7,0 14,0 18,0 15,0
N4,7K1600-22 4,7 1600 650 7,0 16,5 26,5 22,5
N4,7K2000-22 4,7 2000 700 8,5 18,5 26,5 22,5
N6,8K1600-22 6,8 1600 650 8,5 18,5 26,5 22,5
N6,8K2000-22 6,8 2000 700 10,5 20,5 26,5 22,5
N010K1600-22 10 1600 650 10,5 20,5 26,5 22,5
N010K2000-27 10 2000 700 11,0 21,0 31,5 27,5
N015K2000-27 15 2000 700 13,0 24,0 31,5 27,5
N022K2000-27 22 2000 700 15,0 26,0 31,5 27,5
N033K2000-37 33 2000 700 13,0 24,0 41,5 37,5
N047K2000-37 47 2000 700 17,0 29,0 41,5 37,5
N068K1000-27 68 1000 600 13,0 24,0 31,5 27,5
N068K2000-37 68 2000 700 19,0 32,0 41,5 37,5
N100K1250-37 100 1250 600 15,00 26,0 41,5 37,5
N150K1250-37

Leveres som Philips 376 KP/MMKP


Features

• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature
Typical Applications

For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment
Technical Specifications

    Rated Voltages (UN): see Table Test Voltage (2s): 1,6xUN Capacitance Tolerances: ±10% Operating Temperature Range: -55...+100°C Climatic Test Category IEC: 55/100/56 Insulation Resistance C�330nF: ³100000 MW C>330nF: ³30000s Failure Rate (40°C, 0,5 x UN): 1,0 fit1)
1) 1fit = 1x10 -9 Failure Components/Hour
                Part Nr. CN UN Ueff B H L RM FKP1_ [nF] [V DC] [V AC] [mm] [mm] [mm] [mm] P100K2000-15 0,1 2000 700 5,0 11,0 18,0 15,0 P150K2000-15 0,15 2000 700 5,0 11,0 18,0 15,0 P220K2000-15 0,22 2000 700 5,0 11,0 18,0 15,0 P330K2000-15 0,33 2000 700 6,0 12,5 18,0 15,0 P470K2000-15 0,47 2000 700 6,0 12,5 18,0 15,0 P680K2000-15 0,68 2000 700 6,0 12,5 18,0 15,0 N1,0K1250-15 1,0 1250 600 5,0 11,0 18,0 15,0 N1,0K1600-15 1,0 1600 650 6,0 12,5 18,0 15,0 N1,0K2000-15 1,0 2000 700 7,0 14,0 18,0 15,0 N1,5K1250-15 1,5 1250 600 5,0 11,0 18,0 15,0 N1,5K1600-15 1,5 1600 650 7,0 14,0 18,0 15,0 N1,5K2000-22 1,5 2000 700 6,0 15,0 26,5 22,5 N2,2K1250-15 2,2 1250 600 5,0 11,0 18,0 15,0 N2,2K1600-15 2,2 1600 650 8,0 15,0 18,0 15,0 N2,2K2000-22 2,5 2000 700
