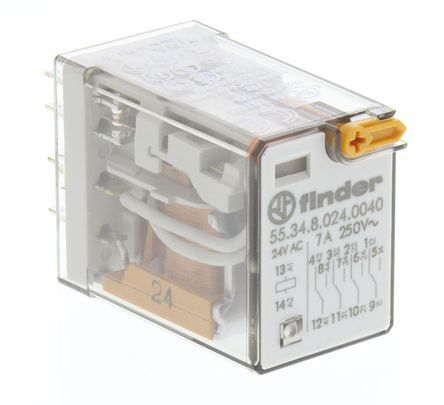

Ind. Relay 4PDT 7A 24VAC 190R F5534-24AC

Varenummer:
137-616
Varekode:
55.34.8.024.0040
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 80,00 80.0 DKK kr 80,00 Inklusiv moms

kr 80,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 75,00
v/50
Kr. 62,50
v/100
Kr. 56,25

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/99426/image_1920?unique=91e2051 https://elektroniklavpris.odoo.com/web/image/product.template/99426/image_1920?unique=91e2051

Gruppe: E6623
FINDER Industrial Relays
Series: 55
Contact: DPDT or 4PDT
Rated Current: 10A and 7A

Features

• Lockable test button and mechanical flag indicator
• F5534-24LD: Lockable test button and LED
• Solder/plug-in terminals 2,0x0,5mm
• Relays protection class RTI
Technical Specifications

Contact
F5532-_: DPDT
F5534-_: 4PDT
Contact Material
F5532-_/34-_: AgNi
F5534-_G: AgNi+Au (5µm)
Rated Current
F5532-_: 10A
F5534-_: 7A
Max. Switching Current
F5532-_: 20A
F5534-_: 15A
Max. Switching Voltage
F5532-_: 400V AC
F5534-_: 250V AC
Max. Switching Power
F5532-_: 2500VA
F5534-_: 1750VA
Operate/Release Time
F5532-_: 10/5ms
F5534-_: 11/3ms
Testing Voltage
Coil/Contact: 4000V
Opening Contact: 1000V
Lifetime
Mechanical (AC/DC): 20x106 / 50x106 Operations
Electrical
F5532-_: 200x103 Operations
F5534-_: 150x103 Operations
Operating Temperature: -40...+85°C





Coil Data






Part Nr. UN Umin. Umax. IN PN RN
F55_ [V] [V] [V] [mA] [mW/VA] Ohm
32-24 24V DC 19,2 26,4 40 1000 600
32-AC230 230V AC 184 253 6 1,5 17000
34-12 12V DC 9,6 13,2 86 1000 140
34-24_ 24V DC 19,2 26,4 40 1000 600
34-AC230_ 230V AC 184 253 6,3 1,5 17000
UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C





Note
• Assembly by direct soldering in the PCB or
• Terminal socket F9414 with retaining clip F09451, see product group E6625, or
• Screw socket DIN-rail assembly F9474 (with retaining clip F09471) or F94843 (with retaining clip F09491), see product group E6625





Labelling





Approvals





Terms of Delivery
Minimum order quantity: 1 PKU = 5 pieces





Manufacturer




Kontakt os

Stregkode: 137616
Intern reference: 137616
Varekode: 55.34.8.024.0040
