MKT Capacitor 10nF 1000V 10% P15
Varenummer:
137-399
Varekode:
MKS4N010K1000-15
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C5563

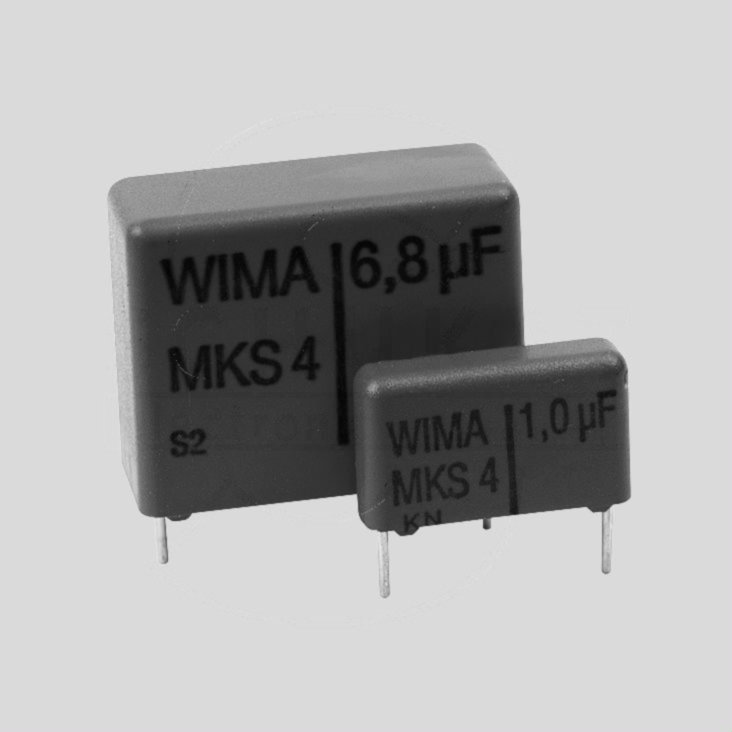

WIMA MKT Film Capacitors
Series: MKS4
Style: Bulk
Rated Voltage: 400/630V DC
Tolerance: 10%
Pitch: 7,5...27,5mm
|
Features |
| • Dielectric: polyethylene-terephthalate (PET) film • Vacuum-deposited capacitor electrodes • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94 V-0 • Terminations: tinned wire • High volume/capacitance ratio and reduced base • Self-healing |
 |
|
Typical Applications |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing. |
|
|
Technical Specifications |
|
|||||||||||||||||||
| Rated Voltages (UN): | see Table | Test Voltage (2s): | 1,6xUN | Capacitance tolerances: | ±10% | Operating temperature range: | -55...+100°C | Climatic test category IEC: | 55/100/56 | Insulation resistance | C£330nF: | ³30000MW | C>330nF: | ³10000s | Reliability (failure rate) (40°C, 0,5 x UN): | 2,0 fit1) | |||
| 1)
1fit = 1x10 -9 Failure Components/Hour |
|||||||||||||||||||
|
|||||||||||||||||||

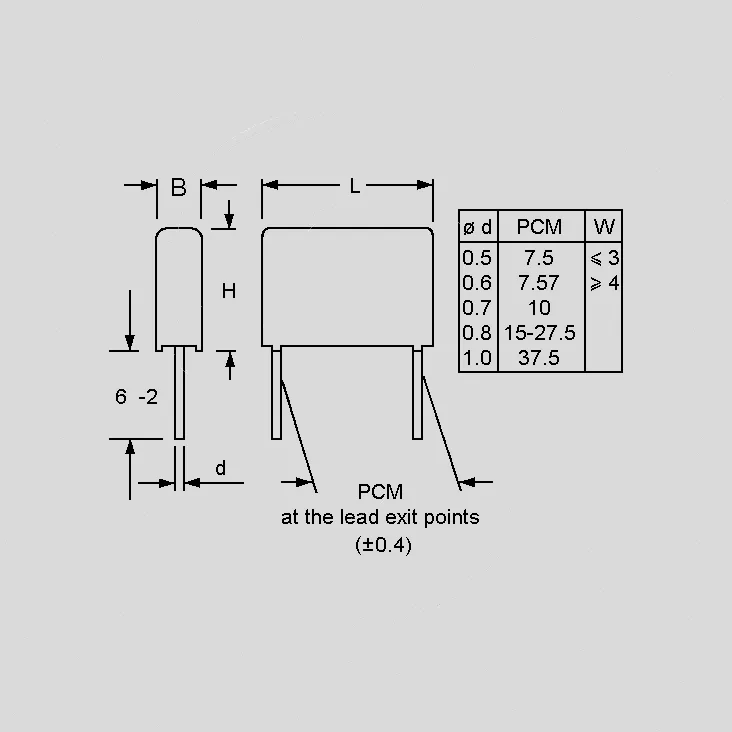

| Part Nr. | CN | UN | Ueff | B | H | L | RM | MKS4_ | [nF/µF] | [V DC] | [V AC] | [mm] | [mm] | [mm] | [mm] | N010K630-7 | 10 | 630 | 400 | 3,0 | 8,5 | 10 | 7,5 | N015K630-7 | 15 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N022K630-7 | 22 | 630 | 400 | 4,5 | 9,5 | 10,3 | 7,5 | N047K630-7 | 47 | 630 | 400 | 5,7 | 12,5 | 10,3 | 7,5 | N100K400-10 | 100 | 400 | 200 | 5,0 | 11,0 | 13,0 | 10,0 | N100K630-15 | 100 | 630 | 400 | 6,0 | 12,5 | 18,0 | 15,0 | N220K400-15 | 220 | 400 | 200 | 6,0 | 12,5 | 18,0 | 15,0 | N220K630-15 | 220 | 630 | 400 | 8,0 | 15,0 | 18,0 | 15,0 | N330K400-15 | 330 | 400 | 200 | 8,0 | 15,0 | 18,0 | 15,0 | N470K400-22 | 470 | 400 | 200 | 6,0 | 15,0 | 26,5 | 22,5 | N470K630-22 | 470 | 630 | 400 | 10,5 | 19,0 | 26,5 | 22,5 | N680K400-22 | 680 | 400 | 200 | 7,0 | 16,5 | 26,5 | 22,5 | U1.0K400-22 | 1,0 | 400 | 200 | 10,5 | 19,0 | 26,5 | 22,5 | U1.0K630-27 | 1,0 | 630 | 400 | 11,0 | 21,0 | 31,5 | 27,5 | U1.5K400-27 | 1,5 | 400 | 200 | 11,0 | 21,0 | 31,5 | 27,5 | U2.2K400-27 | 2,2 | 400 | 200 | 11,0 | 21,0 | 31,5 | 27,5 | ||||||||
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pulse Rise Time |
| CN | F400V | F630V | [V/µs] | [V/µs] | 10nF...22nF: | 38/380 | 40/400 | 33nF...68nF: | 25/250 | 32/320 | 100nF...220nF: | 15/150 | 17/170 | 330nF...680nF | 10/100 | 13/130 | 1,0µF...2,2µF | 9/90 | 13/130 | ||||
| F400V = Pulse Rise Time for 400V, F630V = Pulse Rise Time for 630V | |||||||||||||||||||||||
|
|||||||||||||||||||||||
|
Dissipation Factor Tand (20°C) |
|
|||||||||||||||||||||||
| Measured at | 1kHz | 10kHz | 100kHz | C£100nF | £8x10-3 | £15x10-3 | £30x10-3 | 100nFC1µF | £8x10-3 | £15x10-3 | - | C>1µF | £10x10-3 | - | - | ||||||||
|
|||||||||||||||||||||||
| Labelling |
| Marking: colour red, marking black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces 470nF...2,2µF: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
