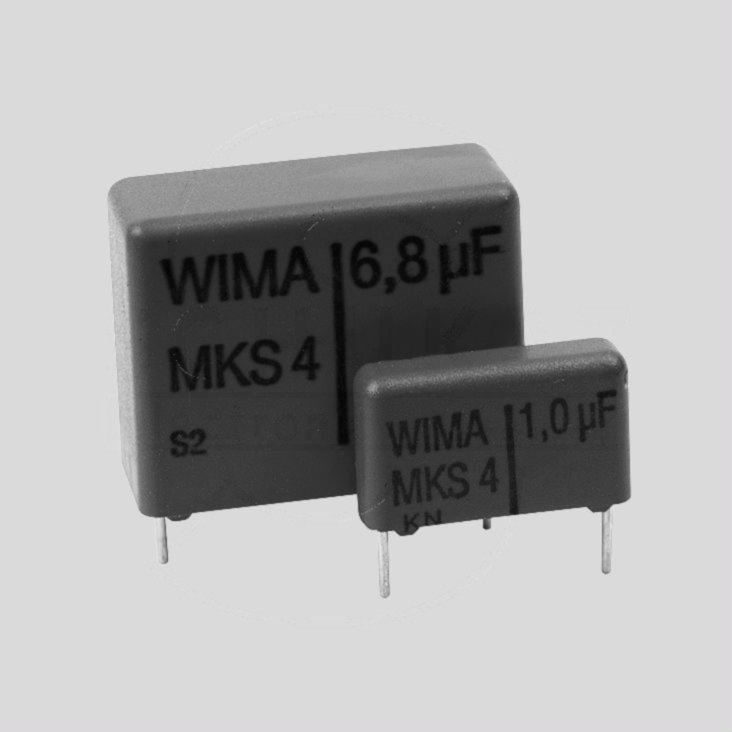

MKT Capacitor 6,8uF 100V 10% P27
Varenummer:
137-327
Varekode:
MKS4U6,8K100-27
Vægt:
0 g
Lagerstatus:
Ikke på lager
|
Features |
| • Dielectric: polyethylene-terephthalate (PET) film • Vacuum-deposited capacitor electrodes • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire • High volume/capacitance ratio and reduced base • Self-healing |
 |
|
Typical Applications |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing. |
|
|
Technical Specifications |
|
|||||||||||||||||||
| Rated Voltages (UN): | 100V DC | Test Voltage (2s): | 1,6xUN | Capacitance tolerances: | �10% | Operating temperature range: | -55...+100°C | Climatic test category IEC: | 55/100/56 | Insulation resistance | C�330nF: | �15000MW | C>330nF: | �5000s | Relliability (failure rate) (40°C, 0,5 x UN): | 2,0 fit1) | |||
| 1)
1fit = 1x10 -9 Failure Components/Hour � |
|||||||||||||||||||
|
|||||||||||||||||||
| Part Nr. | CN | Ueff | B | H | L | RM | MKS4_ | [nF/�F] | [V AC] | [mm] | [mm] | [mm] | [mm] | N100K100-7 | 100 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | N150K100-7 | 150 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | N220K100-7 | 220 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | N330K100-7 | 330 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | N470K100-7 | 470 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | N680K100-7 | 680 | 63 | 2,5 | 7,0 | 10,0 | 7,5 | U1.0K100-7 | 1,0 | 63 | 5,7 | 12,5 | 10,3 | 7,5 | U1.5K100-15 | 1,5 | 63 | 7,0 | 14,0 | 18,0 | 15,0 | U2.2K100-15 | 2,2 | 63 | 8,0 | 15,0 | 18,0 | 15,0 | U3.3K100-22 | 3,3 | 63 | 7,0 | 16,5 | 26,5 | 22,5 | U4.7K100-22 | 4,7 | 63 | 10,5 | 19,0 | 26,5 | 22,5 | U6.8K100-22 | 6,8 | 63 | 10,5 | 19,0 | 26,5 | 22,5 | U010K100-27 | 10 | 63 | 13,0 | 24,0 | 31,5 | 27,5 | U015K100-27 | 15 | 63 | 13,0 | 24,0 | 31,5 | 27,5 | U022K100-27 | 22 | 63 | 15,0 | 26,0 | 31,5 | 27,5 | |||||||
| CN = Rated Capacitance, Ueff = RMS Voltage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pulse Rise Time |
| CN | F100V | � | � | [V/�s] | � | 10nF...22nF: | 30/300 | � | 33nF...68nF: | 15/150 | � | 100nF...220nF: | 12/120 | � | 330nF...680nF | 9/90 | � | 1,0�F...2,2�F | 5/50 | � | 3,3�F...6,8�F | 3/30 | � | 10�F: | 2,5/25 | � | |||
| F100V= Pilse Rise Time for 100V | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
Dissipation Factor Tand (20°C) |
|
|||||||||||||||||||||||
| � | � | Measured at | � | � | 1kHz | 10kHz | 100kHz | C�100nF | �8x10-3 | �15x10-3 | �30x10-3 | 100nFC1�F | �8x10-3 | �15x10-3 | - | C>1�F | �10x10-3 | - | - | ||||
|
|||||||||||||||||||||||
| Labelling |
| Marking: colour red, marking black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces 4,7�F...22�F: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
