Diode/Diode 180A 1200V TO240AA

Varenummer:
137-324
Varekode:
MDD95-12N1B
Vægt:
100 g
Lagerstatus:
Lager: 2 stk.

kr 215,75 215.75 DKK kr 215,75 Inklusiv moms kr 269,69

kr 215,75 Inklusiv moms kr 269,69

Anmod os om en pris

v/5
Kr. 237,26

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/99134/image_1920?unique=cec0dd0 https://elektroniklavpris.odoo.com/web/image/product.template/99134/image_1920?unique=cec0dd0

Gruppe: V8435
IXYS Thyristor-/Diode-Modules up to 400A
Series: MCC_, MCD_, MDD_

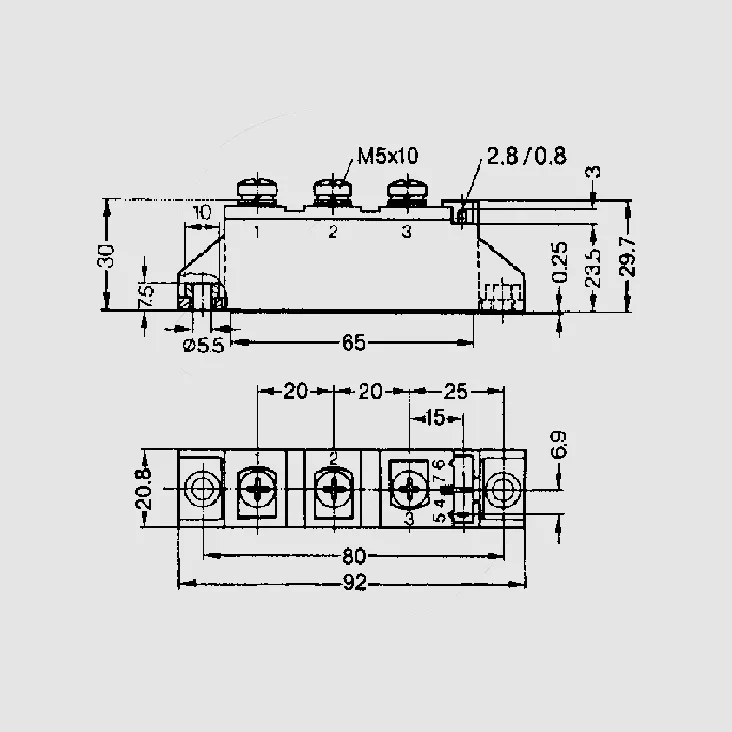

Case: TO240AA, C32, Y1-CU

Technical Specifications
            Part Nr. URRM IT(RMS) IT(AV) @TC rT   [V] [A] [A] [°C] [mW] MCC26-12IO1B 1200 50 27 85 11,0 MCC26-16IO8B 1600 50 27 85 11,0 MCC44-12IO1B 1200 80 49 85 5,3 MCC44-16IO1B 1600 80 49 85 5,3 MCC44-18IO8B 1800 80 49 85 5,3 MCC56-12IO8B 1200 100 60 85 3,7 MCC56-16IO8B 1600 100 60 85 3,7 MCC56-18IO1B 1800 100 60 85 3,7 MCC72-12IO1B 1200 180 85 85 3,2 MCC72-16IO8B 1600 180 85 85 3,2 MCC95-08IO1B 800 180 116 85 2,4 MCC95-16IO1B 1600 180 116 85 2,4 MCC162-08IO1 800 300 181 85 1,15 MCC200-16IO1 1600 340 216 85 1,0 MCC224-22IO1 2200 400 240 85 0,76 MCD26-08IO8B 800 50 27 85 11,0 MCD26-12IO1B 1200 50 27 85 11,0 MCD56-08IO8B 800 100 60 85 3,7 MCD200-16IO1 1600 340 216 85 1,0
URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, IT(AV) = Max. Average Forward Current, TC = Case Temperature, rT = Slope Resistance
Technical Specifications
            Part Nr. URRM IT(RMS) IF(AV) @TC rT   [V] [A] [A] [°C] [mW] MDD26-16N1B 1600 60 36 100 6,1 MDD44-16N1B 1600 100 59 100 4,3 MDD56-16N1B 1600 150 71 100 3,0 MDD95-16N1B 1600 180 120 105 1,95 MDD95-22N1B 2200 180 120 105 1,95
URRM = Max. Peak Recurrent Reverse Voltage, IF(RMS) = Max. RMS Forward Current, IT(AV) = Max. Average Forward Current, TC = Case Temperature, rT = Slope Resistance
Note
Screws are not included in delivery, you will find suitable screws starting at product group G8111.
Additional Products
We will also deliver on request all other articles from IXYS, forward orders possible.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Articles in bold print in stock, other articles available on request.
Manufacturer
http://www.ixys.com
