OMRON RELAY, SMD, 2xskifte, 3VDC, 1A, 91R Højisoleret
Varenummer:
136-999
Varekode:
G6K2FY3DC
Vægt:
0 g
Lagerstatus:
Ikke på lager
Features
| • Subminiature surface mounting relay: very small

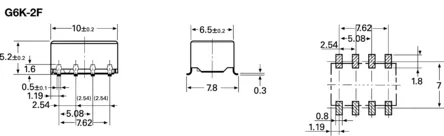

dimensions 5,2x6,5x10mm (HxWxL) and low weight of 0.7 g • Low profile 5,2mm • Low coil power consumption with 100mW • Gold-plated silver alloy bifurcated contacts for high contact reliability |
 |
|
Technical Specifications |
|
|
| Contact: | DPDT |
| Contact Material: | Ag (Au-alloy) |
| Rated Current: | 1A |
| Max. Switching Voltage: | 125V AC / 60V DC |
| Power Consumption:: | 100mW |
| Operate/Release Time: | 3/3ms |
| Testing Voltage | |
| Coil/Contact (1min.): | 1500V AC |
| Open Contacs(1min.): | 1000V AC |
| Contact/Contact (1min.): | 750V AC |
| Lifetime | |
| Min. Mechanical: | 50x106Operations |
| Min. Electrical: | 100x103Operations |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 0,7g |
|
|
|
Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | mW | [Ohm] | |
| G6K2F(Y)-5 | 5 | 4 | 0,5 | 100 | 237 |
| G6K2F(Y)-12 | 12 | 9,6 | 1,2 | 100 | 1315 |
| G6K2F(Y)-24 | 24 | 19,2 | 2,4 | 100 | 5220 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
|
|||||
| Norms |
| EN60950 |
|
| Approvals |
  |
|
| Additional Products |
| Also available on request: relays with rated voltages of 3,0 and 4,5V DC. |
|
Stregkode:
807-4100
Intern reference:
136999
Varekode:
G6K2FY3DC
