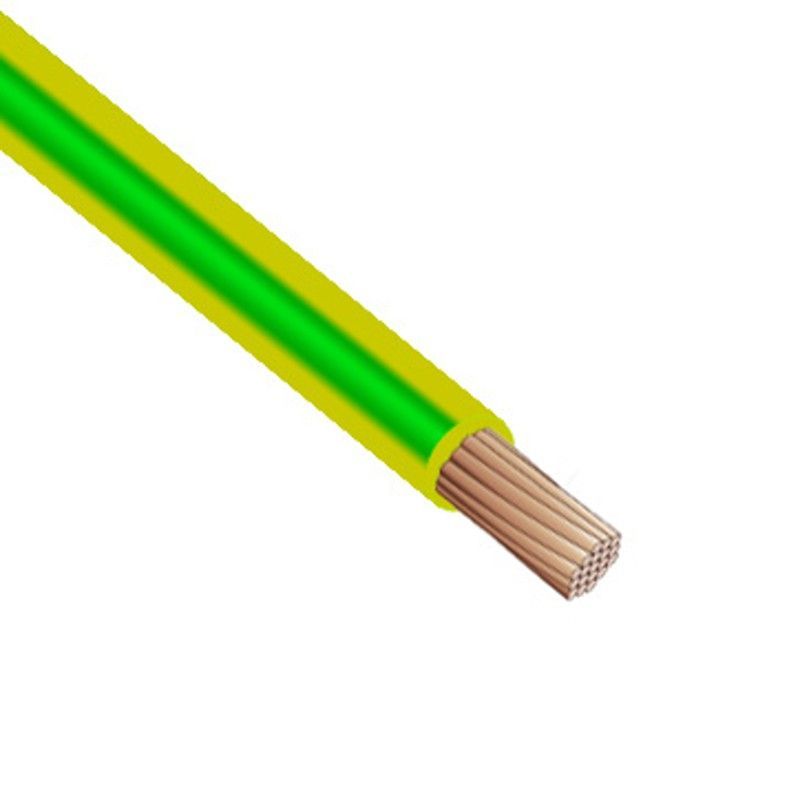

PVC-ledning H07V-K 25mm² Gul/Grøn
Tekniske data
| Kabeltype | Litzetråd |
| Tværsnit | 25.00 mm² |
| Farve | Gul/grøn |
| Nominelspænding | 750 VAC |
| Udførelse | Silicon free |
| Ø mantel | 9.3 mm |
| Leder | Blank kobbertråd, finkordelig |
| Prøvespænding | 2.5 kV |
| Afskærmning | uden skærm |
| Orginalforpakning | 100 m |
| Lederisolering | PVC |
| Temperatur, maks | +70 °C |
| Temperatur, min | -5 °C |
| Temperaturområde | -5...+70 °C |
| Details | H07V-K |
PVC single cores to DIN VDE 0281 part 3, HD 21.3 S3 and IEC
60227-3
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Bare copper fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl.
5, HD 383 and IEC 60228 cl. 5
PVC core insulation, compound TI1 to DIN VDE 0281 part 3, HD 21.3
S3 and IEC 60227-3
Core Identification with nominal voltage U0/U 450/750 V
The following colours are recommended (only single colour): black,
white, blue, grey, brown, red, orange, turquoise, violet and
pink
PVC self-extinguishing and flame retardant according to VDE
0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (equivalent DIN VDE
0472 part 804 test method B)
The materials used in manufacture are cadmium-free and contain no
silicone and free from substances harmful to the wetting properties
of lacquers
Stregkode:
136588
Intern reference:
136588
Varekode:
H07V-K 25 MM² YELLOW/GREEN
