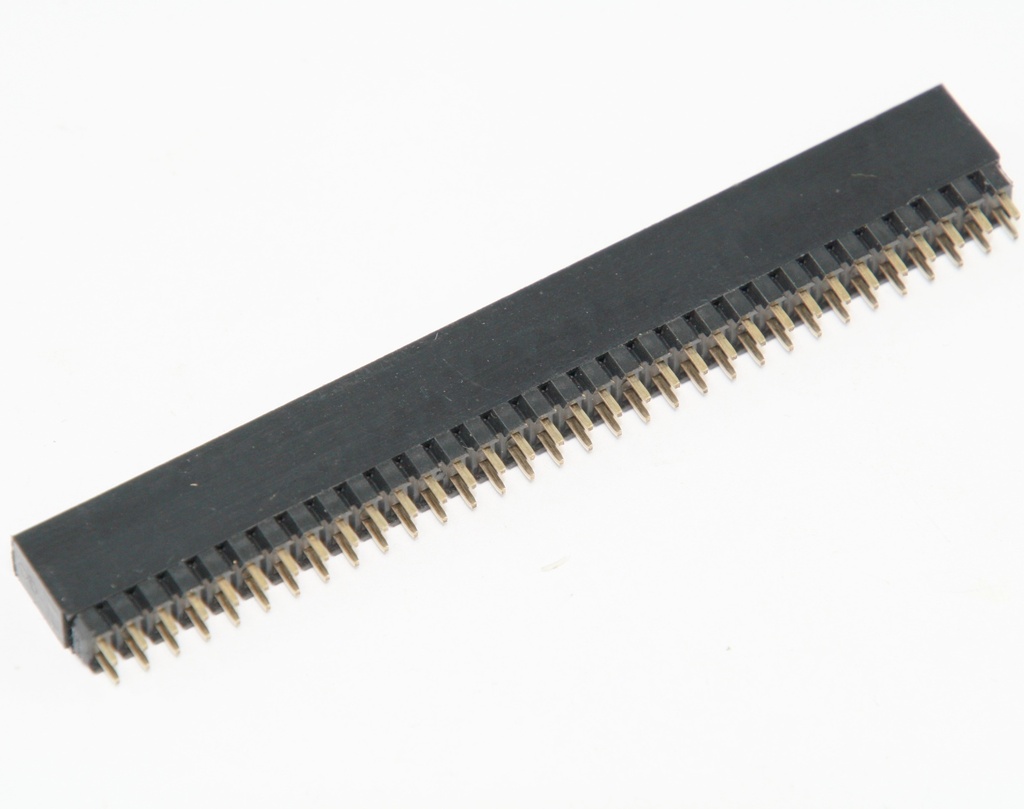

Female Header 2R Straight 2x32-Pole
Varenummer:
136-471
Varekode:
CB96642V100
Vægt:
0 g
Lagerstatus:
Lager: 366 stk.
CB96642V100
Part Category: Connectors
Manufacturer: CviLux Corporation
Description: HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,LOCKING,BLACK
Manufacturer: CviLux Corporation
Description: HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,LOCKING,BLACK
SPECIFICATIONS
| EU RoHS Compliant | Yes |
| Status | Contact Mfr |
| Connector Type | BOARD CONNECTOR |
| Body Breadth | 0.1970 inch |
| Body Depth | 0.4350 inch |
| Body Diameter | 3.22 inch |
| Body/Shell Style | PLUG |
| Contact Finish - Mating | AU ON NI |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mohm |
| Contact Style | SQ PIN-SKT |
| Dielectric Withstanding Voltage (V) | 1000VAC |
| Durability | 100 Cycles |
| Insertion Force-Max (N) | 7.1168 |
| Insulation Resistance | 1.00E9 ohm |
| Insulator Color | BLACK |
| Insulator Material | GLASS FILLED POLYESTER |
| Manufacturer Series | CB96 |
| Mating Contact Pitch (inch) | 0.1 |
| Mating Contact Row Spacing (inch) | 0.1 |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max (Cel) | 105 |
| PCB Contact Pattern | RECTANGULAR |
| PCB Contact Row Spacing (mm) | 2.54 |
| Plating Thickness (inch) | FLASH |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 3 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Length | 0.0910 inch |
| Terminal Pitch | 2.54 mm |
| Terminal Type | SOLDER |
| Total Number of Contacts | 64 |
| Withdrawl Force-Min (N) | .278 |
Stregkode:
136471
Intern reference:
136471
Varekode:
CB96642V100
