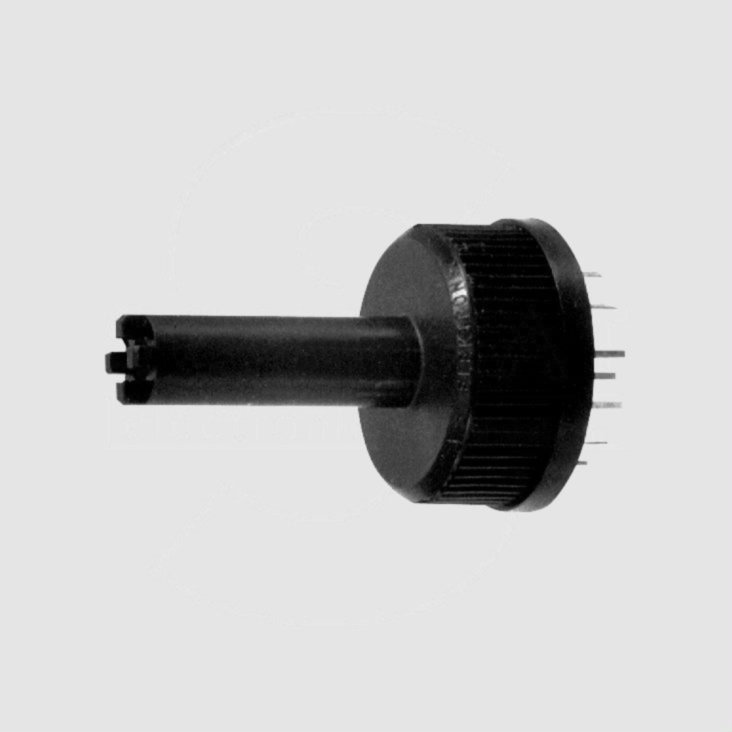

Drejeomskifter, Axis 1x12 PC 9341900112
Varenummer:
136-227
Varekode:
SB20-1L
Vægt:
10 g
Lagerstatus:
Ikke på lager
Drejeomskifter, Axis 1x12
PC 9341900112
Gruppe:
E2415
AB Rotary Switches
Series: 419
With 6mm Plastic Axis
Switching Type: Non-Shorting
Terminals: PC Solder Pins
| Technical Specifications |
 |
|||||||||||||||||||||||||||||||||
| Switching Capacity, Max.: | 5VA | Switching Voltage, Max. (AC/DC): | 150V | Switching Current, Max.: | 130mA | Non-Operative Current at TU = 20°C: | 3A | Test Voltage: | 1000V | Contact Resistance | New Value, Max.: | 25mW | > 15,000 Switching Operations, Max.: | 50mW | Insulation Resistance: | 1x109W | Capacitance Between Two Contacts, Max.: | 3pF | Switching Mode: | Non-Shorting | Actuating Force: | 2...4,5Ncm | Operating Life at Max. Switching Capacity, Min.: | 15,000 Switching | Insulation Material: | Plastic | Contacts: | Cu Alloy, Silver-plating | Switching Angle: | 30° | |||
|
|||||||||||||||||||||||||||||||||

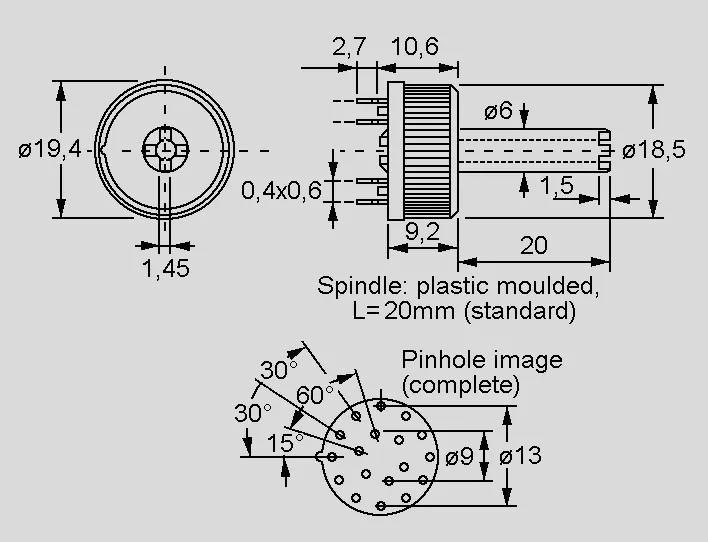

| Dimensions |
|
|||||
| Housing Height Encasing Lock Mechanism: | 10,6mm | Shaft Length: | 20mm | ||
|
|||||
| Part Nr. | Pole | Positions | SB20-1 | 1 | 12 | SB20-1L | 1 | 12 | SB20-2 | 2 | 6 | SB20-3 | 3 | 4 | |||
|
|||||||||||||||||
| Note |
| Contact Arrangement see product group E2411. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.abelektronik.com |
|
Datablad
Stregkode:
136227
Intern reference:
136227
Varekode:
SB20-1L
