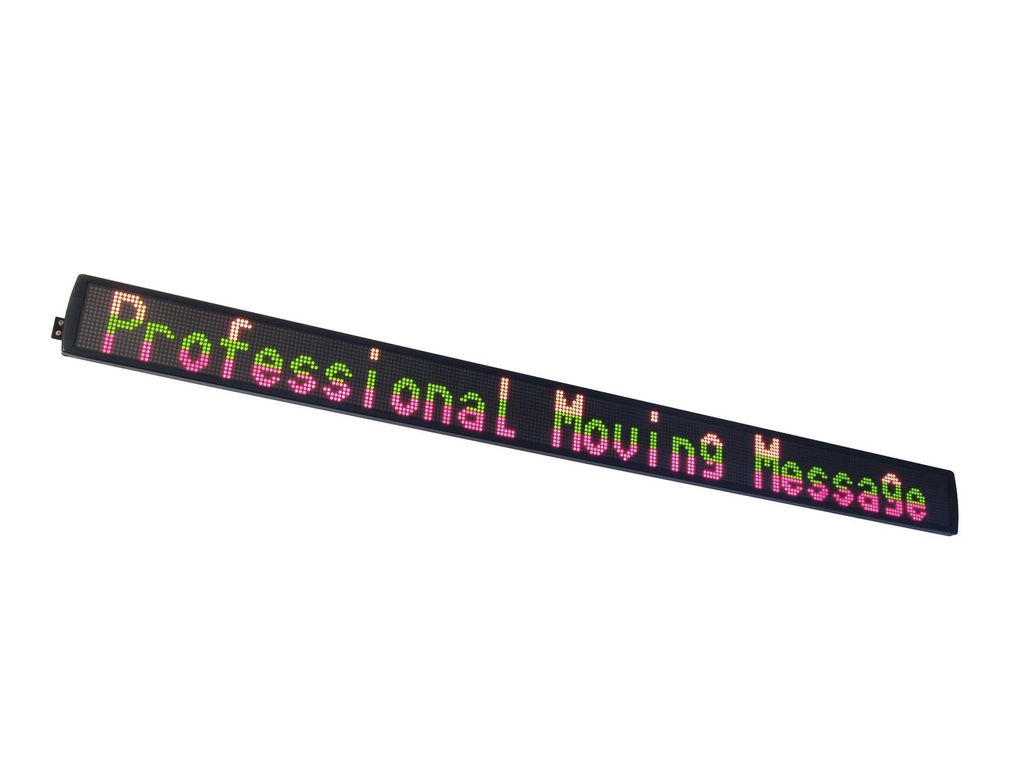

EUROLITE ESN 16x256 5mm LED red/green/yellow)
Varenummer:
134-109
Varekode:
ST80500125
Vægt:
10900 g
Lagerstatus:
Ikke på lager
- Godt 2 meter lang
- Large-scale information board for indoors and protected areas
- Ideal for welcome, announcements, special evetns, orientation etc.
- With 5-mm-LEDs for ideal readability from up to 25 meters distance
- Color and background color freely selectable via red/green/yellow LEDs
- High resolution with 54 mm character height per display line
- Double-line display with up to 42 visible characters per line
- 93 standard characters (letters/numbers) capitalized/small letters, symbols and language specific characters
- 14 fonts, 13 more fonts can be imported
- Fonts-manager for selecting different fonts, font sizes, letter cutting (bold) and for completely redesigning fonts
- Flash adjustable for emphasizing the message
- 50 different display effects (e. g. scroll up) freely selectable for In Mode and Out Mode
- 6 different speeds adjustable
- Display time of the message adjustable between 0 and 60 seconds
- Playlists of individual messages programmable
- With Timer-function (operation intervals and ignore times freely programmable)
- Permanent Flash-memory with 1 GB capacity
- Easy installation and comfortable operation via remote-control (optional)
- Installation clamps and wall mounting included in the delivery
- Software-CD included in the delivery for comfortable programming
- Time display in different formats (24 h, 12 h AM/PM, seconds, time zone)
- Date in differnt styles (DD.MM.YYYY, US/UK or MM.DD.YYYY)
- Selection of year, month or day of the week in letters or numbers
- Freely programmable graphic-patterns via Picture Manager
- Net Manager for operating several Moving Messages
- Interfaces via RS232 (serial) or Ethernet (TCP/IP-protocol)
- RS232-connection via RJ11 plug and 9-pin SUB-D socket
- 10 m data-cable for RS232-connection included in the delivery
- RS232-connection extendable to max. 20 m (optional)
- IP-address for Ethernet-control freely programmable
- Minimum system-requirements): CPU 500 MHz or higher, VGA-card with small font, 128 MB memory, 10 MB of free hard disc space, CD-Rom drive, free COM-port or Ethernet-port, up to Windows XP, mouse, monitor refresh rate 60 Hz or higher
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption: | 90 W |
| Remote control: | 2 x 1.5 V mignon batteries (type AA) |
| Display: | 5 mm Tri-Color LED-modules |
| Resolution: | 2 lines, 42 visible characters |
| Display-colors: | 8 colors, 4 background colors |
| Display-matrix (HxW): | 16 x 256 |
| Display-area (HxW): | 122 x 1952 mm |
| Character height: | 54 mm |
| Readability distance: | approx. 25 m |
| Memory-type: | Flash, permanent |
| Memory-capacity: | 186000 characters (1 MB) |
| No. of messages: | 93 with 2000 characters |
| Fonts: | 14 |
| Symbols: | 120 |
| Interfaces: | RS232, RS485, Ethernet TCP/IP |
| Max. cable-length: | 20 m (RS232) |
| Dimensions: | 158 x 2012 x 50 mm |
| Weight: | 10 kg |
| Ecodesign regulation: | Yes |
| Energy efficiency index: | None |
| Rated power: | 5.00 W |
| Energy consumption: | 5.00 kWh/1000h |
Datablad
Stregkode:
4026397406269
Intern reference:
134109
Varekode:
ST80500125
