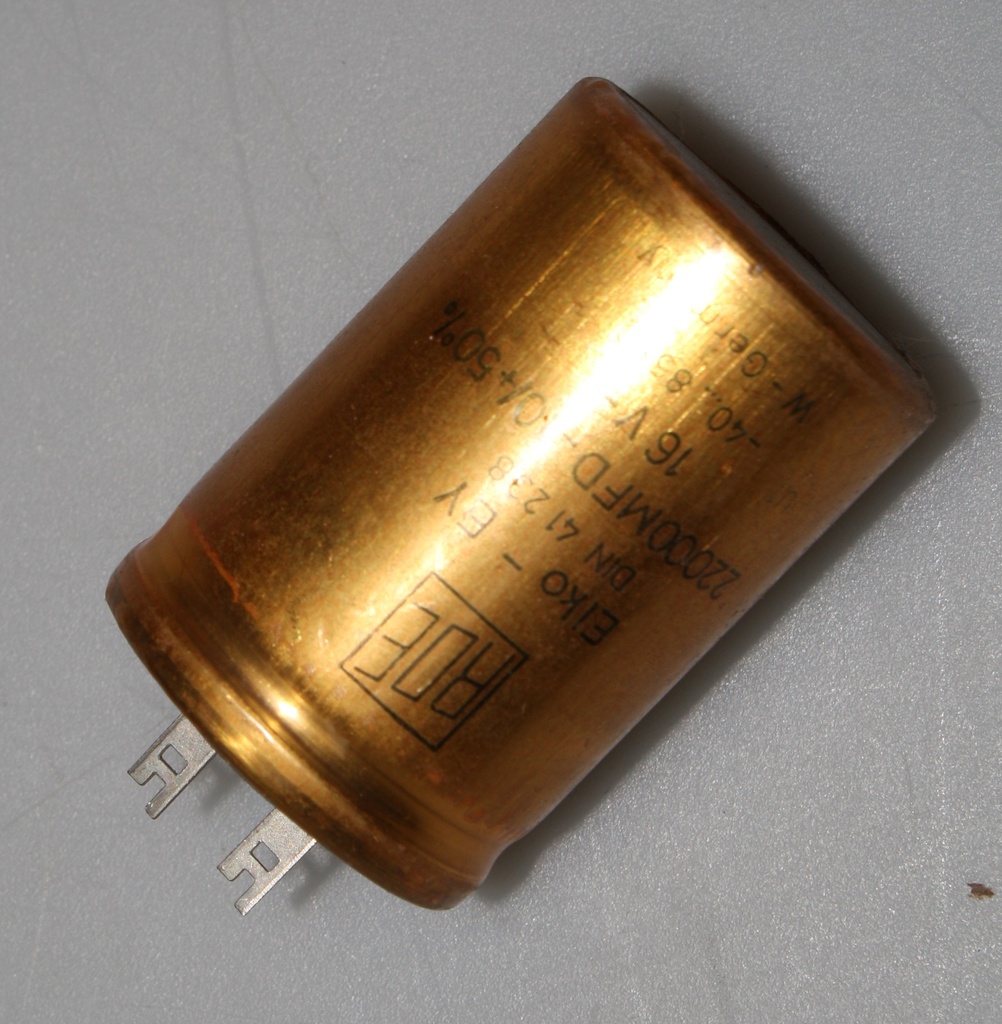

El-Capacitor 22000µF/16V-P10-35x52

Varenummer:

134-103

Varekode:

CS22000/16-35X52

Vægt:

0 g

Lagerstatus:

Ikke på lager

Denne kombination eksistere ikke.

Køb

CAPACITOR, 22000UF 16V
Capacitance: 22000µF
Capacitance Tolerance: ± 20%
Diameter: 35mm
ESR: 0.033ohm
Height: 52mm
Lead Spacing: 10mm
Lifetime @ Temperature: 12000 hours @ 85°C
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Product Range CAPACITOR, 22000UF 16V - VISHAY BC COMPONENTS: VISHAY - 056 PSM Series
Voltage Rating: 16V
AC Ripple Current @ 100Hz: 4.51A
Capacitance Tolerance ±: ± 20%
Capacitor Mounting: Through Hole

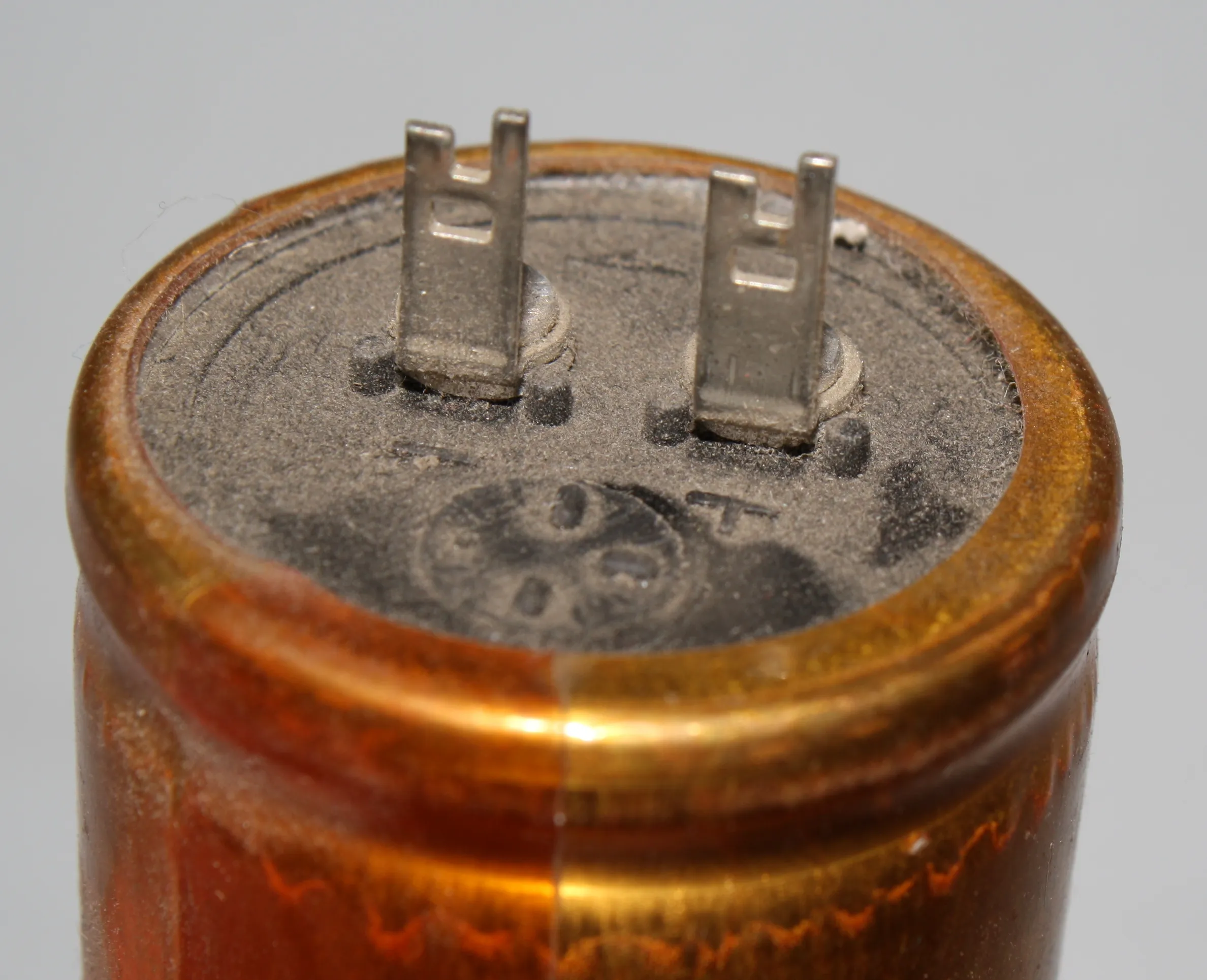

Capacitor Terminals: Quick Connect
Climatic Category: 40/085/56
ESR Frequency: 100Hz
ESR Temperature: 20°C
External Length / Height: 52mm
Frequency Tolerance: 100Hz
Leakage Current: 708µA
No. of Pins: 2
Operating Temperature Range: -40°C to +85°C
Operating life Time: 12000h
PCB Hole Diameter: 2mm
Ripple Current AC: 4.51A
Ripple Current Frequency: 100Hz
Ripple Current Temperature: 85°C
Tolerance +: 0.2%
Tolerance -: 0.2%
Voltage Rating DC Max: 16V
Voltage Rating V DC: 16V

Stregkode: 134103
Intern reference: 134103
Varekode: CS22000/16-35X52
