Encoder 12pulse
Varenummer:
133-774
Varekode:
EC12E1220405
Vægt:
0 g
Lagerstatus:
Lager: 3 stk.
Gruppe: C3625

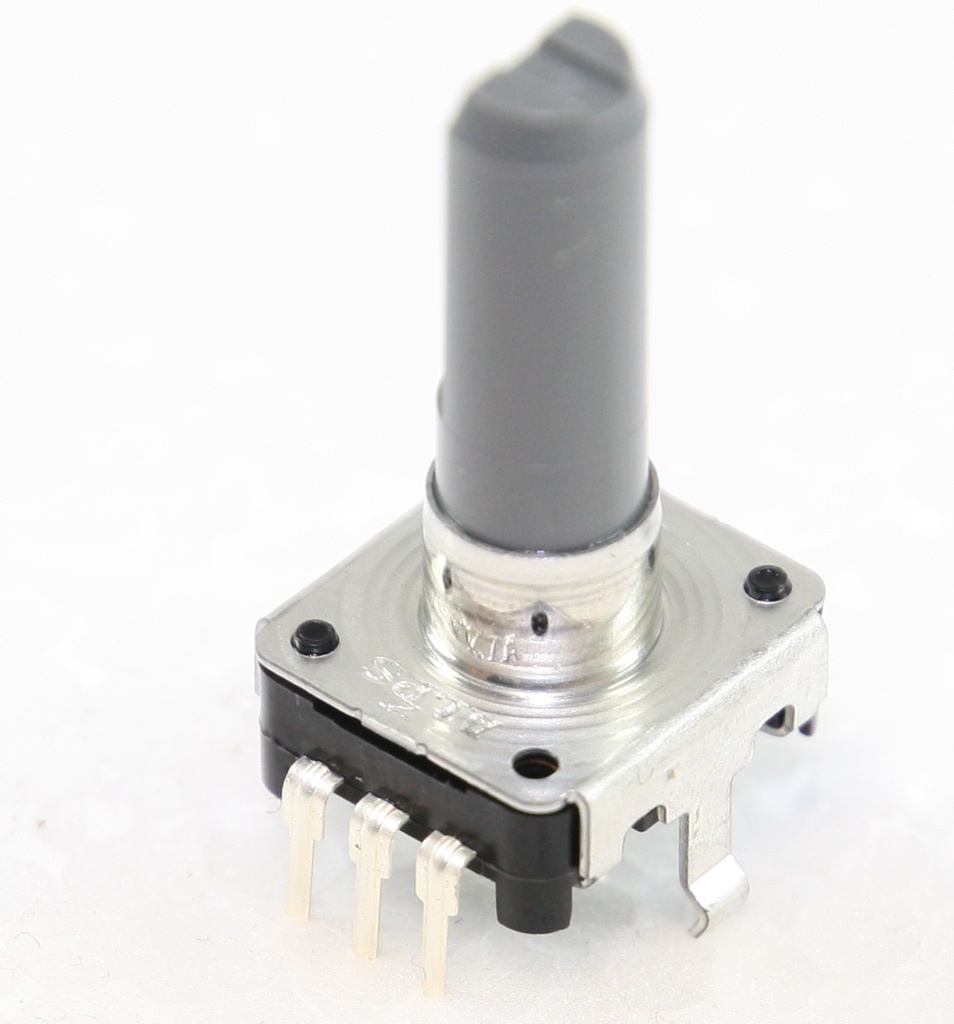

ALPS Incremental Encoder
Series: EC12
Vertical Mounting Form
optionally with Switch
Shaft: Plastic, Ø6mm
Housing: Ø12,4mm
ALPS Incremental Encoder
Series: EC12
Vertical Mounting Form
optionally with Switch
Shaft: Plastic, Ø6mm
Housing: Ø12,4mm
| Features |
| • Compact design • Number of pulse: 12,15 or 24 • Mechanical angles 360° • Optionally with push-on switch |
 |
| Technical Specifications |
|
|
| Rating Voltage: |
5V DC |
| Input Current |
|
| EC12E: |
0,5mA |
| EC12D: |
1mA |
| Insulation Resistance (Min.) |
|
| EC12E: |
10MW / 50V DC |
| EC12D: |
100MW / 250V DC |
| Dielectric Strength (1Min) |
|
| EC12E: |
50V AC |
| EC12D: |
300V AC |
| Operating Torque |
|
| EC12E_: |
3±2Nm*m |
| EC12D_: |
10±3Nm*m |
| Rotation Angle: |
360° |
| Lifetime: |
30x103 Operations |
| Switch Specifications |
|
| Contact |
SPST-NO |
| EC12D_: |
1mA / 5V DC |
| Temperature Range |
|
| EC12E: |
-10°C...+70°C |
| EC12D: |
-40°C...+85°C |
|
|
| Selection Table |
| Part Nr. |
Design |
Number |
Number |
Travel |
| EC12_ |
of Detent |
of Pulse |
of Switch |
|
| [mm] |
||||
| E1220405 | plain collar |
12 |
12 |
- |
| E24204A9 | plain collar |
24 |
24 |
- |
| E1220813 | with bushing |
12 |
12 |
- |
| E2420801 | with bushing |
24 |
24 |
- |
| D1564402 | push-on switch |
30 |
15 |
0,5 |
|
||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Articles in bold print in stock, other articles available on request, delivery time approx. 16 weeks. |
|
| Manufacturer |
 |
| http://www.alps.com |
|
