Encoder 15 pulse with push Switch 0,5mm.
Varenummer:
133-772
Varekode:
EC11E15244G1
Vægt:
0 g
Lagerstatus:
Lager: 18 stk.
Gruppe: C3623

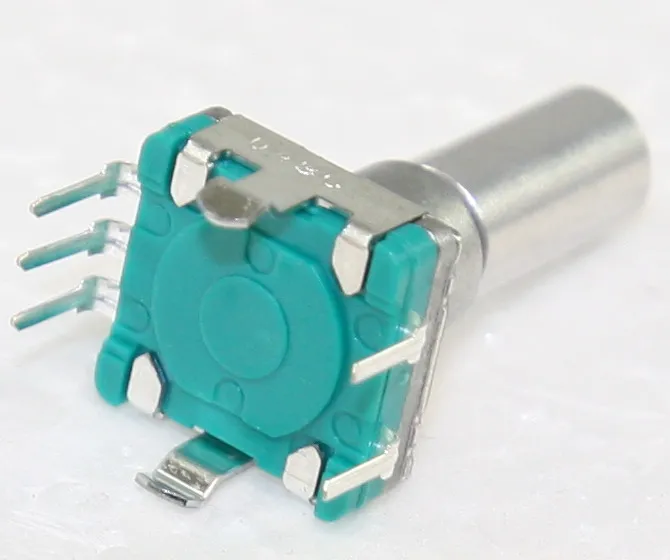

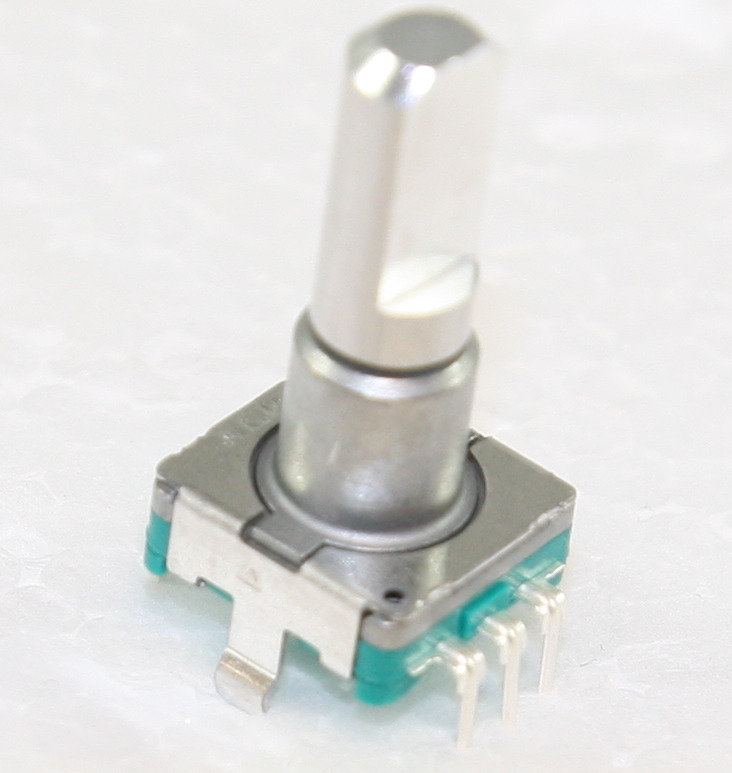

ALPS Incremental Encoder
Series: EC11
Vertical Mounting Form
optionally with Switch
Shaft: Metal, Ø6mm
Housing: Ø11,7mm
| Features |
| • Compact design • Number of pulse: 15 or 9 • Mechanical angles 360° • for THT or SMD mounting • optionally with push-on switch |
 |
| Technical Specifications |
|
|
| Rating Voltage: | 5V DC |
| Input Current: | 10mA |
| Insulation Resistance (Min.): | 100MW / 250V DC |
| Dielectric Strength(1Min): | 300V DC |
| Operating Torque | |
| EC11E_: | 10Nm*m |
| EC11J_: | 12Nm*m |
| Rotation Angle: | 360° |
| Lifetime | |
| EC11E_: | 15x102 Operations |
| EC11J_401: | 104 Operations |
| Switch Specifications: | |
| Contact | SPST-NO |
| EC11E_: | 0,5A / 16V DC |
| EC11J_: | 0,1A / 5V DC |
| Temperature Range | |
| EC11E: | -30°C...+85°C |
| EC11J: | -40°C...+85°C |
|
|
| Selection Table |
| Part Nr. | Design | Number | Number | Travel |
| EC11_ | of Detent | of Pulse | of Switch | |
| [mm] | ||||
| E15204A3 | THT | 30 | 15 | - |
| E15244G1 | THT | 30 | 15 | 0,5 |
| J1520401 | SMD | 30 | 15 | - |
| J1524401 | SMD | 30 | 15 | 0,5 |
|
||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Articles in bold print in stock, other articles available on request, delivery time approx. 16 weeks. |
|
| Manufacturer |
 |
| http://www.alps.com |
|
