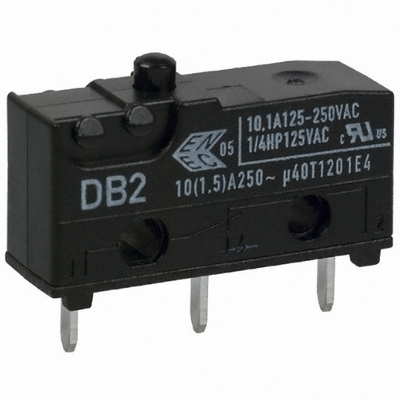

CHERRY MICROSWITCH, SPDT, PLUNGER ACTUATOR
Varenummer:
132-982
Varekode:
DB2C-C1AA
Vægt:
20 g
Lagerstatus:
Ikke på lager
- MICROSWITCH, SPDT, PLUNGER ACTUATOR
- Contact Configuration: SPDT
- Microswitch Type: Snap Action
- Actuator Style: Plunger
- Operating Force Max: 250gf
- Contact Voltage AC Nom: 250V
- Contact Current Max: 10.1A
- Switch Terminals: Solder
- Actuation Type: Plunger
- Actuator Type: Plunger
- Approval Bodies: ENEC, KEMA-KEUR
- Approval Category: UL Recognised
- Contact Current AC: 10A
- Contact Current AC Max: 10.1A
- Contact Voltage AC Max: 250V
- Differential Travel Max: 0.10mm
- External Depth: 6.5mm
- External Length / Height: 9mm
- External Width: 20mm
- Fixing Centres LxW: 9.5mm
- Flammability Rating: UL 94V- O
- IP / NEMA Rating: IP50
- Material: PET
- No. of Electrical Operations: 6000
- No. of Poles: 1
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Over Travel Min: 0.6mm
- Pre-travel: 1.0mm
- Series: DP
- Switch Case: PET (Polyethylene Terephthalate)
- Switch Operation: -
- Terminal Type: PCB Straight
CHERRYDBmicroswitch SNAP ACTIONwithout leverSPDT10A / 250V AC0.1A / 80V DCON-(ON)211,3 x 0,5mmmm connectors7.3x20x6.5mm15000000 cycles-40...85°C10000 cyclessilver platedblack
- Gross weight: 5 g
Stregkode:
290-0463
Intern reference:
132982
Varekode:
DB2C-C1AA
