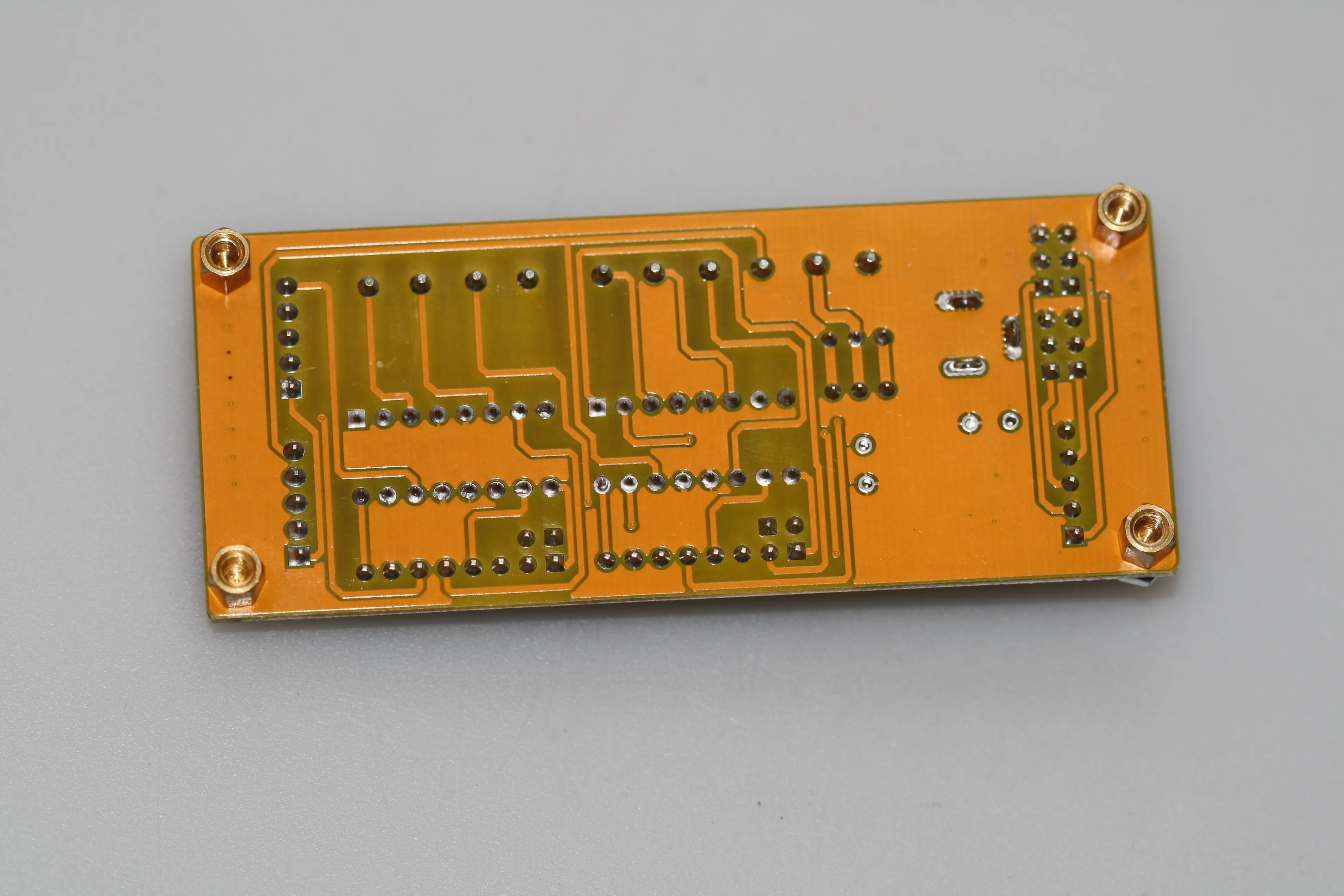

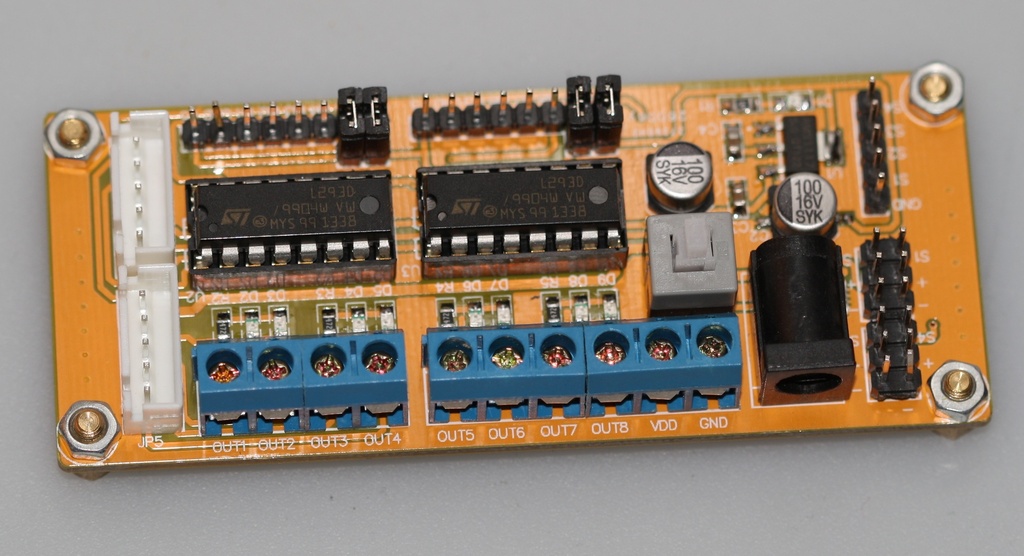

4 DC Motor Drive module

Description:

This module uses the L293D chip and can drive 4 DC motors, and there is a 2 channel stepper motor port

Driver chips: L293D Dual H-Bridge Motor Driver IC
Drive part of the input voltage Vs: +5 V ~ +16 V
Drive part peak current Io: 1A
Drive part continuous current: 600mA
Logical part of the operating current range: 0 ~ 36mA
Control signal input voltage range (IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8): Low: -0.3V ≤ Vin ≤ 1.5V High: 2.3V ≤ Vin ≤ Vss
Enable signal input voltage range (EN1 EN2 EN3 EN4): Low: -0.3V ≤ Vin ≤ 1.5V (control signal is invalid) High: 2.3V ≤ Vin ≤ Vss (control signal active)
Maximum power consumption: 20W (when the temperature T = 25 Celsius )
Drive Type: Dual high-power H-bridge driver
Size: 90mm × 37mm
