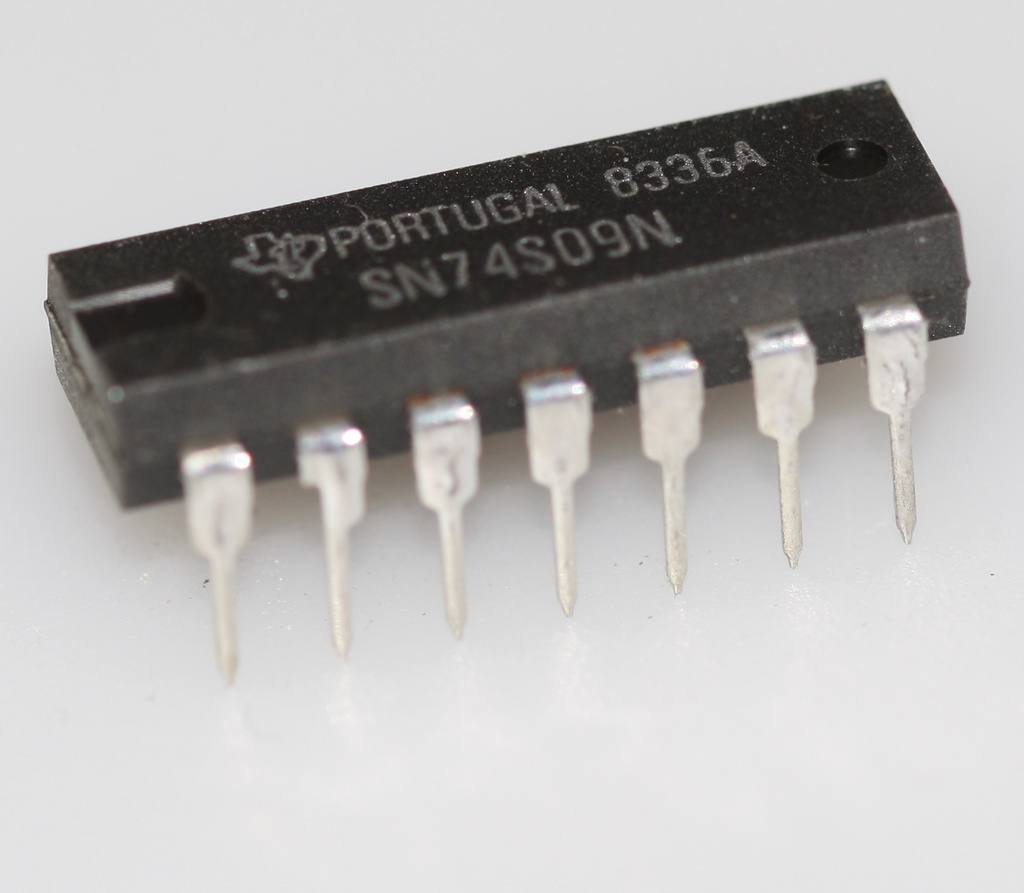

Quad 2-input AND gate with open collector out DIP-14
Varenummer:
132-501
Varekode:
74S09N
Vægt:
0 g
Lagerstatus:
Lager: 48 stk.
| Texas Instruments | |
| Logic Gates | |
| RoHS: | Details |
| Single-Function Gate | |
| AND | |
| S | |
| 4 Gate | |
| 2 Input | |
| 1 Output | |
| 0 mA | |
| 20 mA | |
| 32 ns | |
| 5.25 V | |
| 4.75 V | |
| 0 C | |
| + 70 C | |
| SMD/SMT | |
| PDIP-14 | |
| Tube | |
| Brand: | Texas Instruments |
| Function: | AND |
| Height: | 4.57 mm |
| Input Type: | TTL |
| Length: | 19.3 mm |
| Logic Type: | 2-Input AND |
| Number of Bits: | 4 bit |
| Operating Supply Current: | 33 uA |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | 0 C to + 70 C |
| Output Type: | TTL |
| Product Type: | Logic Gates |
| Series: | SN74S09 |
| 25 | |
| Subcategory: | Logic ICs |
| Width: | 6.35 mm |
| Unit Weight: | 1 g |
Datablad
Stregkode:
132501
Intern reference:
132501
Varekode:
74S09N
