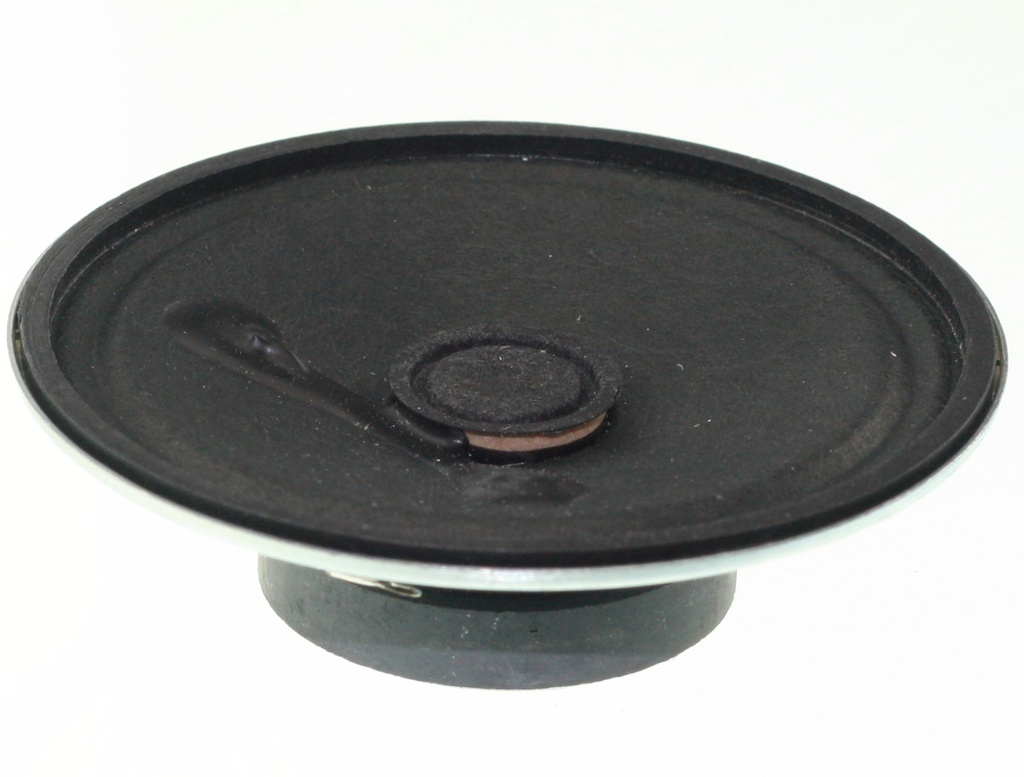

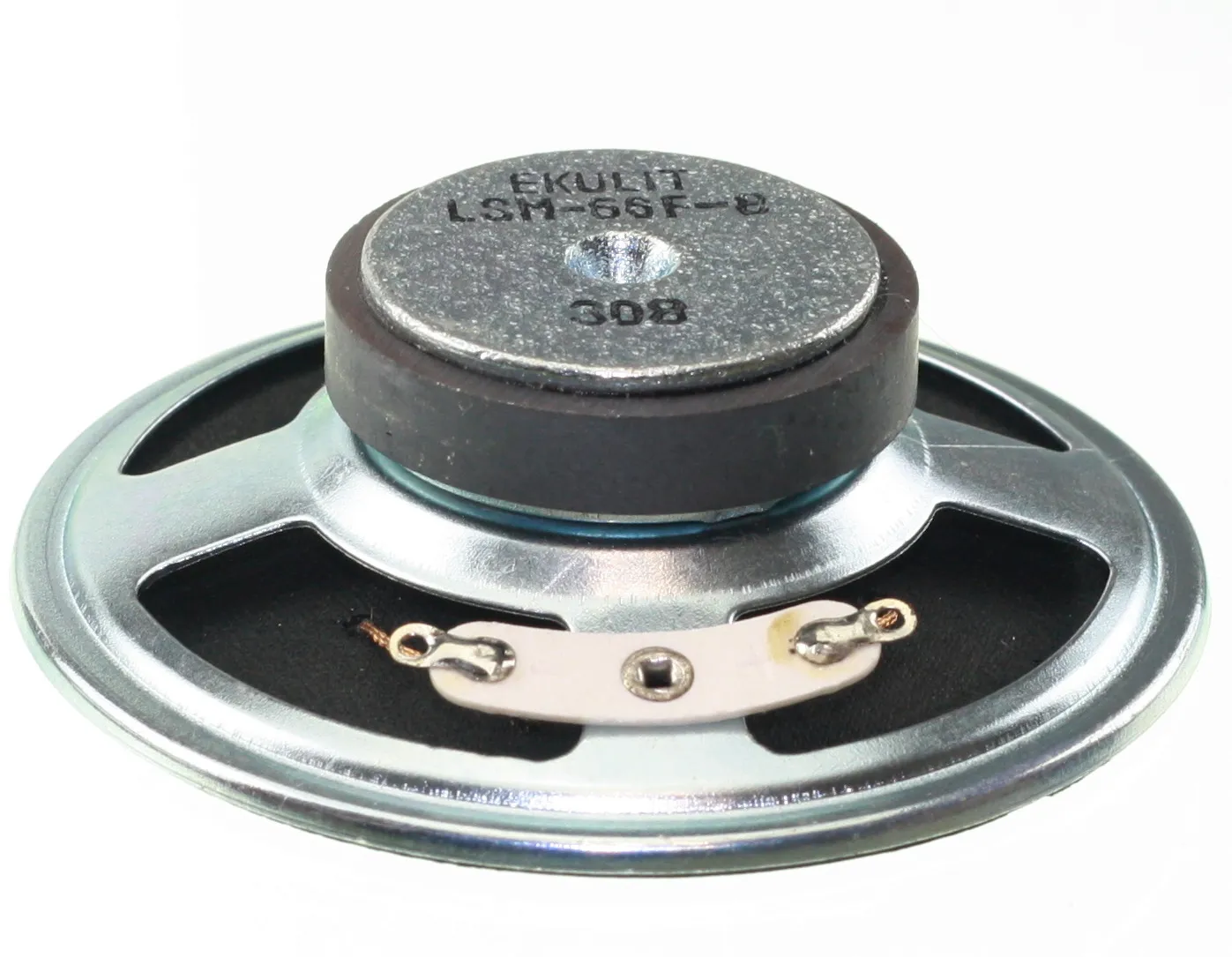

Miniature Speaker 0,5W 8 Ohm Ø=66mm

Varenummer:
132-116
Varekode:
LSM-66F
Vægt:
50 g
Lagerstatus:
Ikke på lager

kr 14,63 14.63 DKK kr 14,63 Inklusiv moms

kr 14,63 Inklusiv moms

Anmod os om en pris

v/10
Kr. 15,24
v/100
Kr. 13,44

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/116210/image_1920?unique=ce8ca99 https://elektroniklavpris.odoo.com/web/image/product.template/116210/image_1920?unique=ce8ca99

Features

• High-performance Mini Speaker
• Versatile usable
• Soldering Terminal

Part No. Design Mounting Membrane
LSM-20M/N Round Panel Mounting Mylar
LSF-28M/NT Round Panel Mounting Mylar
LSM-28M/NT Round Panel Mounting Mylar
LSM-S19K Rectangular Frame with trough-holes Tissue
LSM-36M/B Round Panel Mounting Mylar
LSF-28M/NT-B Round Flange with through-holes Mylar
LSM-40A Round Panel Mounting Paper
LSM-40M/N Round Panel Mounting Mylar
LSM-50F Round Panel Mounting Paper
LSM-50M/NO-B Round Flange with through-holes Mylar
LSM-57A Round Panel Mounting Paper
LSM-O4171-A Rectangular Frame with trough-holes Paper
LSM-66A Round Panel Mounting Paper
LSM-66F Round Panel Mounting Paper
LSM-77A Round Panel Mounting Paper
LSM-104F/SQ Round Frame with trough-holes Paper
Technical Specifications

Part No. Z Pnom. Pmax. FR SPL F TO
  [�?�] [W] [W] [kHz] [dB] [kHz] [°C]
LSM-20M/N 8 0,3 0,5 0,56 89 F0...6 -20...+60
LSF-28M/NT 16 0,1 0,2 0,6 91 F0...7 -20...+65
LSM-28M/NT 8 0,8 1,5 0,4 85 0,22...20 -20...+50
LSM-S19K 8 1 2 0,5 87 F0...20 -20...+60
LSM-36M/B 8 1 1,5 0,4 85 F0...20 -20...+60
LSF-28M/NT-B 8 2,0 3 0,62 92 F0...12 -20...+65
LSM-40A 8 0,1 0,2 0,7 88 F0...5 -20...+60
LSM-40M/N 8 1 1,5 0,3 86 F0...20 -40...+85
LSM-50F 8 0,2 0,5 0,45 84 F0...4 -20...+60
LSM-50M/NO-B 8 0,5 1 0,32 87 F0...20 -20...+60
LSM-57A 8 0,25 0,5 0,45 85 F0...4 -20...+60
LSM-O4171-A 8 3 5 0,3 83 F0...20 -20...+60
LSM-66A 8 0,3 0,5 0,35 84 F0...3,5 -20...+60
LSM-66F 8 0,5 1 0,35 88 F0...4 -20...+60
LSM-77A 8 1 1,5 0,26 83 F0...12 -20...+60
LSM-104F/SQ 8 3 5 0,15 90 F0...8 -20...+60
Z = Impedance (±15%), Pnom. = Power, nominal, Pmax. = Power, max., FR = Resonant Frequency (±20%), SPL= Sound Pressure Level (±3dB), F = Frequency Range, TO = Operating Temperature Range
