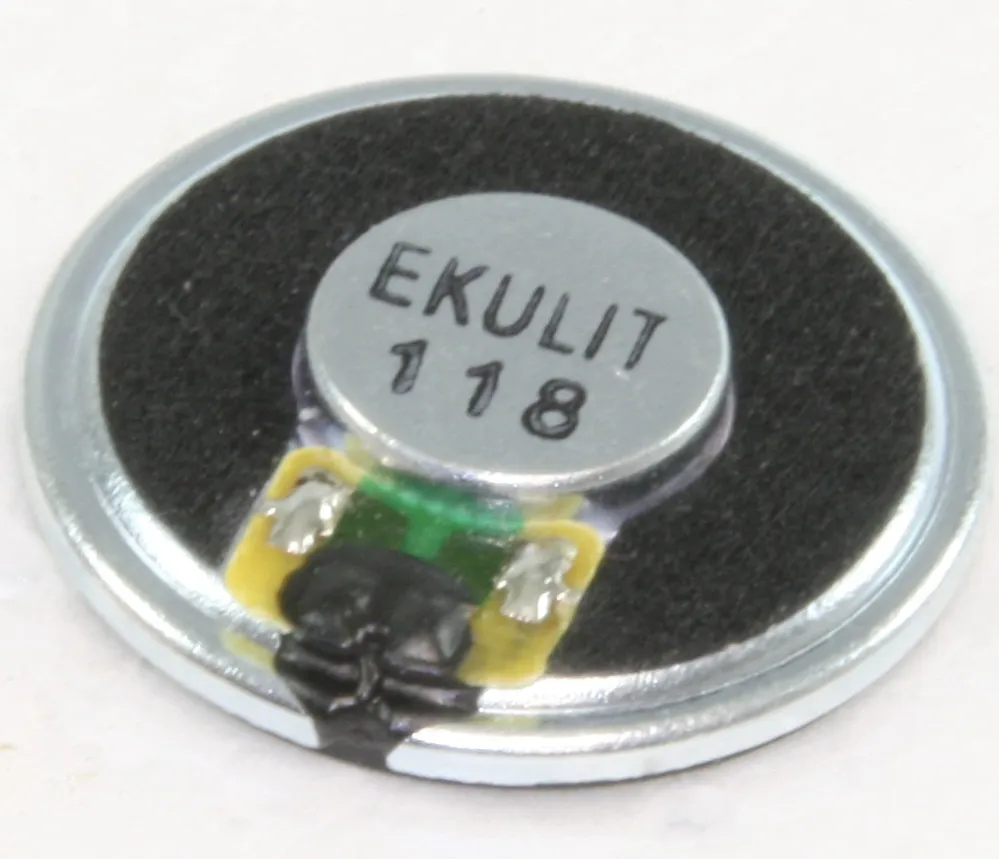

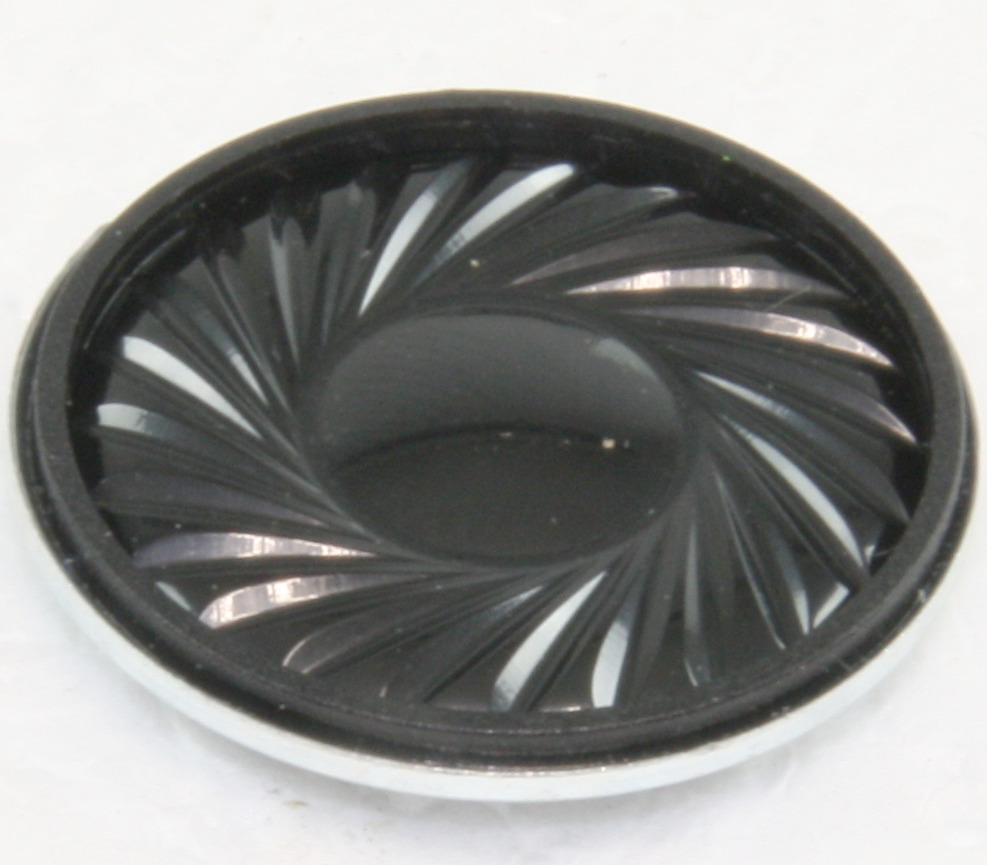

Mini Højttaler 0,8W 8 Ohm Ø28mm
Varenummer:
132-114
Varekode:
LSM-28M/NT
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: H1731
EKULIT Plastic Loudspeaker (Mylar)
Series: LSF, LSM
| LSF-S1511K |
 |
| Features |
| • Micro speaker with high power (1W) • Dimensions: 11x15x3,4mm |
|
| Technical Specifications |
|
|||||||||||||||||||
| Max. Impendance: | 8W (±15%) | Rated Power: | 0,5W | Max. Power: | 1,0W | Resonant Frequency: | 650Hz (±20%) | Sound Pressure Level: | 85dB (±3) | Frequency Range: | F0...20.000Hz | Operating Temperature: | -25...+60°C | Storage Temperature: | -30...+70°C | Weight: | 1,5g | ||
|
|||||||||||||||||||
| LSF-27M/SC |
|
| Features |
| • Plastic loudspeaker with Mylar dome • Dimensions: Ø27x5,5mm • Use: for voice transmission as well as call and beeper |
|
| Technical Specifications |
|
|||||||||||||||||
| Max. Impendance: | 32W (±15%) | Rated Power: | 0,3W | Max. Power: | 0,1W | Resonant Frequency: | 280Hz (±20%) | Sound Pressure Level: | 121dB (±3) | Frequency Range: | 20...2.200Hz | Operating Temperature: | -25...+50°C | Storage Temperature: | -25...+60°C | ||
|
|||||||||||||||||
| LSF-28M/NT |
|
| Features |
| • Plastic loudspeaker with Mylar dome • Very flat loudspeaker with very good frequency response • Dimensions: Ø28x5,7mm |
|
| Technical Specifications |
|
|||||||||||||||||
| Max. Impendance: | 8W (±15%) | Rated Power: | 0,8W | Max. Power: | 1,5W | Resonant Frequency: | 400Hz (±20%) | Sound Pressure Level: | 85dB (±3) | Frequency Range: | 220...20.000Hz | Operating Temperature: | -25...+50°C | Storage Temperature: | -25...+60°C | ||
|
|||||||||||||||||
| LSM-50M/N |
|
| Features |
| • Compact plastic loudspeaker with Mylar dome • Dimensions: Ø50x10,8mm |
|
| Technical Specifications |
|
|||||||||||||||||
| Max. Impendance: | 8W (±15%) | Rated Power: | 0,5W | Max. Power: | 0,7W | Resonant Frequency: | 500Hz (±20%) | Sound Pressure Level: | 90dB (±3) | Frequency Range: | F0...4.500Hz | Operating Temperature: | -20...+60°C | Storage Temperature: | -30...+70°C | ||
|
|||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Karl-Heinz Mauz http://www.ekulit.de |
|
Stregkode:
132114
Intern reference:
132114
Varekode:
LSM-28M/NT
