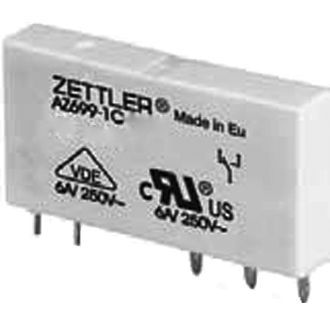

Relay SPDT 5V 6A 147R
Varenummer:
129-800
Varekode:
AZ699-1C-5DEA
Vægt:
40 g
Lagerstatus:
Ikke på lager
Erstatter V23092-A1905-A301
Press release involving the AZ6991:
- AZ6991 Series Subminiature Slim Package, High Sensitivity 6 Amp Power Relay
Features:

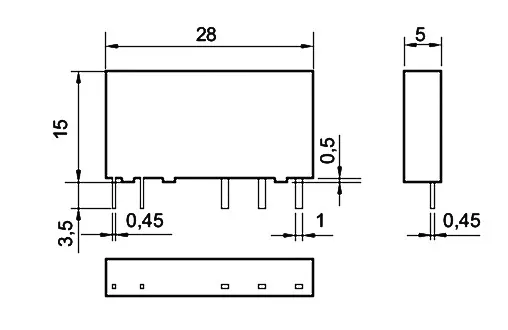

- Extremely small footprint (only 0.22 sq in.)
- Thin vertical profile only 0.196 in. wide
- 6 Amp switching capability
- Isolation spacing greater than 8 mm
- Dielectric strength of 4000 Vrms
- High sensitivity
- UL, CUR approvals
| Epoxy Sealed | Contact Form | Contact Rating | Coil Voltages |
| Yes | 1 Form A and C | 6 A at 277 VAC 6 A at 30 VDC R300 Pilot Duty |
3 thru 60 VDC |
| Coil Power at Pickup Voltage (typical) | Dielectric Strength (at sea level for 1 min.) |
||
| 95 mW | Contact to Coil: 4000 Vrms Between Open Contacts: 1000 Vrms |
||
| Typical Life - Electrical | Typical Life - Mechanical | ||
| 30,000 operations at rated load | 10,000,000 operations | ||
| Terminals PC | Terminals Solder / Plug-In |
Terminals Bracket Mount | Approvals |
| THT | No | No | UL/CUR |
Stregkode:
231-2361
Intern reference:
129800
Varekode:
AZ699-1C-5DEA
