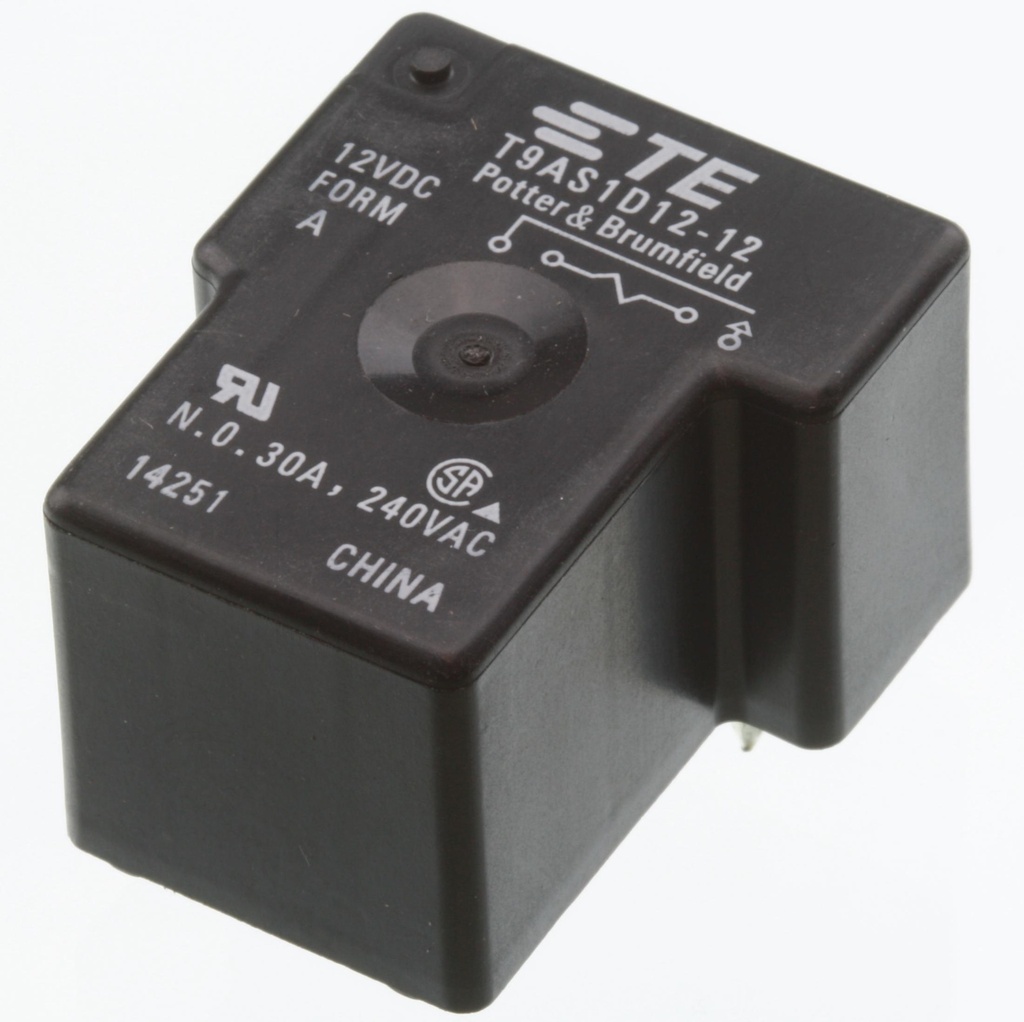

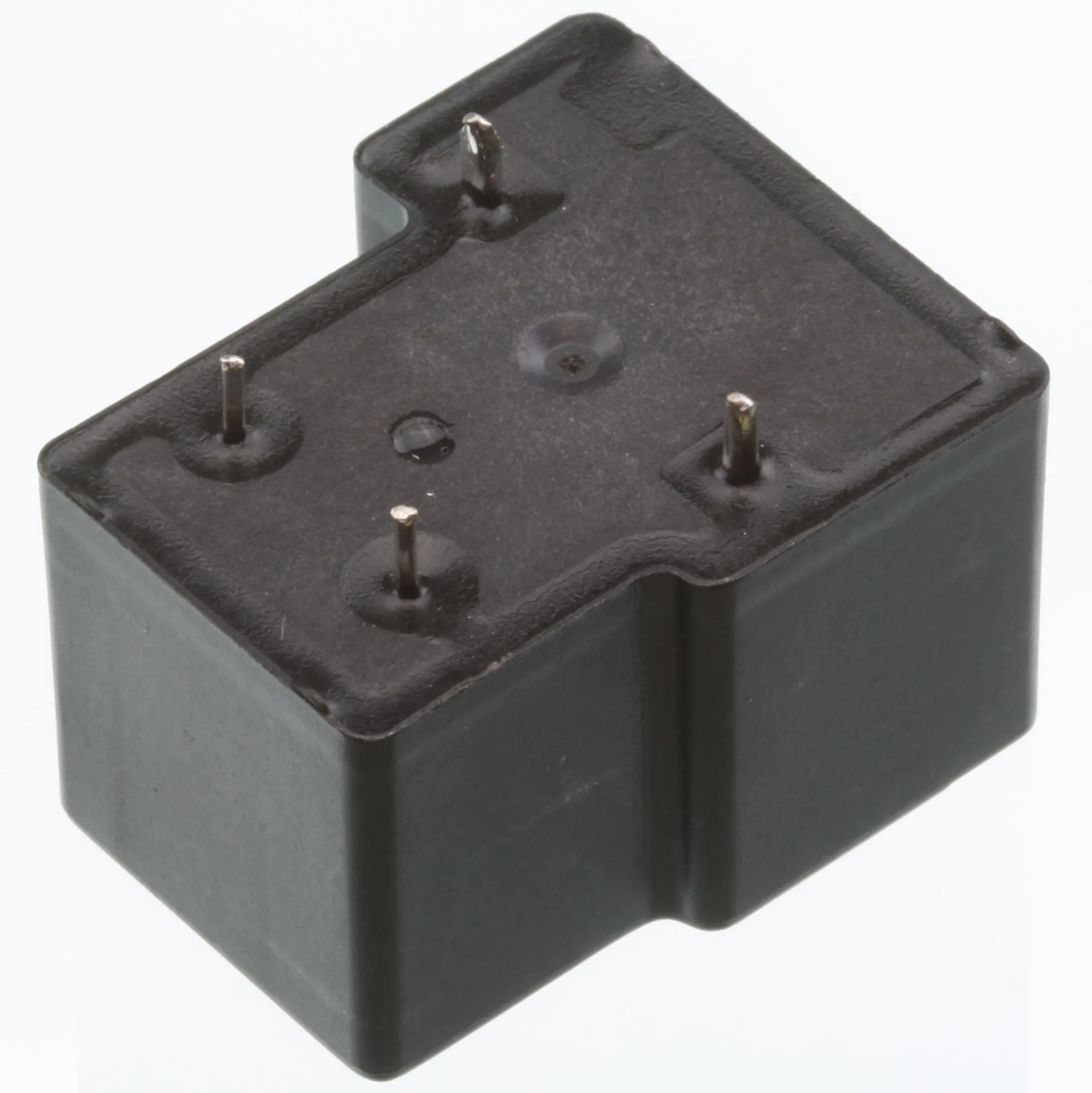

PCB RELAY 1 x slutte SPST 30A 12VDC
Varenummer:
129-733
Varekode:
T9AS1D12-12
Vægt:
30 g
Lagerstatus:
Ikke på lager
- PCB RELAY, CONTACTS SPST
- Product Range: TE - T9A Series
- Coil Voltage: 12VDC
- Contact Current: 30A
- Contact Voltage VAC: 240V
- Contact Configuration: (Not Available)
- Coil Resistance: 144ohm
- Relay Mounting: Through Hole
- Coil Current: 83mA
- Coil Type: DC Monostable
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 30A
- Contact Current Max: 30A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 240V
- External Depth: 27.9mm
- External Height: 32.5mm
- External Length / Height: 32.5mm
- External Width: 27.4mm
- Mounting Type: PCB
- No. of Poles: 1
- Nom Operating Power: 1W
- Relay Type: General Purpose
- Series: T9A
Stregkode:
171-9317
Intern reference:
129733
Varekode:
T9AS1D12-12
