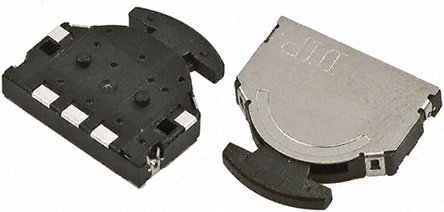

MULTICOMP - NAVIGATION SWITCH, 3WAY, SMD
Varenummer:
129-121
Varekode:
MCPL3-BC-V
Vægt:
0 g
Lagerstatus:
Ikke på lager
- NAVIGATION SWITCH, 3WAY, SMD
-
Operating Force:
200gf - Contact Voltage DC Nom: 5V
- Contact Current Max: 1mA
- Actuator Style: Push and Lever
- Switch Terminals: Solder
- No. of Directions: 3
- SVHC: No SVHC (20-Jun-2013)
- Actuator / Cap Colour: Black
- Contact Configuration: SPST
-
Contact Current DC Max: 10mA - Contact Resistance Max: 500ohm
- Contact Voltage DC Max: 5V
- Current Rating: 1mA
- Dielectric Strength VAC: 100VAC
- External Depth: 11.8mm
- External Length / Height: 2.95mm
- External Width: 11.8mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 100Mohm
-
Insulation Resistance Voltage:
100VDC
- Mounting Type: PCB Surface Mount
- No. of Electrical Operations: 100000
- No. of Poles: 1
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Return Force Min: 70gf
- Series: MCPL3
- Terminal Type: Surface Mount
-
Voltage Rating V DC:
5V
Stregkode:
692-6995
Intern reference:
129121
Varekode:
MCPL3-BC-V
