SI-N 150V 15A 100W M-37

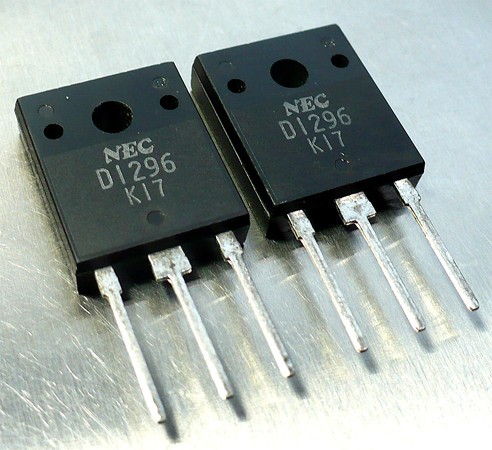

Type Designator: 2SD1296

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 100

Maximum collector-base voltage |Ucb|, V: 150

Maximum collector-emitter voltage |Uce|, V: 0

Maximum emitter-base voltage |Ueb|, V: 0

Maximum collector current |Ic max|, A: 15

Maximum junction temperature (Tj), °C: 150

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 12000

Noise Figure, dB: -

Package of 2SD1296 transistor: M-37
