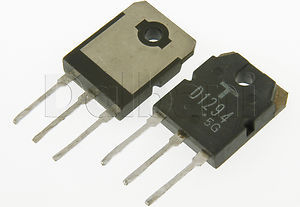

SI-N 60V 5A 80W TO-3P

Type Designator: 2SD1294

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 80

Maximum collector-base voltage |Ucb|, V: 60

Maximum collector-emitter voltage |Uce|, V: 60

Maximum emitter-base voltage |Ueb|, V: 6

Maximum collector current |Ic max|, A: 5

Maximum junction temperature (Tj), °C: 150

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 10000

Noise Figure, dB: -

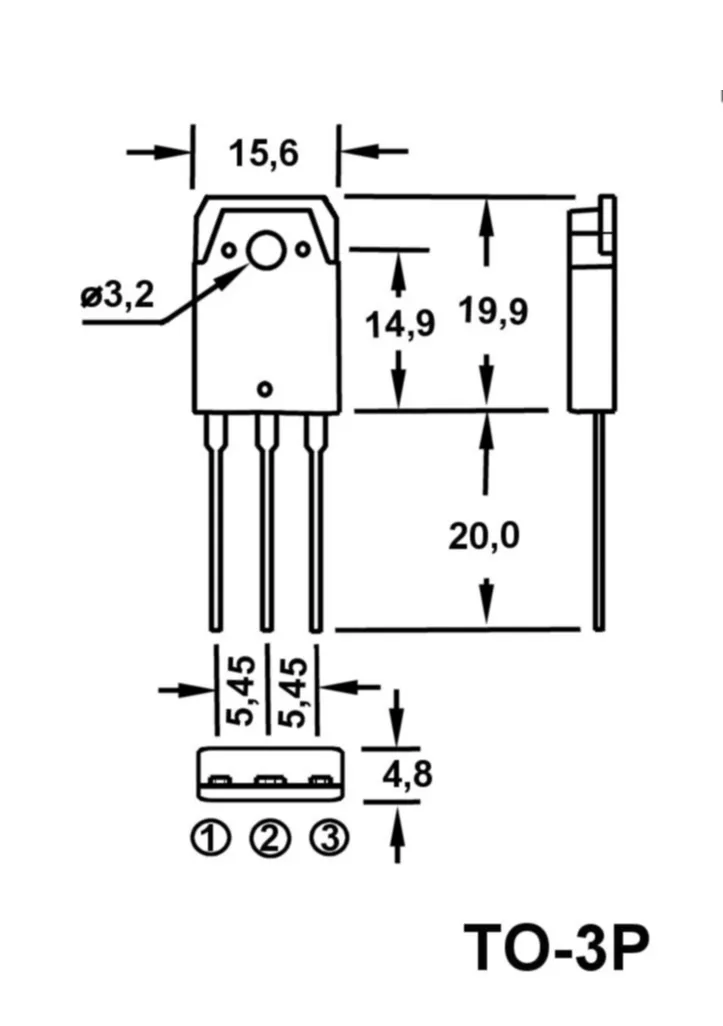

Package of 2SD1294 transistor: TO-3P
