SI-N 300V 7A 40W TO-220

Type Designator: 2SD1163

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 40

Maximum collector-base voltage |Ucb|, V: 300

Maximum collector-emitter voltage |Uce|, V: 120

Maximum emitter-base voltage |Ueb|, V: 6

Maximum collector current |Ic max|, A: 7

Maximum junction temperature (Tj), °C: 150

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 25

Noise Figure, dB: -

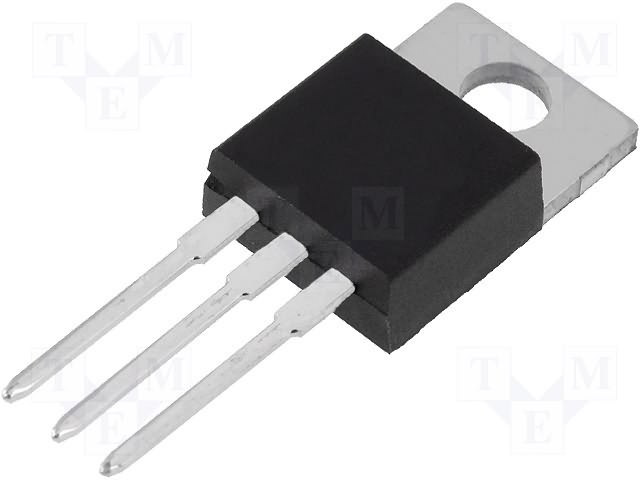

Package of 2SD1163 transistor: TO220
