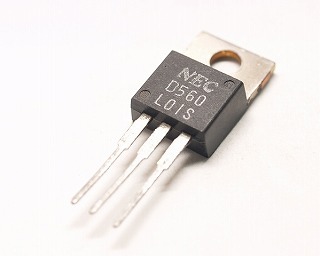

SI-N 150V 5A 30W TO-220

Type Designator: 2SD560

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 30

Maximum collector-base voltage |Ucb|, V: 150

Maximum collector-emitter voltage |Uce|, V: 100

Maximum emitter-base voltage |Ueb|, V: 7

Maximum collector current |Ic max|, A: 5

Maximum junction temperature (Tj), °C: 175

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 3000

Noise Figure, dB: -

Package of 2SD560 transistor: TO220
