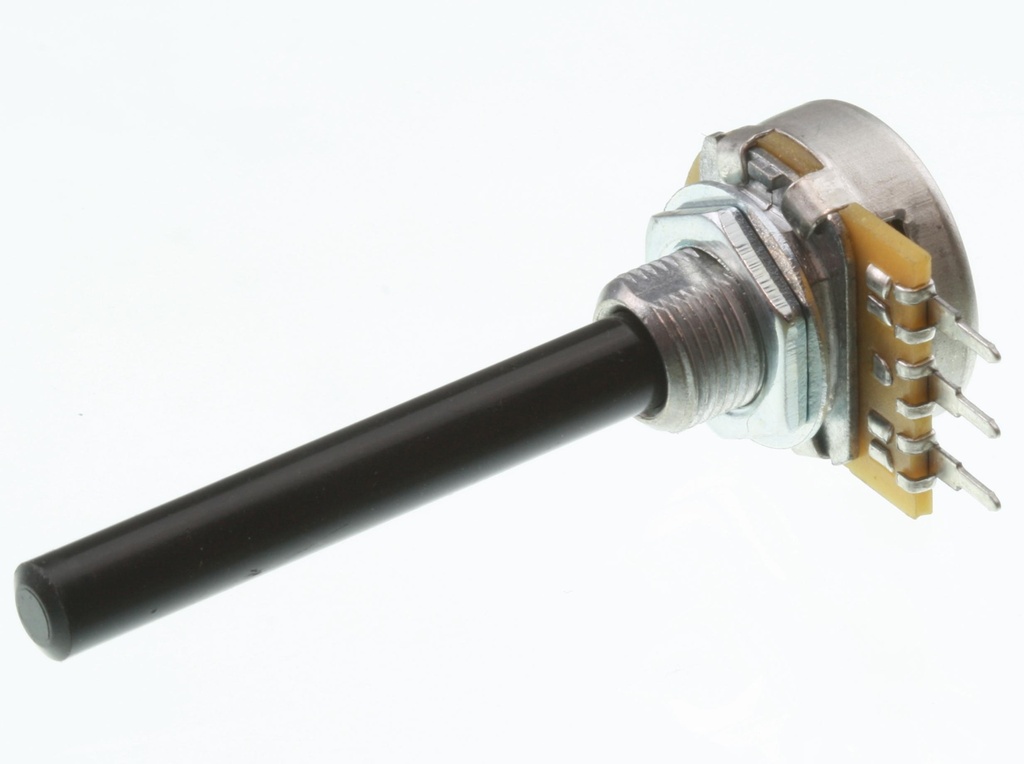

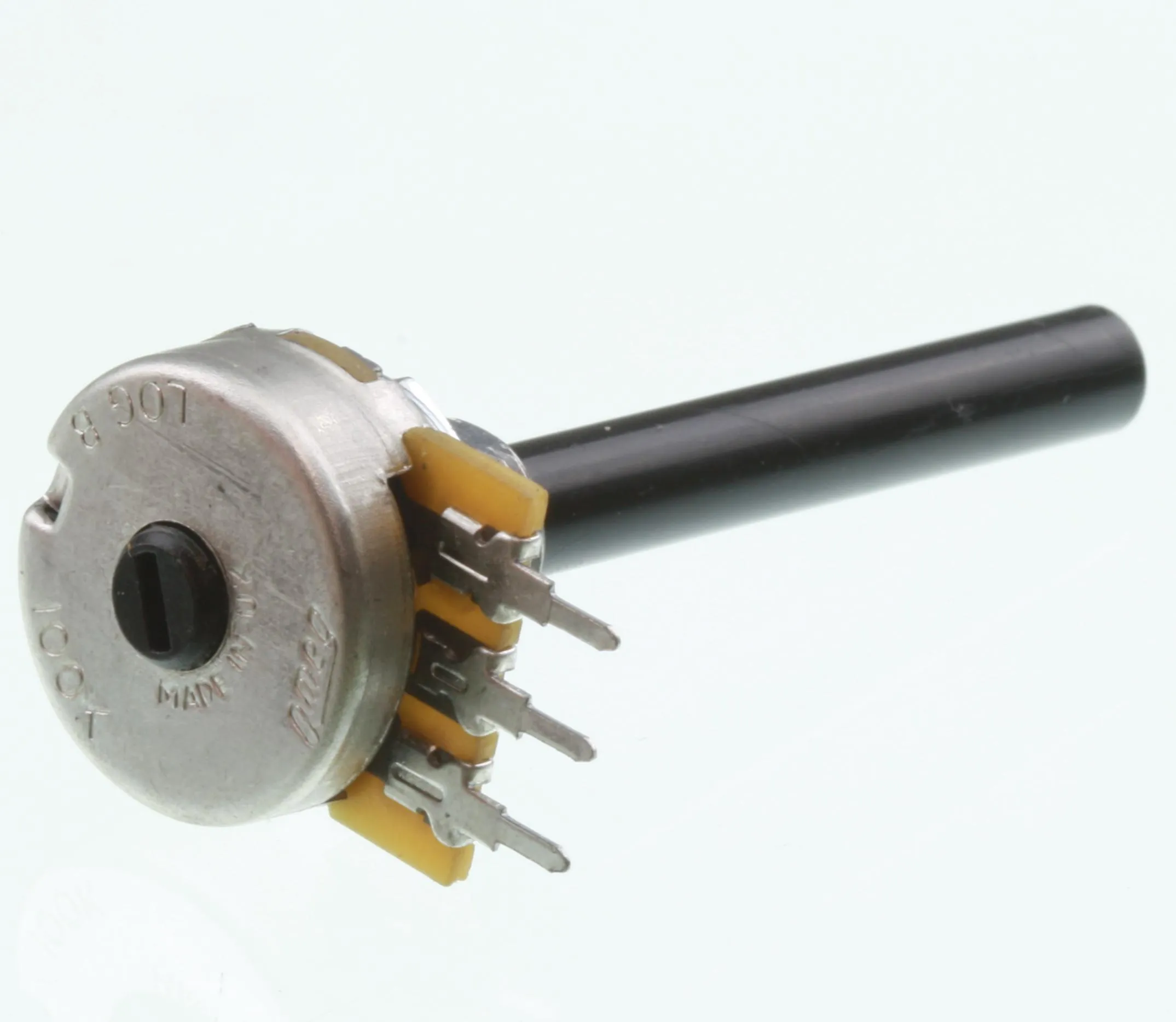

Potentiometer 20/6 Mono Log 22K
Varenummer:
127-686
Varekode:
P20MGK022
Vægt:
0 g
Lagerstatus:
Ikke på lager
Electrical Specifications
 |
|
| Rated Power (TU=40°C): | 0,4W |
| Operating Voltage, Max.: | 500V DC |
| Insulation Voltage: | 1000V AC |
| Insulation Resistance | 5GW |
| Resistance Tolerance | |
| 100W...1MW: | 20% |
| >1MW: | 30% |
|
|
| Mechanical Specifications |
|
|
| Rotation Angle (Mechanical): | 300° ±5° |
| Operating Torque: | 0,4...1,5Ncm |
| Stop Strength, Max.: | 80Ncm |
| Weight, approx.: | 11g |
|
|
| Dimensions |
|
|
| Plastic Spindle | |
| Dimensions (D): | 6,0mm |
| Length (L): | 50,0mm |
| Bush (C): | 8,0mm |
| Spindle (A): | M10x0,75 |
| PC Terminations: | 5/5 (10)mm |
|
|
| Manufacturer |
 |
Stregkode:
5705412138079
Intern reference:
127686
Varekode:
P20MGK022
