NPN.300V.0,18A.12W.TO-220AC

Type Designator: 2SC1506

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 12

Maximum collector-base voltage |Ucb|, V: 300

Maximum collector-emitter voltage |Uce|, V: 270

Maximum emitter-base voltage |Ueb|, V: 6

Maximum collector current |Ic max|, A: 0.18

Maximum junction temperature (Tj), °C: 175

Transition frequency (ft), MHz: 25

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 50

Noise Figure, dB: -

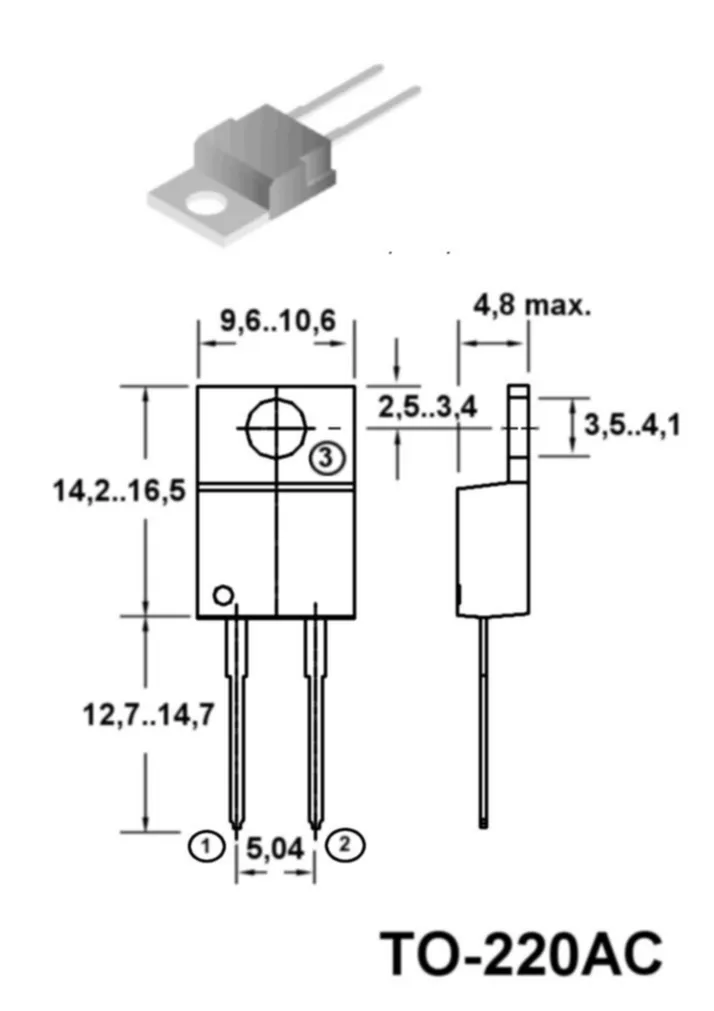

Package of 2SC1506 transistor: TO22AC
