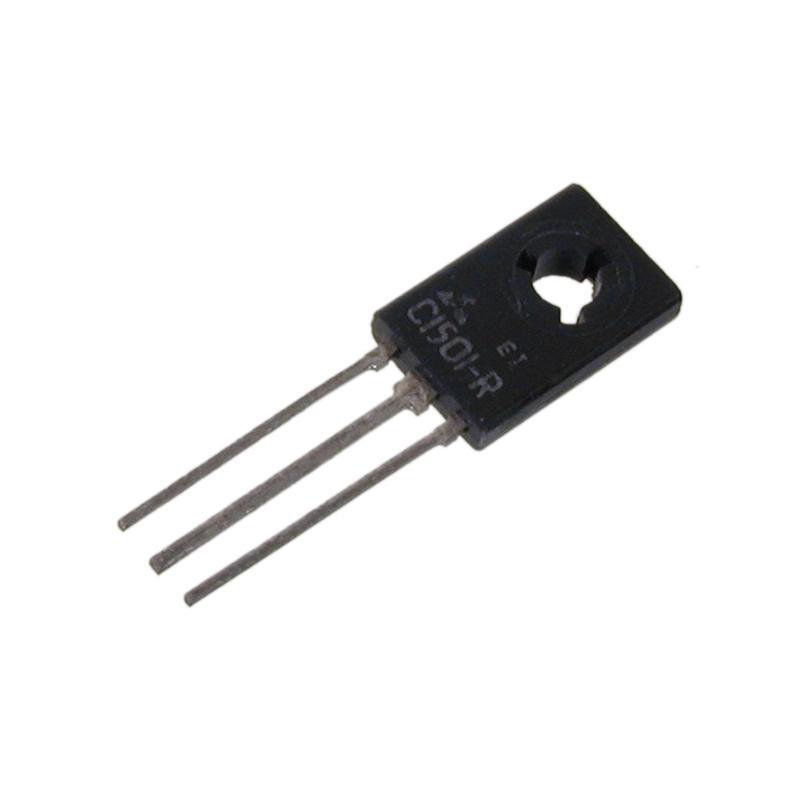

NPN.300V.0,15A.9W.TO-126

Type Designator: 2SC1501

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 9

Maximum collector-base voltage |Ucb|, V: 300

Maximum collector-emitter voltage |Uce|, V: 0

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 0.15

Maximum junction temperature (Tj), °C: 175

Transition frequency (ft), MHz: 27

Collector capacitance (Cc), pF: 16

Forward current transfer ratio (hFE), min: 30

Noise Figure, dB: -

Package of 2SC1501 transistor: TO-126
