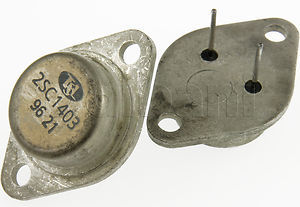

NPN.160V.8A.70W.TO-3

Type Designator: 2SC1403

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 70

Maximum collector-base voltage |Ucb|, V: 160

Maximum collector-emitter voltage |Uce|, V: 100

Maximum emitter-base voltage |Ueb|, V: 6

Maximum collector current |Ic max|, A: 8

Maximum junction temperature (Tj), °C: 150

Transition frequency (ft), MHz: 5

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 30

Noise Figure, dB: -

Package of 2SC1403 transistor: TO3
