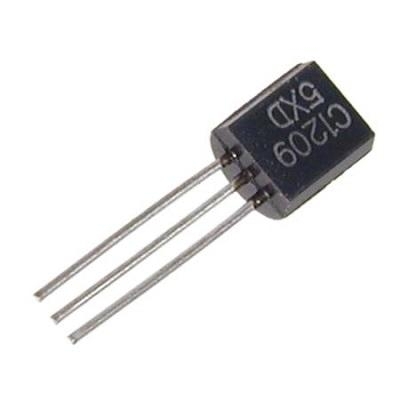

NPN.25V.0,5A.0,5W.TO-92
Type Designator: 2SC1209
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.5
Maximum collector-base voltage |Ucb|, V: 25
Maximum collector-emitter voltage |Uce|, V: 20
Maximum emitter-base voltage |Ueb|, V: 4
Maximum collector current |Ic max|, A: 0.5
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 75
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 35
Noise Figure, dB: -
Package of 2SC1209 transistor: TO92
|
ountry:
Japan
|
|
||||
| Identical to | 2SC1209 | ||||
| Similar Tubes |
Normally replaceable-slightly different:
BC338 |
| Base | Wires |
| Description | NPN silicon planar transistor for general purpose. - Text in other languages (may differ) |
| Dimensions (WHD) incl. pins / tip |
5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch |
| Weight | 1 g / 0.04 oz |
| Information source | - - - - - - TTT Steidle 1981 - - - |
