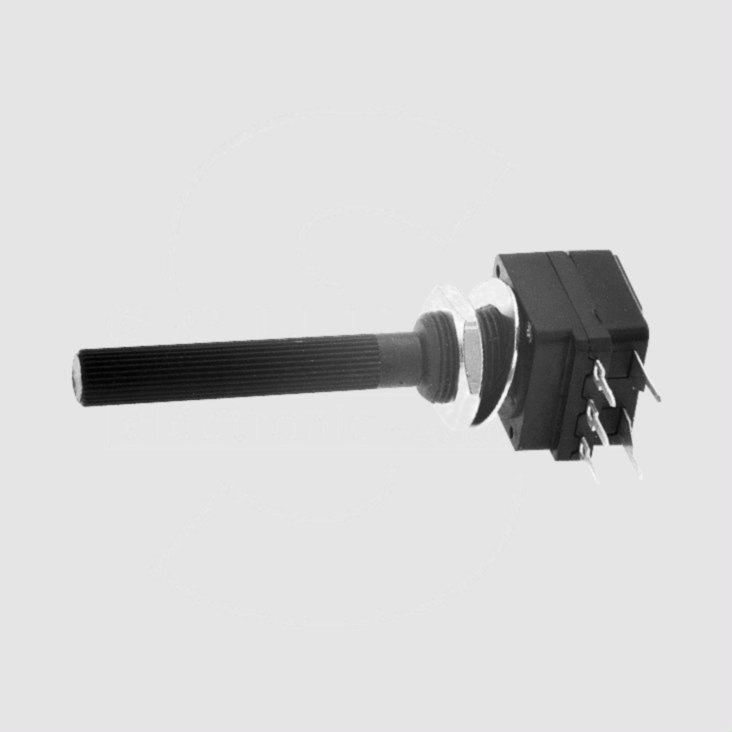

Potentiometer 16/6 Lin Switch 2,5K
Varenummer:
127-271
Varekode:
PC16MSK002,5
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C3127
PIHER Carbon Potentiometers
Series:
PC16MS
Linear (A)
Power: 0,25W
Shaft: Plastic, Ø6mm
Pitch: 5mm
Housing: Ø16mm
|
Technical Specifications |
 |
|||||||||||||||||||||||||||||||||
| Rated Power
(TU = 40°C): |
0,25W | Operating Voltage,
Max.: |
250V DC | Residual Resistance: | "font-family: Symbol;">£1x10-3RN | Resistance Tolerance | 100"font-family: Symbol;">W...1M"font-family: Symbol;">W: | ±20% | >1M"font-family: Symbol;">W: | ±30% | Contact Resistance: | "font-family: Symbol;">10m"font-family: Symbol;">W | Rotation | Mechanical: | 300°
±5° |
Electrical: | 280°
±20° |
Switch | Nominal Current: | 1A/250V AC | Operating Angle: | 30°
±5° |
Operating Torque: | 0,5...1,5Ncm | Stop Strength: | >40Ncm | Temperature Range: | -25...+70°C | |||||
| "20"> |
|||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 "0"> |
| "_blank">http://www.piher.net/ |
|
Stregkode:
127271
Intern reference:
127271
Varekode:
PC16MSK002,5
