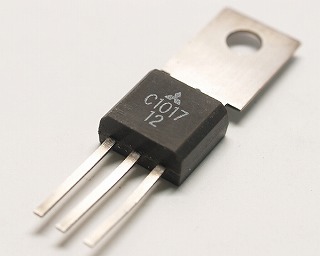

NPN,75V,1A,4W,TO-218

Type Designator: 2SC1017

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 4

Maximum collector-base voltage |Ucb|, V: 75

Maximum collector-emitter voltage |Uce|, V: 0

Maximum emitter-base voltage |Ueb|, V: 4

Maximum collector current |Ic max|, A: 1

Maximum junction temperature (Tj), °C: 175

Transition frequency (ft), MHz: 12

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 20

Noise Figure, dB: -

Package of 2SC1017 transistor: TO218
