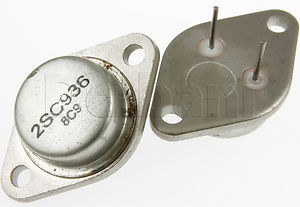

NPN,1000V,1A,22W,TO-3

Type Designator: 2SC936

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 22

Maximum collector-base voltage |Ucb|, V: 1000

Maximum collector-emitter voltage |Uce|, V: 500

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 1

Maximum junction temperature (Tj), °C: 150

Transition frequency (ft), MHz: 3

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 20

Noise Figure, dB: -

Package of 2SC936 transistor: TO3
