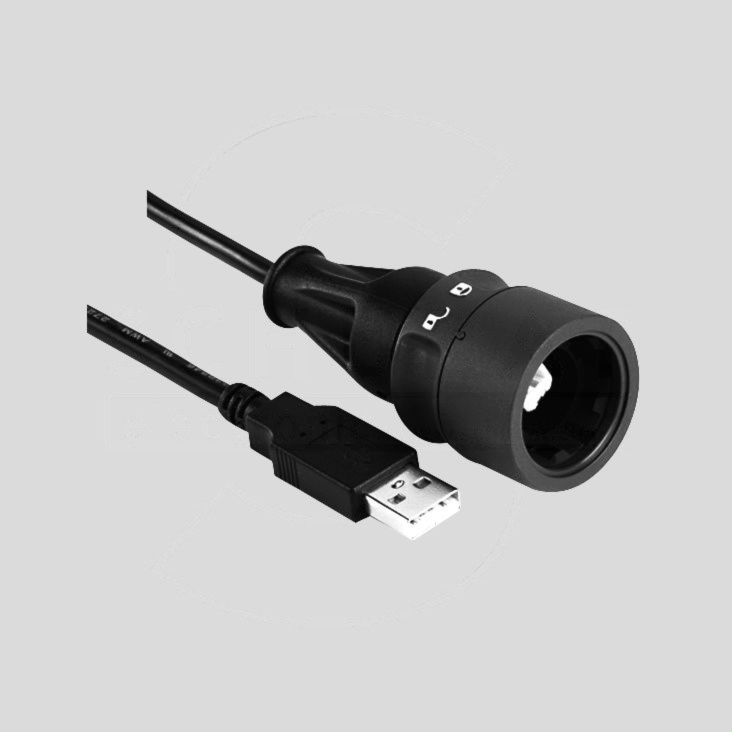

USB Cable Ass. Sealed B/ unsealed A 3m
Varenummer:
127-101
Varekode:
PXP6040-B-3M00
Vægt:
210 g
Lagerstatus:
Ikke på lager
Gruppe: F4271
BULGIN Circular Cable Connector
Series: Buccaneer 6000
with USB and Ethernet Interface
Thermoplastic Housing
Waterproof IP68
BULGIN Circular Cable Connector
Series: Buccaneer 6000
with USB and Ethernet Interface
Thermoplastic Housing
Waterproof IP68
| Features |
| • Flex and front panel mounting connectors • Plastic design of the body • Push-/Pull locking system • 30° rotation lock prevents accidental disconnection • Independent verification of seals (of protection) • Shielded system • Polarization and visual alignment features to check your plugging the connectors • Protection class IP66, IP68 and IP69K (when coupled) |
 |
| PXP6033TP, PXP6033TP-E |
| Ethernet Jack/Connector Coupling |
|
| Features |
| • Sealed by plate • Cat 5e shielded coupler • Suitable for all Flex connector (plastic and metal) • Standard RJ45 finished cable can be plugged into rear • Single hole mounting • Complete with panel sealing • PXP6033TP: Cat 5e coupling • PXP6033TP-E: Cat 5e coupling with earth |
|
| PXP6042-A, PXP6042-B |
| USB Female/Straight Connector |
|
| Features |
| • Protection type A or B USB connector • Front panel mounting • PXP6042-A: Sealed A type at front panel, Default Type B at the back • PXP6042-B: Sealed B type at front panel, Default Type A at the back • Suitable for PXP6040_ and PXP6041_ cable connectors |
|
| PXP6043-A, PXP6043-B |
| USB Female/Straight Connector with 5-way Crimp |
|
| Features |
| • Protection type A or B USB connector • Front panel mounting • PXP6043-A: Sealed A type at front panel, 5-way crimp on the back • PXP6043-B: Sealed B type at front panel, 5-way crimp on the back • Suitable for PXP6040_ and PXP6041_ cable connectors |
|
| PXP6034-B |
| Flex Ethernet Cable Connectors, Rewireable |
|
| Features |
| • With shielded RJ45 connector • Suitable for use with cables of 4 to 7mm in diameter • Suitable for all front panel cable connectors (plastic and metal) |
|
| PXP6037-_M00 |
| Ethernet Cable, Assembled |
|
| Features |
| • IP RJ Buccaneer with shielded RJ45 connector • One-sided connection • Connector with molded cable • Cable type S-FTP • PUR jacket of the cable • Wiring to 568-B • Exceeds EIA / TIA Cat 5e • Standard lengths: 2m, 3m and 5m • Suitable for all front panel cable connectors (plastic and metal) |
|
| PXP6040-A_, PXP6040-B_ |
| One-sided, Sealed USB Cable, assembled |
|
| Features |
| • PXP6040-A_: Enclosure type A USB to standard USB type B • PXP6040-B_: Enclosure type B USB to standard USB type A • Standard lengths: 2m, 3m and 5m • Suitable for all front panel cable connectors |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.bulgin.de |
|
Stregkode:
127101
Intern reference:
127101
Varekode:
PXP6040-B-3M00
