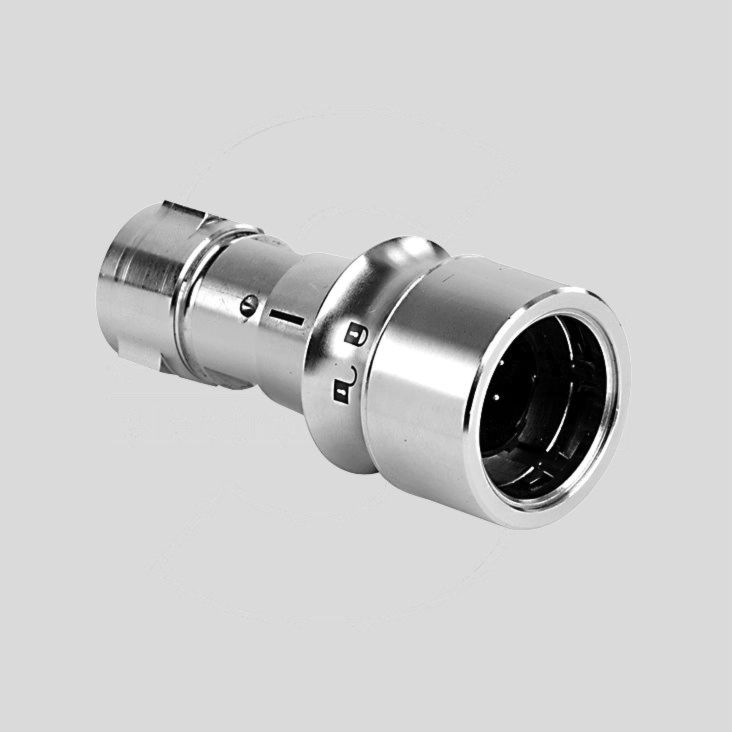

Metal Flex Conn. Female 22-Pole Crimp
Varenummer:
127-029
Varekode:
PXM6010-22SCR-0910
Vægt:
140 g
Lagerstatus:
Ikke på lager
Gruppe: F4268
BULGIN Circular Cable Connector
Series: Buccaneer 6000
Metal Housing
Waterproof IP68
BULGIN Circular Cable Connector
Series: Buccaneer 6000
Metal Housing
Waterproof IP68
| Features |
| • Flex, in-line flex and front panel cable connectors • All-metal models of the body: nickel-plated brass • 2, 3, 8,16 and 22 pole - with up to 16A and 277V rated current • Push-/Pull locking system • Shockproof contacts • 30° rotation lock prevents accidental disconnection • Polarizazion and visual orientation features help to correct plug connectors togehter • Protection class IP66, IP68 and IP69K (when coupled) • Sealing caps must be ordered separately, see note • Solder contacts must be ordered separately, see note |
 |
| Technical Specifications |
| |
| Housing Material: | Nickel-plated brass |
| Contact Material: | Nickel-plated brass |
| Rated Current1) | |
| 2 pole: | 16A |
| 3 pole: | 12A |
| 8 pole: | 10A |
| 16, 22 pole: | 3A |
| Rated Voltage | |
| 2, 3, 8 pole: | 277V DC |
| 16, 22 pole: | 60V AC |
| Contact Accommodation, Max. | 10mW |
| Insulation Resistance, Min. (@500V DC): | 106MW |
| Breakdown Voltage, AC, Min. | |
| 2 pole: | 10kV |
| 3 pole: | 8kV |
| 8, 16, 22 pole: | 5kV |
| Operating Temperature Range: | -40...+120°C |
| Degree of Protection2): | IP66, IP68, IP69K |
| 1) according to CCC, UL,and VDE (pending), 2) when coupled | |
| |
| Note |
| • You will find suitable sealing caps in product group F4269 • You will find suitable solder contacts in product group F4273 • You will find suitable application/extraction tool in product group F4274 |
|
| Approvals |
Pending:  CCC |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.bulgin.de |
|
Stregkode:
127029
Intern reference:
127029
Varekode:
PXM6010-22SCR-0910
