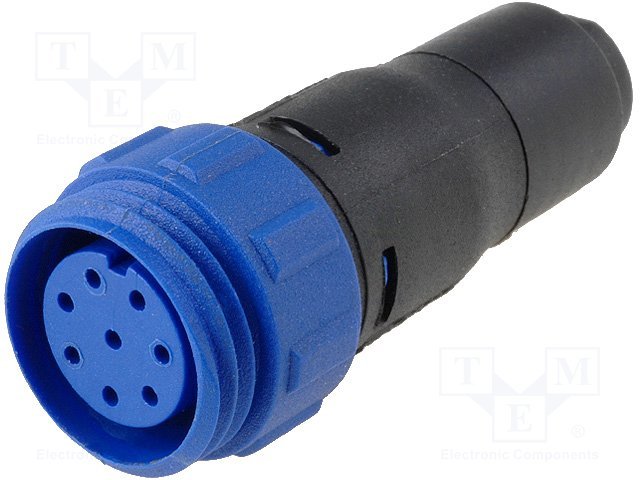

In-Line Flex Cable Conn. Female 8-Pole
Varenummer:
126-961
Varekode:
PX0411-08S-6065
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: F4261
BULGIN Circular Cable Connector
Series: Buccaneer 400
Watertight IP68
BULGIN Circular Cable Connector
Series: Buccaneer 400
Watertight IP68
| Features |
| • For cables with 3...7mm mounting diameter • 2, 3, 4, 6, 8, 10 and 12 pole • Plug and socket versions • Solder contacts must be ordered separately, see note |
 |
| Technical Specifications |
| |
| Housing Material: | Polyamide (VL94-V0) |
| Contact Material: | Copper-alloy, Gold-plated |
| Rated Current | |
| 2, 3 pole: | 8A |
| 4, 6, 8 pole: | 5A |
| 10, 12 pole: | 1A |
| Rated Voltage | |
| 2, 3 pole: | 250V AC/DC |
| 4, 6, 8 pole: | 125V AC/DC |
| 10, 12 pole: | 50V AC/DC |
| Contact Resistance, Max.: | 5mW |
| Insulation Resistance, Min. (@500V DC): | 106MW |
| Breakdown Voltage, AC: | 2,5kV |
| Operating Temperature Range: | -40...+80°C |
| Degree of Protection: | IP68, EN 60529 |
| |
| Note |
| • You will find suitable sealing cap PX0481in product group F4262. • You will find suitable solder contacts in product group F4263. • You will find suitable insertion/extraction tools in product group F4274. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.bulgin.de |
|
Stregkode:
126961
Intern reference:
126961
Varekode:
PX0411-08S-6065
