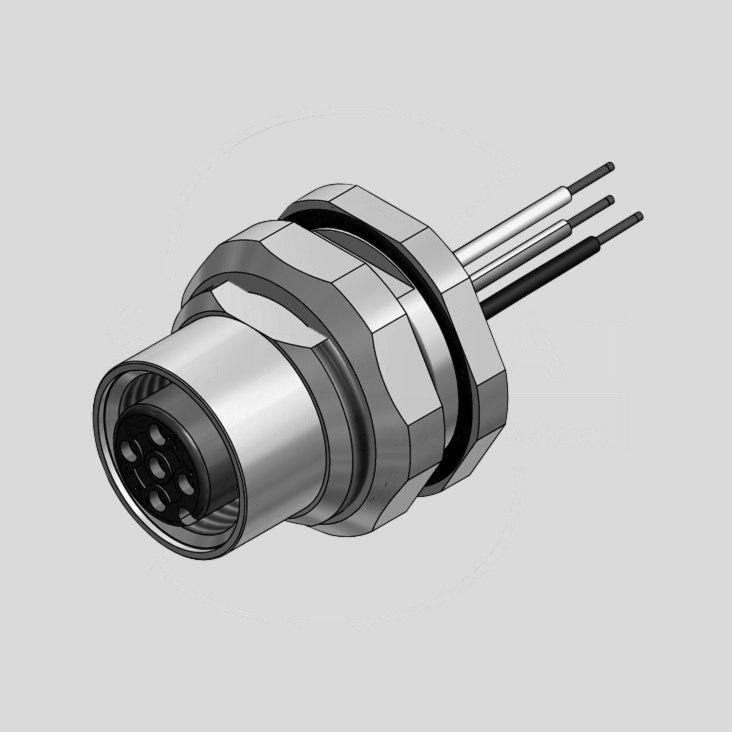

Female Socket with Wires 4-Pole Back
Varenummer:
126-915
Varekode:
SAL-12-FKH4-0.5
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe: F4247
CONEC Panel Connector with Screw Locking
with Wire
Series: SAL M12x1
Cable Mounting
CONEC Panel Connector with Screw Locking
with Wire
Series: SAL M12x1
Cable Mounting
| Features |
| • Cable connectors with screw locking • Fixing thread M12x1 • Panel mounting with M16-1,5-thead (the fixing nuts must be ordered separately, see Note) • Cable PVC, AWG24, UL • Cable length: 0,5m |
 |
| Technical Specifications |
| |
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Panel Connector: | M16x1,5 |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+80°C |
| Rated Voltage | |
| 4-polig: | 250V |
| 5-polig: | 60V |
| Rated Current (40°C): | 4A |
| Insulation Resistance, Max.: | ³100MW |
| Mating Cycles: | ³100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni-plated, Au-plated |
| 1) in Mated Condition | |
| |
| Note |
| • Suitable fixing nuts with M8x0,5-thread, see the product group F4249 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
126915
Intern reference:
126915
Varekode:
SAL-12-FKH4-0.5
